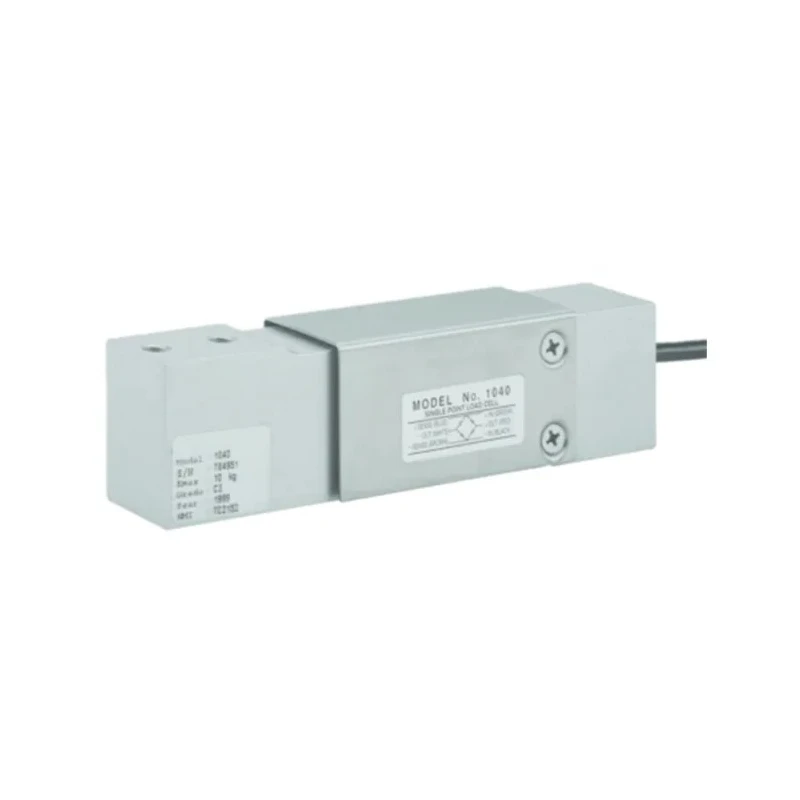

Tedea Huntleigh Model 1040 Series Low Profile Load Cell, Compression Force, 5 kg Min, 15 kg Max, Aluminium 01040-015K-C3-56X
Specifications
| Country of Origin | India |
|---|---|
| Brand | Tedea Huntleigh |
| Length | 40mm |
| Model | 01040-015K-C3-56X |
| Depth | 29.5mm |
| IP Rating | IP67 |
| Sensor Type | Low Profile |
| Width | 29.5mm |
| Mount Type | Direct |
| Housing Material | Aluminium |
| Series | Model 1040 |
| Maximum Operating Temperature | 70°C |
| Minimum Operating Temperature | -20°C |
| Terminal type | Cable |
| Maximum dc Voltage | 15V dc |
| Standards/Approvals | RoHS Compliant, OIML R60, NTEP |
| Maximum AC Voltage | 15V ac |
| Force Measured | Compression |
| Maximum Force/Load Measurement | 15kg |
| Minimum Force/Load Measurement | 5kg |
Key Features
- This aluminium load cell features a compact 29.5mm x 29.5mm x 40mm housing design suitable for bench and retail scales.
- It offers IP67 protection rating ensuring durability in industrial and laboratory environments.
- The sensor is a low profile type with cable terminal for direct mounting applications.
- Operating temperature range extends from -20°C to 70°C to accommodate diverse operating conditions.
- Includes additional sense wires for complete compensation of lead resistance and temperature changes.
- Compliant with RoHS, OIML R60, and NTEP standards, ensuring quality and accuracy.
- Ideal for applications such as bench scales, counting scales, and grocery scales.
Product Description
Tedea Huntleigh 01040-015K-C3-56X Model 1040 Series Low Profile Load Cell is engineered for precise compression force measurement with a minimum capacity of 5 kilograms and maximum capacity of 15 kilograms. This load cell is fabricated with anodized aluminium housing, offering robust structural integrity within a small form factor measuring 29.5 mm width, 29.5 mm depth, and 40 mm length.
The load cell is designed as a single-point sensor suitable for direct mounting on low-cost weighing platforms like bench scales and counting scales, supporting platforms up to 400 x 400 mm. Its low profile and compact dimensions make it an excellent choice for retail applications where space-saving and accuracy are paramount.
Featuring a cable terminal and a protective IP67 rating, this device is well-protected against dust and water ingress, making it reliable for industrial, laboratory, and commercial environments. The operating temperature range is from -20°C to 70°C, accommodating various environmental conditions.
This load cell includes two additional sense wires to feedback the exact voltage reaching the sensor, compensating for lead resistance changes caused by temperature fluctuations or cable extension. Compliance with RoHS, OIML R60, and NTEP certifications assures adherence to international quality and performance standards.
Common applications include bench scales, grocery scales, and counting scales in industrial, laboratory, and commercial use cases. This aluminium low profile load cell ensures accurate compression force measurements. The unit supports direct mounting on scales up to 400 x 400 mm platform size.
Additional sense wires provide enhanced compensation for temperature and cable effects. Durable construction with IP67 rating offers protection against dust and moisture. Suitable across industrial, laboratory, and commercial weighing applications.
Explore more Tedea Huntleigh Load Cells and sensors in the EnvMart Sensors category for precision measurement solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum load capacity of this load cell is 15 kilograms.
This load cell operates within a temperature range of -20°C to 70°C.
The dimensions of this load cell are 29.5 mm in width, 29.5 mm in depth, and 40 mm in length.
The Model 1040 is a low profile load cell designed for compression force measurement.
This load cell has an IP67 rating, providing protection against dust and water ingress.
The load cell is constructed from anodized aluminium, ensuring robust structural integrity.
This model is designed for direct mounting on platforms up to 400 x 400 mm in size.
The maximum DC and AC voltage for this load cell is 15V.
It is compliant with RoHS, OIML R60, and NTEP standards.
Common applications include bench scales, grocery scales, and counting scales in various environments.
Yes, it includes additional sense wires for compensating lead resistance and temperature changes.
The country of origin for this load cell is India.
