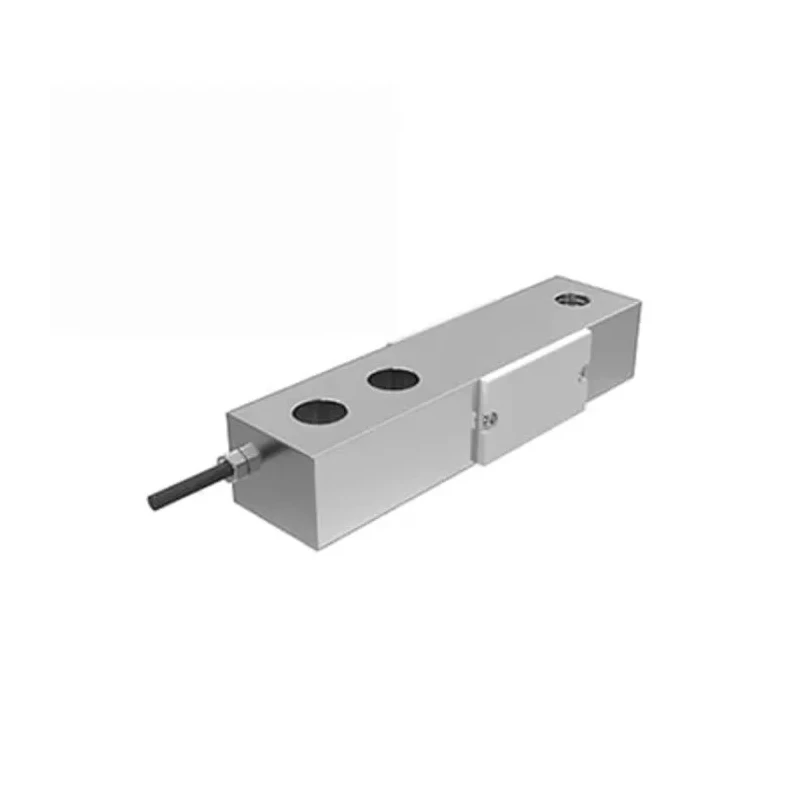

Tedea Huntleigh Low Profile Shear Beam Load Cell 125 kg to 500 kg Compression Measurement 32x32x32 mm IP67 65023-500K-C3-01F
Specifications
| Country of Origin | India |
|---|---|
| Brand | Tedea Huntleigh |
| Length | 32mm |
| Model | 65023-500K-C3-01F |
| Depth | 32mm |
| IP Rating | IP67 |
| Sensor Type | Low Profile |
| Width | 32mm |
| Housing Material | Alloy Tool Steel |
| Series | Model 65023 |
| Maximum Operating Temperature | 65°C |
| Minimum Operating Temperature | -18°C |
| Terminal type | Cable |
| Standards/Approvals | OIML, NTEP |
| Force Measured | Compression |
| Maximum Force/Load Measurement | 500kg |
| Minimum Force/Load Measurement | 125kg |
| Capacities | 50 to 10,000 kg (50 to 20,000 lbs) |
Key Features
- Designed for high accuracy platform scales and process weighing applications.
- Low profile shear beam construction with 32 mm cube dimensions.
- High immunity to shock and side loading for reliable measurements.
- Nickel plated alloy tool steel housing with full environmental sealing (IP67 rated).
- Suitable for compression and tension force measurement with cable terminal type.
- Operates from -18°C to 65°C ensuring versatility in industrial environments.
- Complies with OIML and NTEP standards for load cells.
- Equipped with two additional sense wires for voltage compensation due to temperature or cable extension.
Product Description
Tedea Huntleigh 65023-500K-C3-01F is a low profile shear beam load cell designed for precise and reliable compression force measurement in industrial weighing systems.
This load cell features a compact 32 mm by 32 mm by 32 mm cube design made of nickel plated alloy tool steel, providing robustness and long-term durability. The load cell is suitable for platform scales, pallet scales, and process weighing applications requiring high accuracy.
With a force measurement range from 125 kg minimum to 500 kg maximum, it enables precise detection of compression forces with an output sensitivity of 2 or 3 mV/V sensitivity options. The IP67-rated housing ensures protection against dust and water ingress, making it appropriate for harsh industrial environments.
It incorporates advanced compensation techniques including two additional sense wires that relay the voltage at the load cell terminals for correcting signal deviations caused by changes in lead resistance due to temperature variations and cable extensions.
This model meets internationally recognized standards such as OIML and NTEP, providing assurance of compliance and performance reliability. Typical applications include suspended hoppers, overhead track scales, force measurement devices, and industrial weighing systems requiring accurate compressive load detection.
Designed for high accuracy platform scales and process weighing applications. Low profile shear beam construction with 32 mm cube dimensions. High immunity to shock and side loading for reliable measurements. Nickel plated alloy tool steel housing with full environmental sealing (IP67 rated).
Suitable for compression and tension force measurement with cable terminal type. Operates from -18°C to 65°C ensuring versatility in industrial environments. Complies with OIML and NTEP standards for load cells. Equipped with two additional sense wires for voltage compensation due to temperature or cable extension.
Widely used in suspended hoppers, overhead track scales, and pallet scales.
This load cell by Tedea Huntleigh is a trusted choice across industrial, manufacturing, laboratory, agricultural, and commercial weighing applications where robust, precise force measurement is critical.
Explore the full range of Load Cells and sensors in the Electronics & Electricals category on EnvMart for optimal performance and quality.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum load measurement capacity of this load cell is 500 kg.
This model has dimensions of 32 mm x 32 mm x 32 mm.
It operates within a temperature range of -18°C to 65°C.
It measures compression forces.
The housing is made of nickel plated alloy tool steel.
This load cell has an IP67 rating, indicating full environmental sealing against dust and water.
Yes, it is equipped with two additional sense wires for voltage compensation due to temperature or cable extension.
It complies with OIML and NTEP standards for load cells.
It uses a cable terminal type for connections.
It is suitable for applications such as platform scales, pallet scales, and process weighing systems.
The output sensitivity options for this load cell are either 2 or 3 mV/V.
This load cell belongs to the Model 65023 series.
