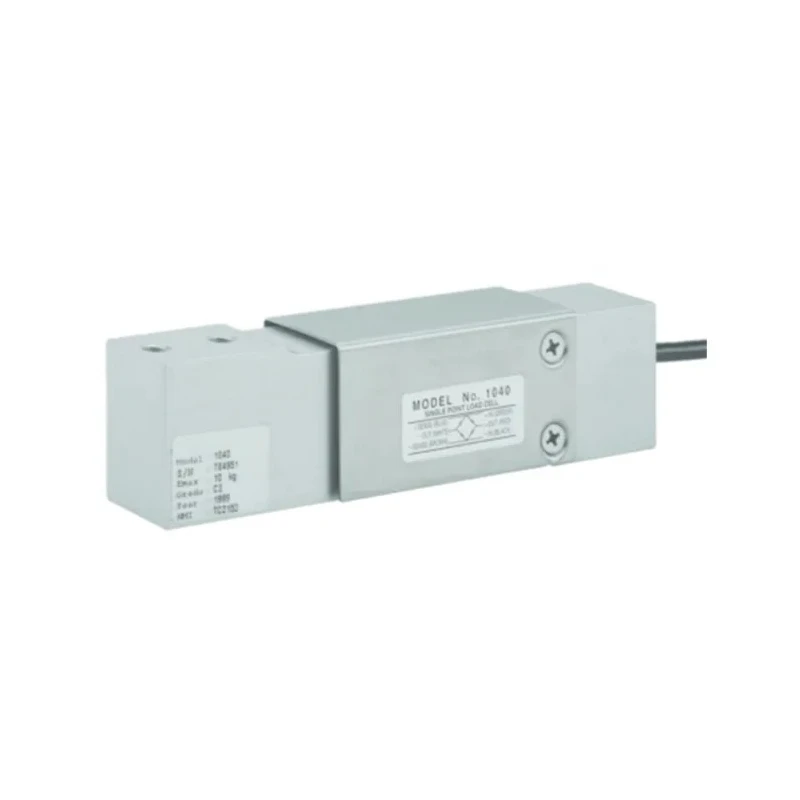

Tedea Huntleigh Model 1040 Series Low Profile Load Cell Compression Force Measurement 5 kg Aluminium 01040-005K-C3-55X
Specifications
| Country of Origin | India |
|---|---|
| Brand | Tedea Huntleigh |
| Length | 40mm |
| Model | 01040-005K-C3-55X |
| Depth | 29.5mm |
| IP Rating | IP67 |
| Sensor Type | Low Profile |
| Width | 29.5mm |
| Mount Type | Hole |
| Housing Material | Aluminium |
| Series | Model 1040 |
| Maximum Operating Temperature | 70°C |
| Minimum Operating Temperature | -20°C |
| Terminal type | Cable |
| Maximum dc Voltage | 15V dc |
| Standards/Approvals | RoHS Compliant, OIML R60, NTEP |
| Maximum AC Voltage | 15V ac |
| Force Measured | Compression |
| Maximum Force/Load Measurement | 5kg |
Key Features
- Constructed from anodized aluminium for durability and lightweight design.
- Single-point load cell suitable for retail, bench, and counting scales.
- Features a cable terminal type and hole mount type for easy installation.
- IP67 rated for protection against dust and water ingress.
- Operates within a temperature range of -20°C to 70°C for diverse industrial environments.
- Supports maximum AC and DC voltages of 15V for standard excitation.
- Compact dimensions with width and depth of 29.5mm and length of 40mm.
- Equipped with additional sense wires for compensation against temperature and cable lead resistance changes.
Product Description
Tedea Huntleigh 01040-005K-C3-55X Model 1040 Series is a low profile single-point load cell designed for compression force measurement with a maximum load capacity of 5 kg. It features an anodized aluminium housing ensuring reliable performance and lightweight construction. This load cell is engineered for direct mounting in low-cost weighing platforms, making it ideal for applications including bench, retail, and counting scales.
The product is IP67 rated, offering excellent protection against dust and water ingress, and operates efficiently within a temperature range from -20°C to 70°C. With compact physical dimensions of 40mm length and 29.5mm width and depth, it fits well into constrained spaces.
The load cell is equipped with cable terminals and is mounted via holes, facilitating straightforward installation. Its design includes two additional sense wires that monitor and compensate for voltage reaching the load cell, effectively neutralizing errors caused by temperature fluctuations and cable extension.
Standards compliance includes RoHS, OIML R60, and NTEP for quality assurance and regulatory adherence. Constructed from anodized aluminium for durability and lightweight design. Single-point load cell suitable for retail, bench, and counting scales.
Features cable terminal and hole mount types for versatile installation. IP67 rated for dust and water ingress protection. Operating temperature range from -20°C to 70°C. Maximum AC and DC voltages of 15V for excitation.
Compact size with dimensions 40mm x 29.5mm x 29.5mm. Includes sense wires for voltage compensation and accuracy improvement.
This load cell is commonly used in industrial, laboratory, and commercial weighing applications requiring precise force measurement. The robust aluminium housing combined with advanced sensing technology ensures long-term reliability and accuracy in harsh environments.
Explore more sensors and strain gauge solutions at EnvMart to meet diverse automation and measurement requirements.
Explore more products in our Strain Gauges category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum load capacity of this load cell is 5 kg.
This model has a length of 40 mm and a width and depth of 29.5 mm.
It operates efficiently within a temperature range from -20°C to 70°C.
The load cell features a hole mount type for installation.
The housing of this load cell is constructed from anodized aluminium.
It has an IP67 rating, providing protection against dust and water ingress.
This model is equipped with cable terminals for connection.
It is compliant with RoHS, OIML R60, and NTEP standards.
It is designed for measuring compression force.
It supports a maximum of 15V for both AC and DC voltage.
It is suitable for retail, bench, and counting scales.
Yes, it includes additional sense wires for compensation against temperature and cable lead resistance changes.
