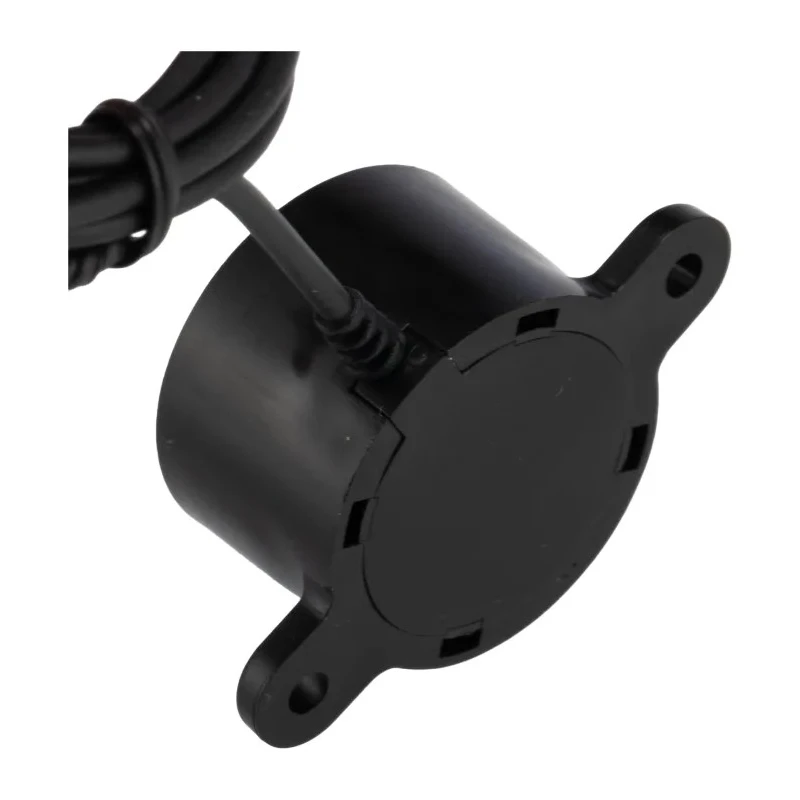

TE Connectivity Series Microfused Silicon Piezoresistive Load Cell Compression Force Sensor, 22.6 kg, 3kΩ, Plastic FC22
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Model | FC22 |
| Depth | 34mm |
| Sensor Type | Microfused Silicon Piezoresistive |
| Width | 16.8mm |
| Housing Material | Plastic |
| Series | FC22 |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -40°C |
| Terminal type | Wire |
| Maximum dc Voltage | 5.25V dc |
| Standards/Approvals | IEC55022 Class A, IEC61000-4-3, RoHS Compliant, CE, IEC61000-4-2 |
| Force Measured | Compression |
| Maximum Force/Load Measurement | 22.6kg |
| Gauge Resistance | 3kΩ |
| Gauge Length | 26mm |
| Minimum Force/Load Measurement | 0lb |
Key Features
- Utilizes robust Microfused Silicon Piezoresistive sensor technology for accurate compression force measurement.
- Compact dimensions with 26mm gauge length, 16.8mm width, and 34mm depth for versatile applications.
- Plastic housing ensures lightweight and durable protection for sensor elements.
- Thermally compensated for stable zero and span over a wide temperature range from -40°C to 85°C.
- Maximum DC voltage rating of 5.25V dc and interchangeable with normalized zero and span for consistent results.
- Suitable for industrial, medical, robotics, weighing, and household appliance applications requiring precise force monitoring.
- Reverse polarity protected and compliant with IEC55022 Class A, IEC61000-4-3, RoHS, and CE standards.

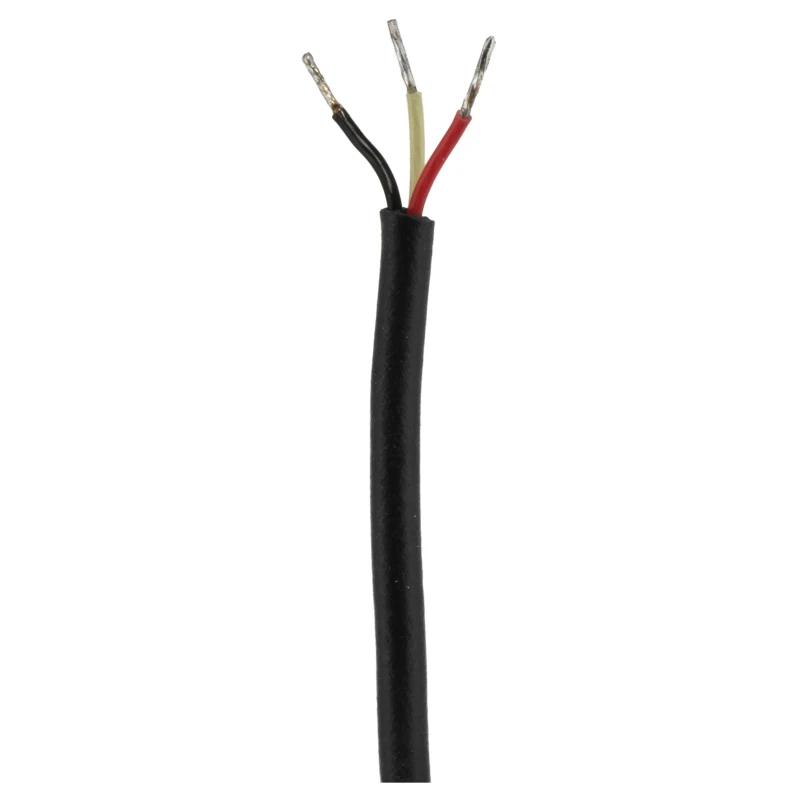

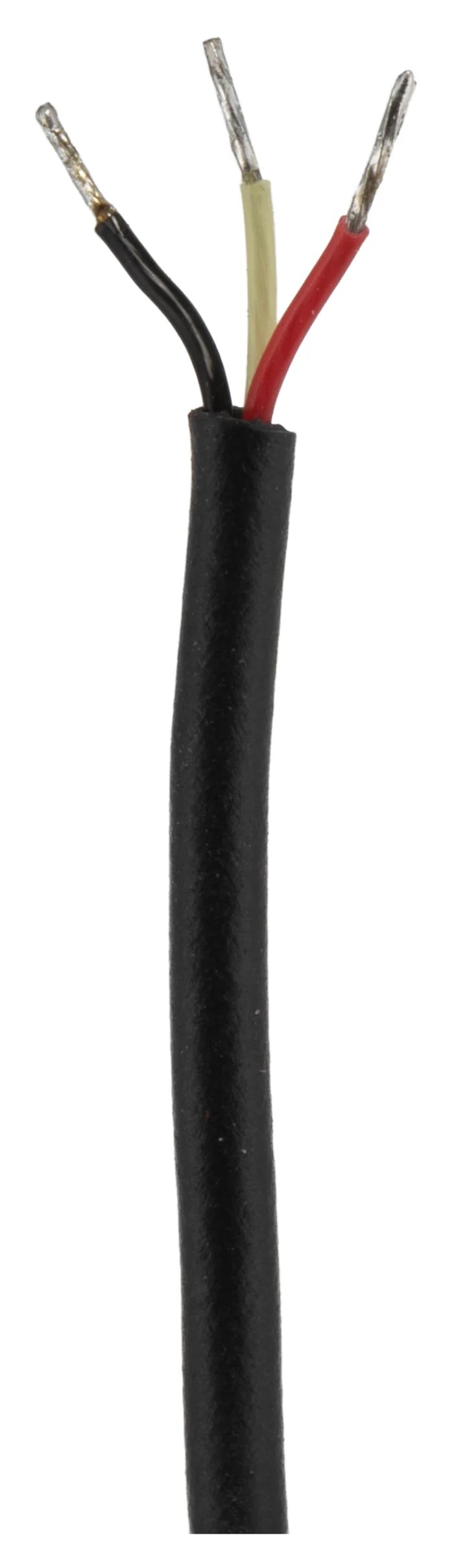

- Features a wire terminal type for flexible installation and connection.
Product Description

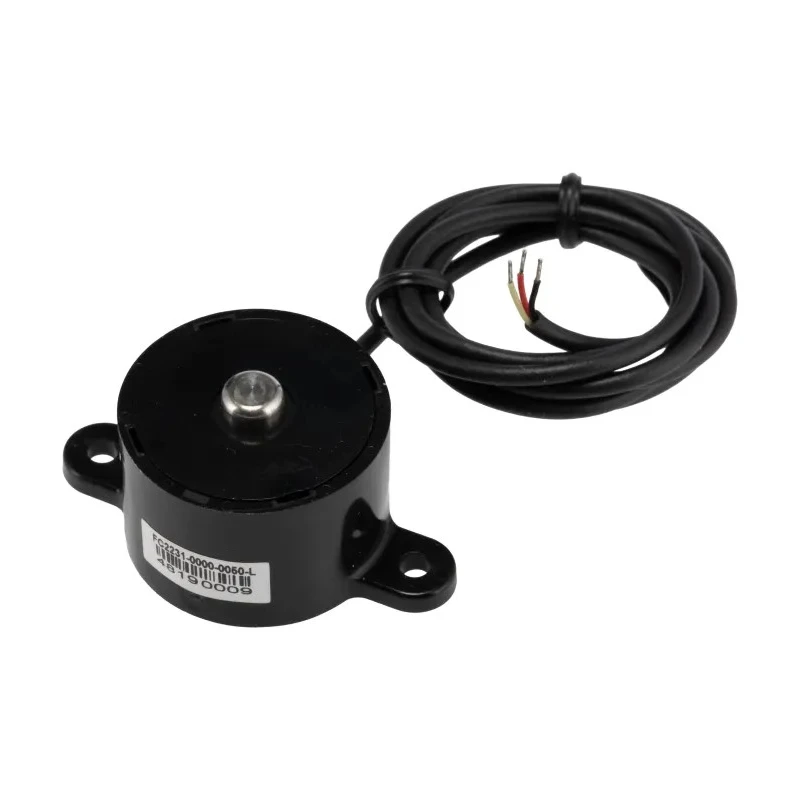

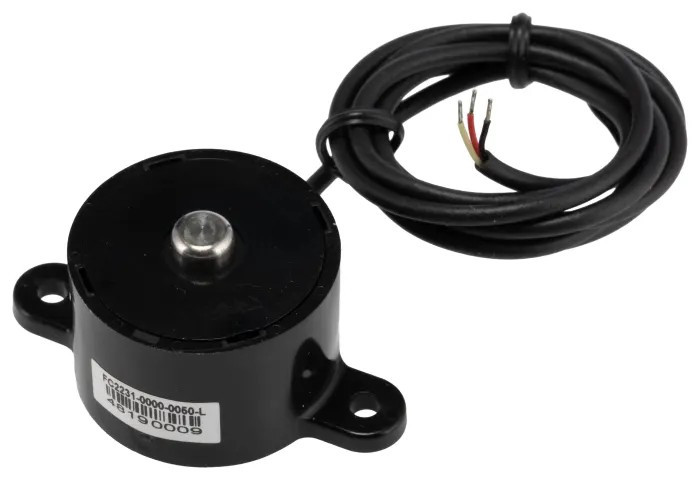

TE Connectivity FC2231-0000-0050-L FC22 Series Microfused Silicon Piezoresistive Load Cell is a precision compression force sensor designed for reliable measurement up to 22.6 kg with a gauge resistance of 3kΩ. Featuring a compact and robust plastic housing, this load cell leverages Microfused™ technology, eliminating the need for age-sensitive epoxies and providing an essentially unlimited lifecycle and superior resolution.
The sensor is thermally compensated for zero and span stability across operating temperatures ranging from -40°C to 85°C, ensuring accurate performance under varying environmental conditions. With normalized zero and span values, these load cells offer easy interchangeability and consistent force measurement results.
This load cell is rated for a maximum DC voltage of 5.25V dc and equipped with wire-type terminals for installation flexibility. It is reverse polarity protected, enhancing the sensor's durability in industrial environments.
Suitable for a variety of industrial applications including variable force control, pumps, medical infusion devices, load and compression sensing, robotics end-effectors, exercise equipment, weighing systems, and household appliances. Its compact size and high over-range capability make it ideal for precision monitoring where space and reliability are critical.
The FC22 series meets multiple industry standards including IEC55022 Class A, IEC61000-4-3, RoHS Compliance, and CE marking, confirming its quality and safety. Utilizes Microfused Silicon Piezoresistive sensor technology for accurate load measurement.
Compact plastic housing protects sensitive components while minimizing weight. Thermally compensated for stable zero/span from -40°C to 85°C for reliable operation. Interchangeable units with normalized zero and span for consistent sensor replacement.
Max DC voltage rating of 5.25V dc supports various industrial electronics. Reverse polarity protection extends sensor lifespan and reliability. Designed for industrial, medical, robotics, and domestic applications needing precise compression force sensing.
Complies with IEC55022 Class A, IEC61000-4-3, RoHS, and CE standards, ensuring conformity and safety. Explore the wide selection of sensors and Strain Gauges within the electronics and electricals category at EnvMart for comprehensive industrial automation and control solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum load measurement for this model is 22.6 kg.
It utilizes Microfused Silicon Piezoresistive sensor technology for accurate compression force measurement.
The load cell has a gauge length of 26 mm, a width of 16.8 mm, and a depth of 34 mm.
The gauge resistance of this load cell is 3 kΩ.
It operates within a temperature range of -40°C to 85°C.
The maximum DC voltage rating for this model is 5.25V dc.
This model features wire-type terminals for flexible installation and connection.
It complies with IEC55022 Class A, IEC61000-4-3, RoHS, and CE standards.
It is suitable for various applications including industrial, medical, robotics, and household appliances requiring precise force monitoring.
The load cell is thermally compensated for stable zero and span across its operating temperature range, ensuring reliable performance.
The housing material of this model is plastic, which provides lightweight and durable protection for the sensor elements.
