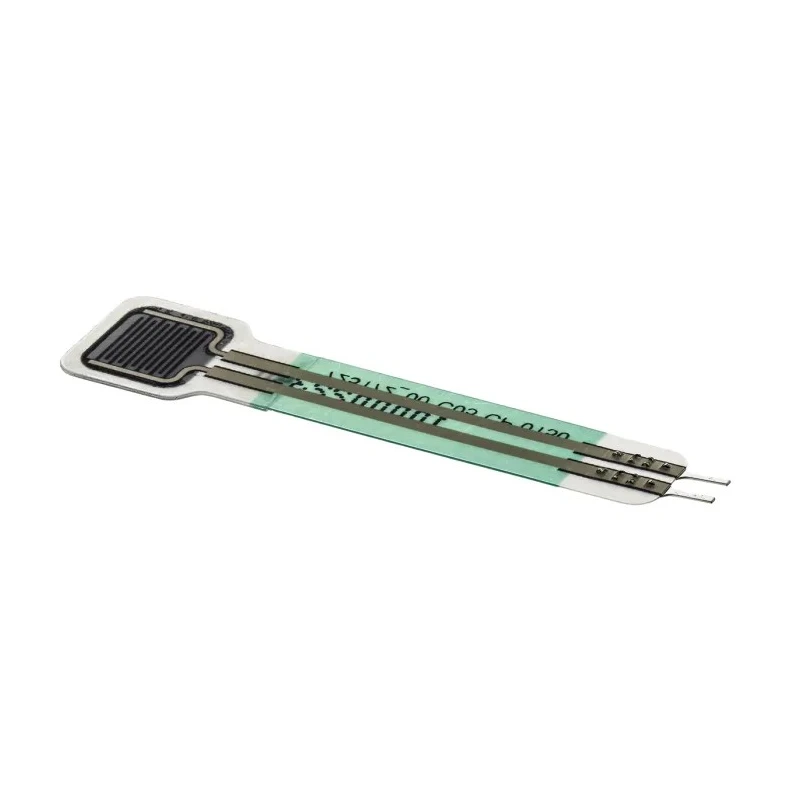

I.E.E. FSR Series Low Profile Strain Gauge, Compression, Tension Measure, 1mΩ SS-U-N-S-00009

I.E.E. SS-U-N-S-00009 is a low profile force sensitive resistor (FSR) strain gauge designed to accurately measure compression and tension forces with a nominal gauge resistance of 1mΩ. This sensor operates by detecting changes in electrical resistance as strain is applied, leveraging the gauge factor principle for precise readouts.

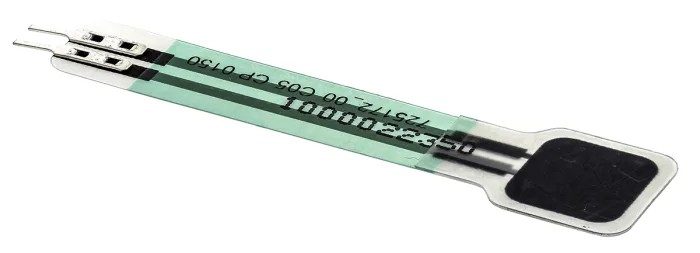

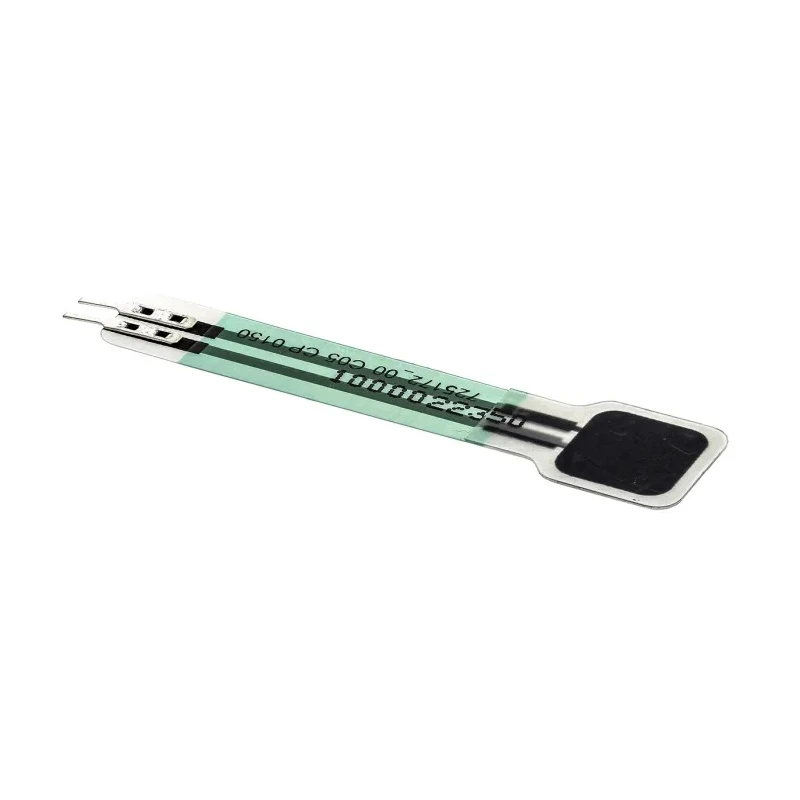

The sensor consists of two polymer layers laminated to produce a thickness below 1 mm: the first layer features a network of electrodes, while the second includes a printed semiconductor. This construction allows for reliable measurement repeatability within ±2% and maintains stable performance under excessive noise and vibrations.

Designed to endure over 10 million cycles, the gauge offers a service life suitable for demanding industrial, laboratory, and automation environments. Both sides of the gauge are fully laminated, providing protection against external mechanical damage, enhancing durability in harsh conditions.

Operating efficiently within a temperature range of -30°C to 170°C, the SS-U-N-S-00009 strain gauge can be applied in various sectors such as automotive testing, robotics, medical devices, and security systems where force and strain measurement are critical.

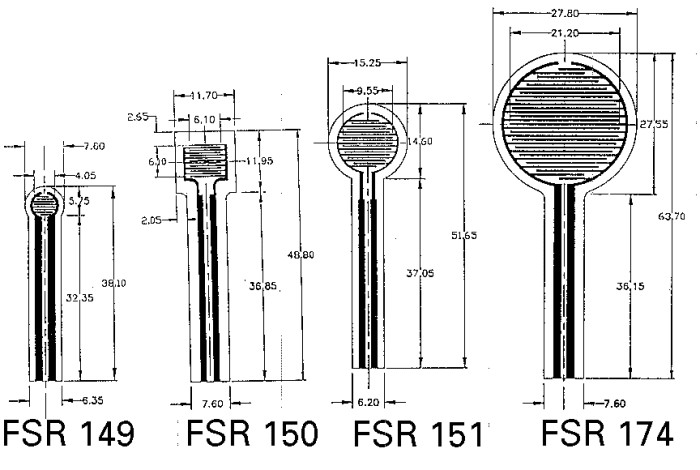

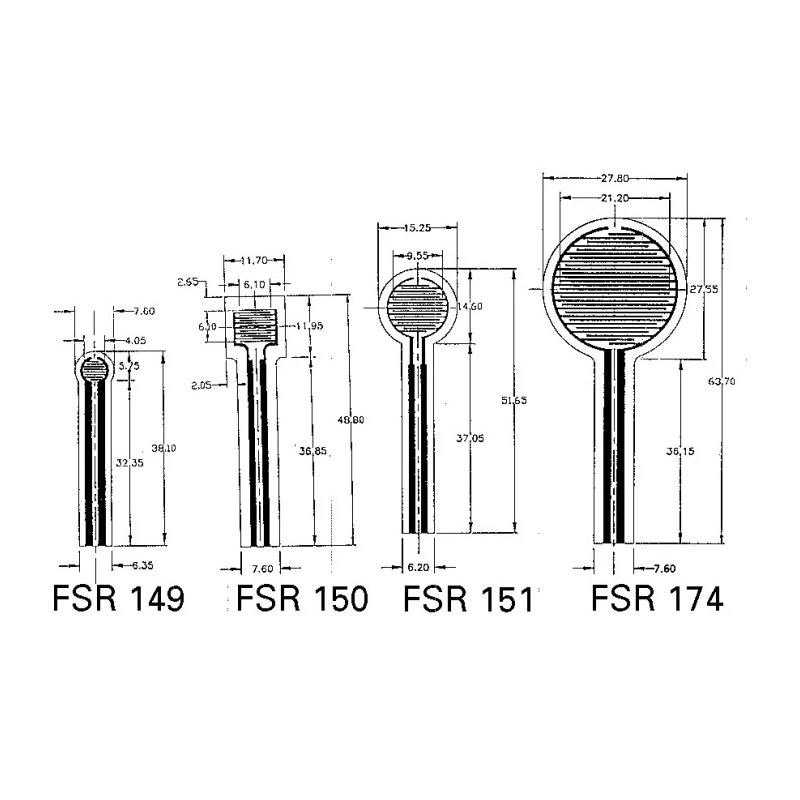

The compact size of 48.8mm length and 11.7mm width makes it easy to integrate into complex assemblies without compromising on performance. The gauge meets RoHS standards, assuring environmentally compliant manufacturing and use.

Two polymer layers laminated together to obtain sensors less than 1 mm thick. Network of electrodes and printed semiconductor provide accurate resistance change. Stable resistance readings with low sensitivity to noise and vibrations.

Wide temperature range supports diverse operating conditions. Long service life exceeding 10 million cycles. Fully laminated surfaces protect the gauge from external damage. Ideal for strain measurement in automotive, robotics, medical, and security applications.

Compact dimensions allow easy installation in various setups. Explore EnvMart's extensive range of Strain Gauges for precision industrial and laboratory force measurement.
