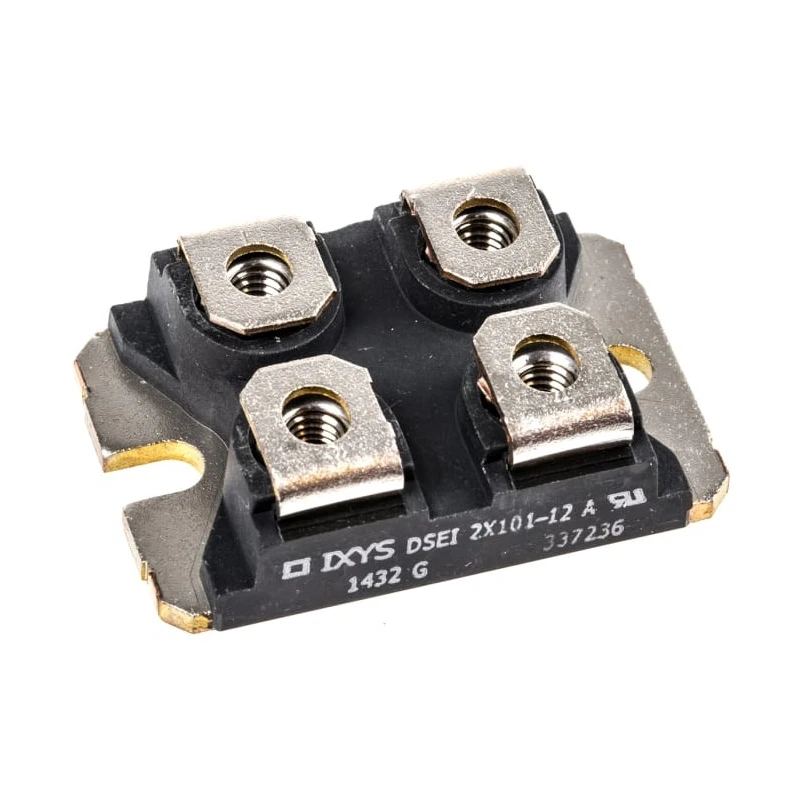

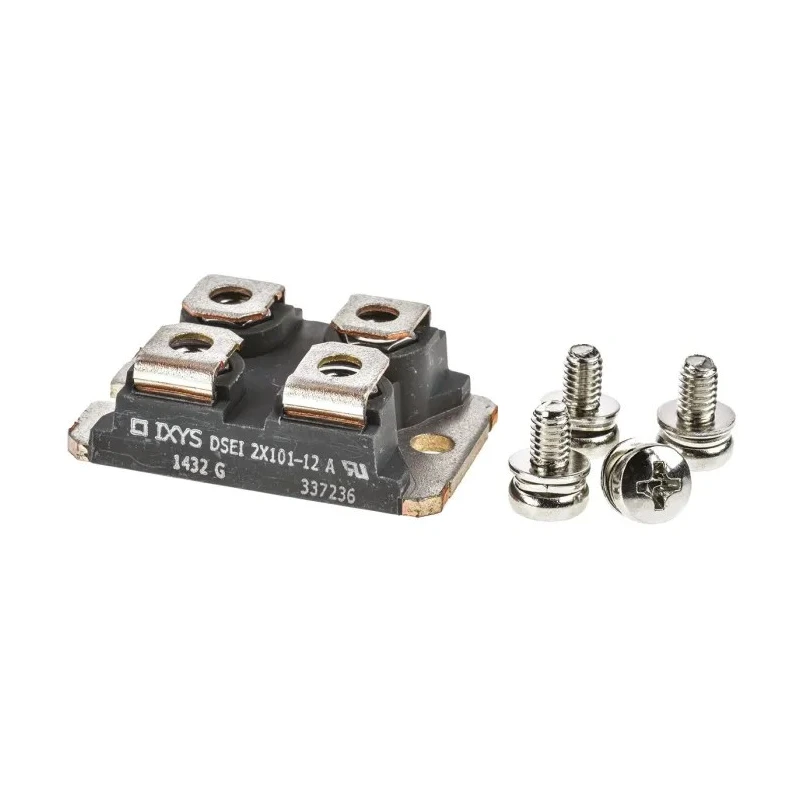

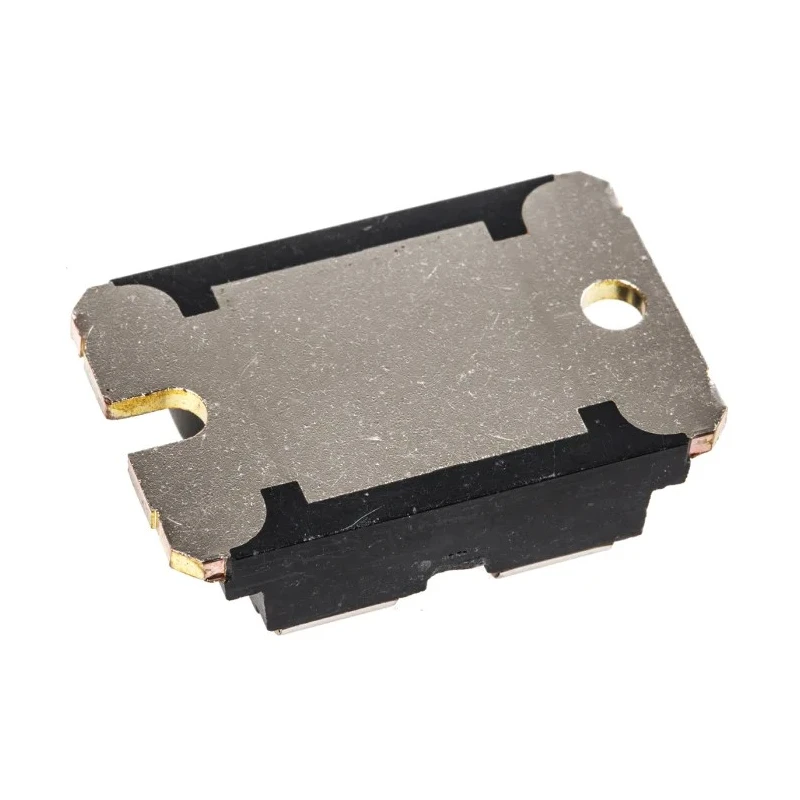

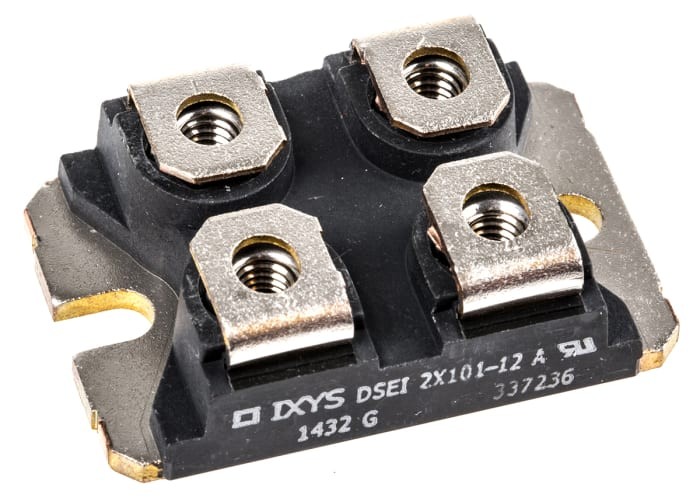

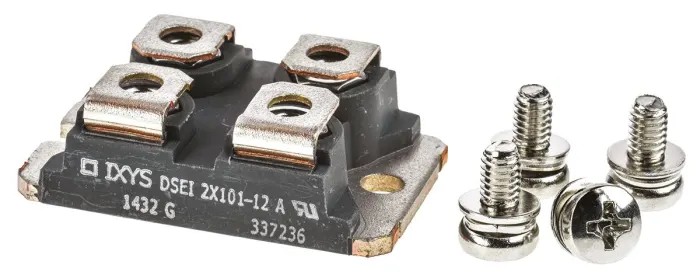

IXYS 1200 V 90 A Switching Rectifier Diode Panel Mount SOT-227 DSEI2X101-12A
Specifications
| Country of Origin | India |
|---|---|
| Brand | IXYS |
| Height | 9mm |
| Length | 51mm |
| Model | DSEI2X101-12A |
| Width | 34.3mm |
| Mount Type | Panel |
| Series | DSEI2X101 |
| Maximum Operating Temperature | 150°C |
| Package Type | SOT-227 |
| Minimum Operating Temperature | -40°C |
| Pin Count | 4 |
| Maximum Continuous Forward Current If | 90A |
| Peak Reverse Repetitive Voltage Vrrm | 1200V |
| Diode Configuration | Isolated |
| Rectifier Type | Switching |
| Peak Reverse Current Ir | 3mA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 970A |
| Maximum Forward Voltage Vf | 1.87V |
| Peak Reverse Recovery Time trr | 60ns |
| IXYS 1200 V 56 A Diode Switching 4-Pin SOT-227 DSI2X55-12ABrand | IXYS |
Key Features
- Mount type is panel for easy installation.
- Features isolated diode configuration to prevent electrical interference.
- Maximum forward voltage drop of 1.87 V ensures efficiency.
- Can operate at temperatures ranging from -40°C to 150°C.
- Peak reverse recovery time is 60 ns allowing fast switching.
- Compact dimensions with 51 mm length, 34.3 mm width, and 9 mm height.
- Peak non-repetitive forward surge current of 970 A supports transient load demands.
- Meets industrial requirements without any automotive standard certification.
Product Description
IXYS DSEI2X101-12A is a high-performance switching rectifier diode designed for industrial electronic applications requiring reliable and efficient rectification. This diode features a peak reverse repetitive voltage of 1200 V and can sustain a continuous forward current of up to 90 A, making it ideal for power conversion and switching circuits in industrial, laboratory, and commercial electronic devices.
The diode comes in a 4-pin SOT-227 panel mount package allowing convenient mechanical and electrical integration in various assemblies. The isolated diode configuration minimizes interference and internal crosstalk, improving circuit stability. Its maximum forward voltage of 1.87 V helps reduce energy dissipation and heat generation, contributing to overall system efficiency.
The device is capable of operating in a wide temperature range from -40°C to 150°C, suitable for harsh industrial environments. Fast switching capability is ensured with a peak reverse recovery time of only 60 nanoseconds, enabling high-frequency operation. The diode can also withstand peak non-repetitive surge currents up to 970 A, protecting circuits against transient overloads.
Dimensionally compact with a length of 51 mm, width of 34.3 mm, and height of 9 mm, it fits within space-constrained electronic assemblies. Although not certified for automotive standards, it serves reliably for industrial and power applications.
Mount type: Panel. Package type: SOT-227. Maximum continuous forward current: 90 A. Peak reverse repetitive voltage: 1200 V. Diode configuration: Isolated. Rectifier type: Switching. Pin count: 4. Peak reverse current: 3 mA.
Operating temperature range: -40 °C to 150 °C. Peak non-repetitive forward surge current: 970 A. Maximum forward voltage: 1.87 V. Peak reverse recovery time: 60 ns. Dimensions (LxWxH): 51 x 34.3 x 9 mm.
This IXYS diode is suitable for power electronics equipment in industrial automation, energy management systems, electrical converters, and other applications requiring efficient diode switching performance. Explore EnvMart's extensive selection of electronic semiconductor components and switching devices for your engineering needs.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current of this diode is 90 A.
This model has a peak reverse repetitive voltage rating of 1200 V.
The dimensions of this diode are 51 mm in length, 34.3 mm in width, and 9 mm in height.
It can handle a peak non-repetitive forward surge current of up to 970 A.
The diode operates within a temperature range of -40°C to 150°C.
The maximum forward voltage drop for this diode is 1.87 V.
The peak reverse recovery time is 60 ns, allowing for fast switching.
This diode uses a panel mount type for easy installation.
The SOT-227 package has a pin count of 4.
The diode configuration is isolated, which helps minimize electrical interference.
This diode is suitable for industrial automation, energy management systems, and electrical converters.
The peak reverse current is 3 mA.
