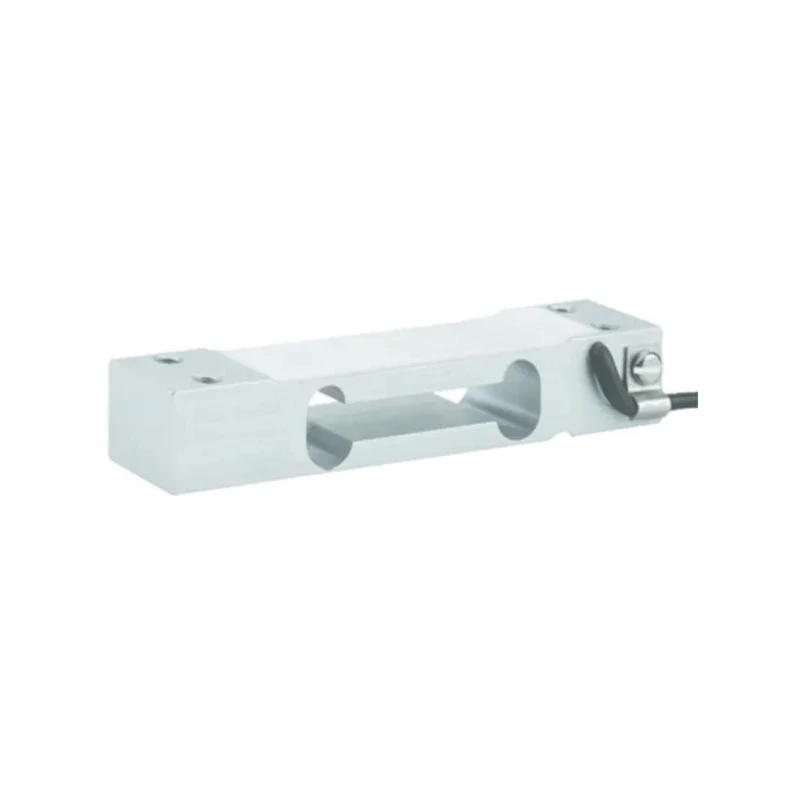

Tedea Huntleigh Model 1022 Series Low Profile Load Cell Aluminium, Compression Force, 3 - 200 kg, IP66 01022-003K-C3-08X
Specifications
| Country of Origin | India |
|---|---|
| Brand | Tedea Huntleigh |
| Length | 22mm |
| Model | 01022-003K-C3-08X |
| Depth | 25.4mm |
| IP Rating | IP66 |
| Sensor Type | Low Profile |
| Width | 25.4mm |
| Housing Material | Aluminium |
| Series | Model 1022 |
| Maximum Operating Temperature | 40°C |
| Minimum Operating Temperature | 10°C |
| Terminal type | Cable |
| Maximum dc Voltage | 15V dc |
| Standards/Approvals | ATEX, NTEP, IECEX, RoHS Compliant, IP66, FM, OIML R60 |
| Maximum AC Voltage | 15V ac |
| Force Measured | Compression |
| Maximum Force/Load Measurement | 200kg |
| Minimum Force/Load Measurement | 3kg |
| Capacities | 3 - 200 kg |
Key Features
- The load cell features an aluminium housing ensuring durability and lightweight construction.
- It provides reliable single-point load sensing with compact dimensions of 22 mm height and 25.4 mm width and depth.
- Cable termination with IP66 rating ensures robust environmental protection for industrial use.
- Operating temperature range spans from 10 to 40 degrees Celsius, suitable for various industrial environments.
- This load cell complies with major standards including ATEX, NTEP, IECEX, RoHS, FM, and OIML R60 certifications.
- The device operates safely within maximum AC and DC voltages of 15V.
- Applications include bench scales, grocery scales, counting scales, and direct mounting in weighing platforms.
- Its low profile makes it ideal for compact scale designs reducing overall cost and assembly complexity.
Product Description
Tedea Huntleigh 01022-003K-C3-08X Model 1022 Series is a low profile single-point load cell designed for precise compression force measurement from 3 to 200 kilograms. The aluminium construction offers a durable and lightweight sensor optimized for low-cost weighing platforms in retail, bench, and counting scales.
With its compact dimensions of 22 mm length and 25.4 mm width and depth, this load cell enables space-efficient integration in weighing instruments. It features cable termination for secure electrical connection and carries an IP66 ingress protection rating, providing excellent resistance against dust and water ingress for reliable operation.
The sensor supports maximum AC and DC voltages of 15V and operates optimally between 10°C and 40°C ambient temperatures. Compliance with international standards including ATEX, NTEP, IECEX, RoHS, FM, and OIML R60 ensures its suitability for demanding industrial applications requiring accuracy and safety.
Its low profile design simplifies the construction of scales, resulting in significant parts and labor savings. This makes the Model 1022 series widely applicable in bench scales, grocery scales, counting scales, and other direct mounting scenarios requiring high accuracy in compression load measurement.
The load cell features an aluminium housing ensuring durability and lightweight construction. It provides reliable single-point load sensing with compact dimensions for easy integration. Cable termination with IP66 rating ensures robust environmental protection.
Operating temperature range is from 10 to 40 degrees Celsius for versatile ambient conditions. Meets multiple global standards for quality, safety, and compliance. Designed for low-cost retail and industrial weighing platforms.
Available in a range of capacities from 3 kg up to 200 kg. Reduces assembly complexity and overall scale weight.
This product is essential in industrial, laboratory, retail, and manufacturing environments where accurate compression load sensing is critical. Explore the full range of Tedea Huntleigh sensors and Load Cells available at EnvMart for dependable weighing and force measurement solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Tedea Huntleigh Model 1022 Series load cell measures compression forces from 3 kg to 200 kg.
This load cell has an IP66 rating, providing excellent resistance against dust and water ingress for reliable operation in industrial environments.
The load cell has compact dimensions of 22 mm in length, and 25.4 mm in both width and depth.
It operates effectively within a temperature range of 10°C to 40°C.
The housing material of this load cell is aluminium, ensuring a lightweight construction.
It complies with several standards including ATEX, NTEP, IECEX, RoHS, FM, and OIML R60.
The load cell features cable termination for secure electrical connections.
The maximum AC and DC voltages supported by this load cell are 15V.
This model is suitable for applications such as bench scales, grocery scales, counting scales, and direct mounting in weighing platforms.
The low profile design simplifies the construction of scales, reducing overall weight and assembly complexity.
This load cell is designed for measuring compression forces.
The country of origin for this load cell is India.
