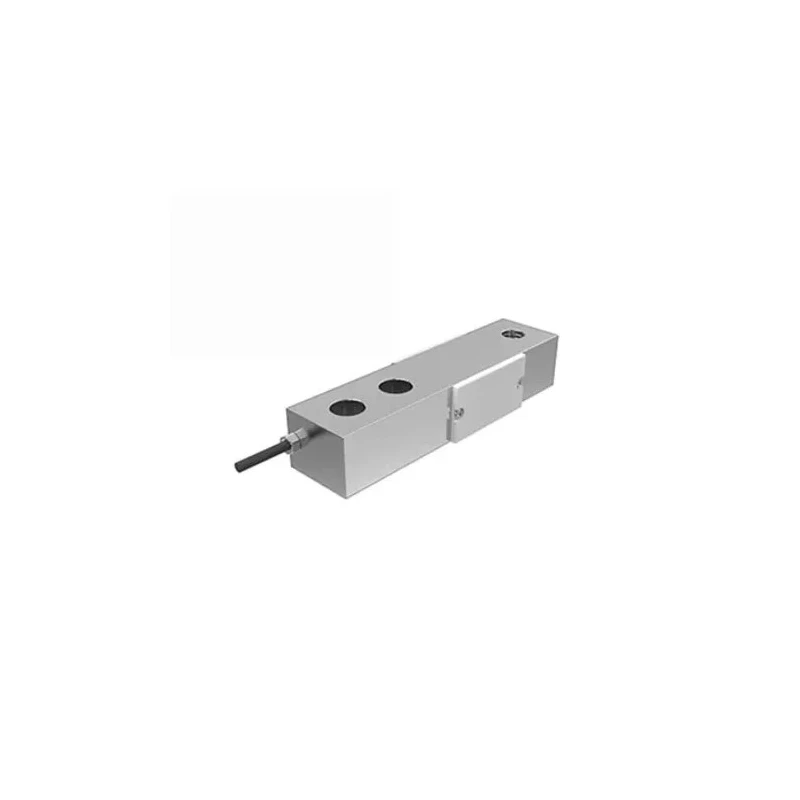

Tedea Huntleigh Low Profile Load Cell, Compression Force Measurement, 125 kg to 5 t Capacity, Alloy Tool 65023-005T-C3-02F
Specifications
| Country of Origin | India |
|---|---|
| Brand | Tedea Huntleigh |
| Length | 130mm |
| Model | 65023-005T-C3-02F |
| Depth | 32mm |
| IP Rating | IP67 |
| Sensor Type | Low Profile |
| Width | 32mm |
| Housing Material | Alloy Tool Steel |
| Series | Model 65023 |
| Maximum Operating Temperature | 65°C |
| Minimum Operating Temperature | -18°C |
| Terminal type | Cable |
| Maximum dc Voltage | 15V dc |
| Standards/Approvals | NTEP III, NTEP IIIL, Ex ia IIC T4, Ex ia IIIC T135°C, OIML R-60 3000d, RoHS, EEx ia IIC T6, III, IIIL: 10000d, NTEP Class III: 5000d, II, Groups A through G, Factory Mutual System Approved for Classes I, Divisions 1 and 2, OIML R60 |
| Maximum AC Voltage | 15V ac |
| Force Measured | Compression |
| Maximum Force/Load Measurement | 5t |
| Minimum Force/Load Measurement | 125kg |
| Capacities | 50 to 10,000 kg (50 to 20,000 lbs) |
Key Features
- Constructed with alloy tool steel for durability and strength.
- Rated IP67 for protection against dust and water ingress.
- Operates reliably between -18°C and 65°C temperature range.
- Cable terminal type enables easy integration into measurement systems.
- Complies with multiple global standards including NTEP III and OIML R-60.
- High shock and side loading immunity ensures stable and accurate readings.
- Features nickel plating and full environmental sealing for long-term reliability.
- Ideal for platform scales, pallet scales, suspended hoppers, and overhead track scales.
Product Description
Tedea Huntleigh 65023-005T-C3-02F is a low profile shear beam load cell designed for precise compression force measurement ranging from 125 kilograms up to five tonnes.
Manufactured from durable alloy tool steel with nickel plating and fully environmentally sealed, this load cell offers excellent reliability for long-term industrial applications. It provides high immunity to shock and side loads, making it highly stable for weighing systems.
The device incorporates a cable terminal for versatile electrical connections, supporting both 15V AC and DC maximum voltage. Its IP67 rating assures protection against dust and water, suitable for various harsh environments.
The operating temperature range extends from -18°C to 65°C, allowing usage in diverse climatic conditions. This load cell meets rigorous international standards including NTEP III, Ex ia IIC T4, OIML R-60, and RoHS compliance, ensuring high safety and quality standards.
Its slim 130mm length and 32mm width and depth accommodate integration into compact weighing platforms such as pallet and platform scales. The load cell supports platform weighing, process weighing, suspended hopper measurement, and overhead track scale applications.
The sensing element provides either 2 or 3 mV/V sensitivity with two extra sense wires for compensating lead resistance influences, enhancing measurement accuracy. Alloy tool steel housing with nickel plating enhances durability.
IP67-rated for dust and water resistance. Wide operating temperature range between -18°C and 65°C. Compliant with global certifications: NTEP, OIML R-60, Ex ia, RoHS. Capacities range from 50 kg up to 10,000 kg (5 tonnes for this model).
Suitable for compression and tension force measurement. Wide use in industrial sectors including manufacturing, material handling, and automation. EnvMart offers this reliable Load Cell as part of its advanced sensor assortment for demanding industrial and laboratory applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This load cell has a maximum load capacity of 5 tonnes (5000 kg).
The operating temperature range extends from -18°C to 65°C.
It measures compression force.
The load cell has an IP67 rating, providing protection against dust and water ingress.
It is constructed from alloy tool steel and features nickel plating for added durability.
The load cell measures 130mm in length, 32mm in width, and 32mm in depth.
This model incorporates a cable terminal type and supports a maximum voltage of 15V AC and DC.
It complies with multiple standards including NTEP III, OIML R-60, and RoHS.
It is suitable for platform weighing, process weighing, suspended hopper measurement, and overhead track scale applications.
It features a sensing element with 2 or 3 mV/V sensitivity and includes two extra sense wires for compensating lead resistance influences.
The minimum load capacity is 125 kilograms.
The country of origin for this load cell is India.
