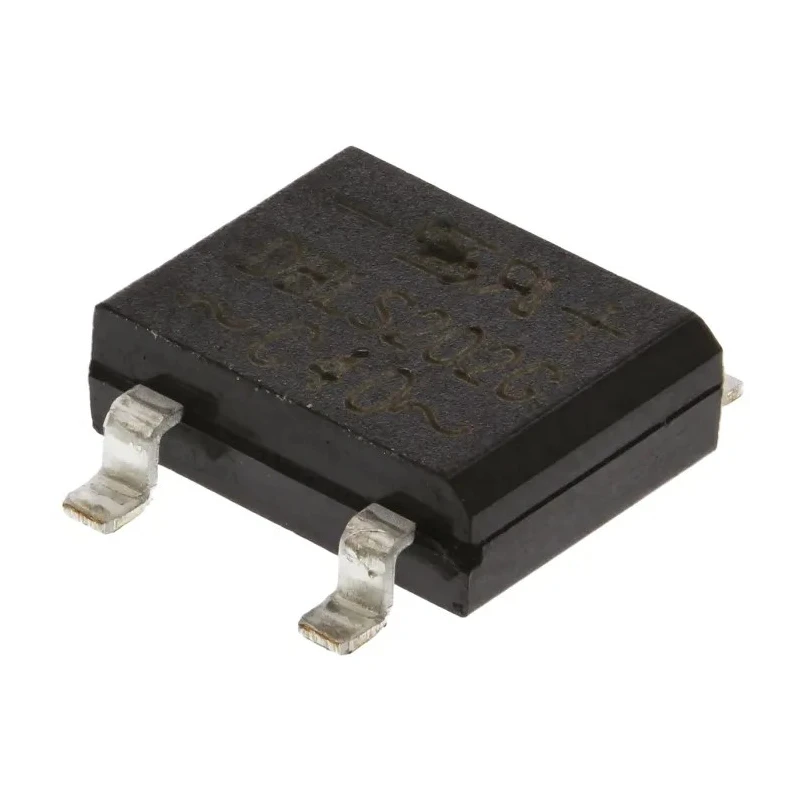

Taiwan Semiconductor Bridge Rectifier 100 V 50 A 4-Pin Single DBLS202G

Taiwan Semiconductor DBLS202G Bridge Rectifier is a compact and efficient semiconductor device designed to convert alternating current (AC) to direct current (DC). It features a glass passivated junction for superior reliability and long service life. This bridge rectifier supports a peak reverse repetitive voltage of 100 V and a continuous forward current rating of 2 A, with the ability to handle peak non-repetitive forward surge currents up to 50 A, making it suitable for demanding industrial and automotive applications.

The DBLS202G is packaged in a surface-mount DBLS package with precise dimensions of 8.51 mm length, 6.5 mm width, and 2.6 mm height, optimized for automated assembly processes on printed circuit boards (PCBs). It operates reliably across a wide temperature range from -55°C to 150°C, ensuring stable performance in harsh conditions.

This product conforms to AEC-Q101 automotive quality standards, underlining its suitability for automotive electronics requiring stringent testing and reliability. Its low forward voltage of 1.15 V reduces power losses, contributing to enhanced energy efficiency in power supply circuits.

The 4-pin single configuration of the DBLS202G bridge rectifier facilitates easy integration into various electronic power conversion applications such as power supplies, motor drives, and industrial control systems. Its robust construction and high surge current capability make it ideal for usage in manufacturing, automotive, and other industrial sectors.

Glass passivated junction ensures long-term durability. High surge current capability up to 50 A peak forward surge current. Operating temperature range from -55°C to 150°C for versatile use. Compact surface-mount DBLS package with dimensions 8.51 mm length, 6.5 mm width, and 2.6 mm height.

Low forward voltage drop of 1.15 V maximizes efficiency. Automotive grade AEC-Q101 compliant for quality assurance. 4-pin single configuration supports typical bridge rectifier circuits. Ideal for automated PCB placement in industrial environments.

These Bridge Rectifiers are extensively used in electronics manufacturing, automotive systems, power supplies, and industrial machinery requiring reliable AC/DC conversion. Their molded plastic technique offers cost-effective and reliable performance.
