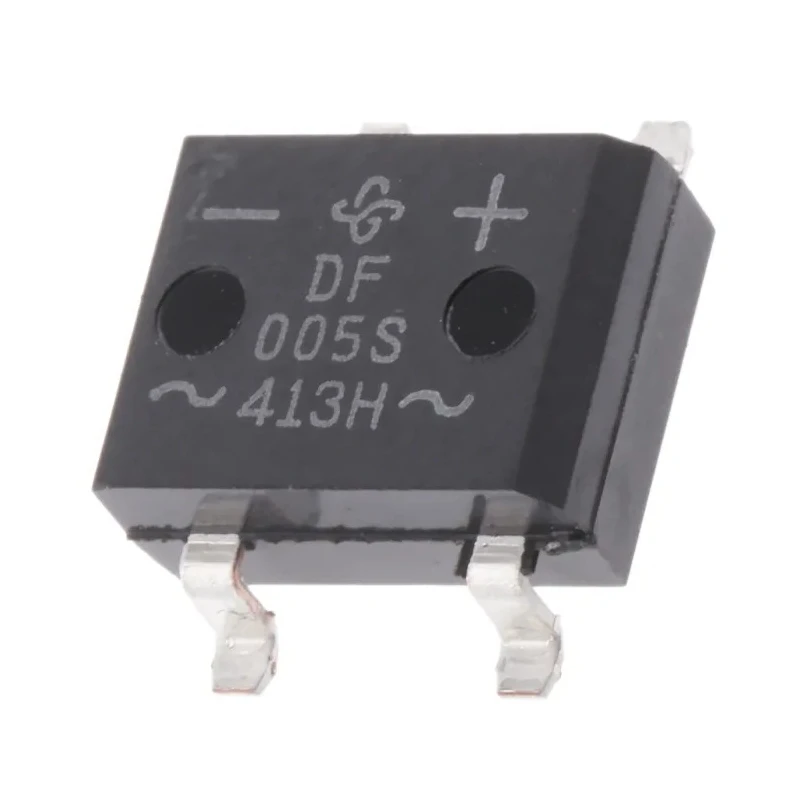

Vishay Bridge Rectifier, Surface Mount DFS Package, 50 V Peak Reverse Voltage, 50 A Peak Forward Surge Current DF005S-E3/77
Specifications
| Country of Origin | China |
|---|---|
| Brand | Vishay |
| Height | 3.3mm |
| Length | 8.51mm |
| Model | DF005S-E3/77 |
| Width | 6.5mm |
| Mount Type | Surface |
| Series | DF |
| Configuration | Single |
| Maximum Operating Temperature | 150°C |
| Package Type | DFS |
| Minimum Operating Temperature | -55°C |
| Number of Phases | 1 |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 710-2875P Brand: [Vishay](https://in.rsdelivers.com/brands/vishay)Manufacturers Part No.: DF005S-E3/77 |
| Pin Count | 4 |
| Peak Reverse Repetitive Voltage Vrrm | 50V |
| Peak Reverse Current Ir | 5μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 50A |
| Forward Current If | 1A |
| Peak Forward Voltage Vf | 1.1V |
Key Features
- Suitable for single phase bridge rectifier applications.
- Operates with a maximum temperature of 150°C and minimum -55°C.
- Features a 4-pin configuration optimized for PCB surface mounting.
- Provides a peak forward voltage of 1.1 V and a very low peak reverse current of 5 μA.
- Designed for automated placement and reflow soldering in electronics manufacturing.
- High surge current capability suitable for robust electrical performance.
- Manufactured in China with standard quality and reliability expected from Vishay Semiconductor.
Product Description
Vishay DF005S-E3/77 Bridge Rectifier is a discrete semiconductor designed for efficient AC to DC conversion in electronic circuits. This surface mount device comes in a compact DFS package perfect for printed circuit board applications requiring full-wave rectification and reliable diode arrangement to ensure consistent polarity output.
Engineered for single phase use, it supports a peak reverse repetitive voltage of 50 V and can handle surge currents up to 50 A, making it well suited for demanding industrial, electronics, and power management applications. The device operates under temperatures up to 150°C, ensuring thermal resilience in high-performance environments.
The 4-pin configuration facilitates seamless integration into automated PCB manufacturing processes including surface mount technology (SMT) and reflow soldering. The design provides low DC reverse current and minimal forward voltage drop of only 1.1 V, which helps improve efficiency and reduce power dissipation.
This bridge rectifier is widely applicable in industrial electronics, power supplies, HVAC control circuits, and motor drive systems, providing robust and efficient current rectification. It combines thermal efficiency, high surge capability, and compact form factor.
Supports single phase full wave rectification. Advanced DFS package suitable for automated PCB assembly. High peak forward surge current capacity of 50 A. Wide operating temperature range from -55°C to 150°C. Compact dimensions: 8.51 mm length, 6.5 mm width, and 3.3 mm height.
Low peak reverse current of 5 μA enhances reliability.
These features make the DF005S-E3/77 ideal for use in electronic component manufacturing, power conversion systems, and automotive electronics. The package is optimized for size and thermal performance, making it a versatile component in semiconductor portfolios.
Explore more Vishay semiconductor products and discrete electronic components at EnvMart for reliable industrial and commercial applications.
Explore more products in our Bridge Rectifiers category.
