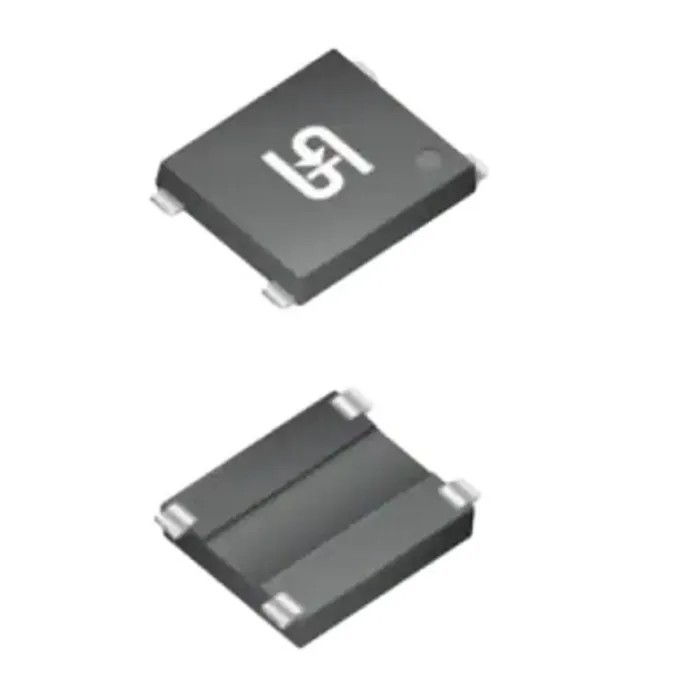

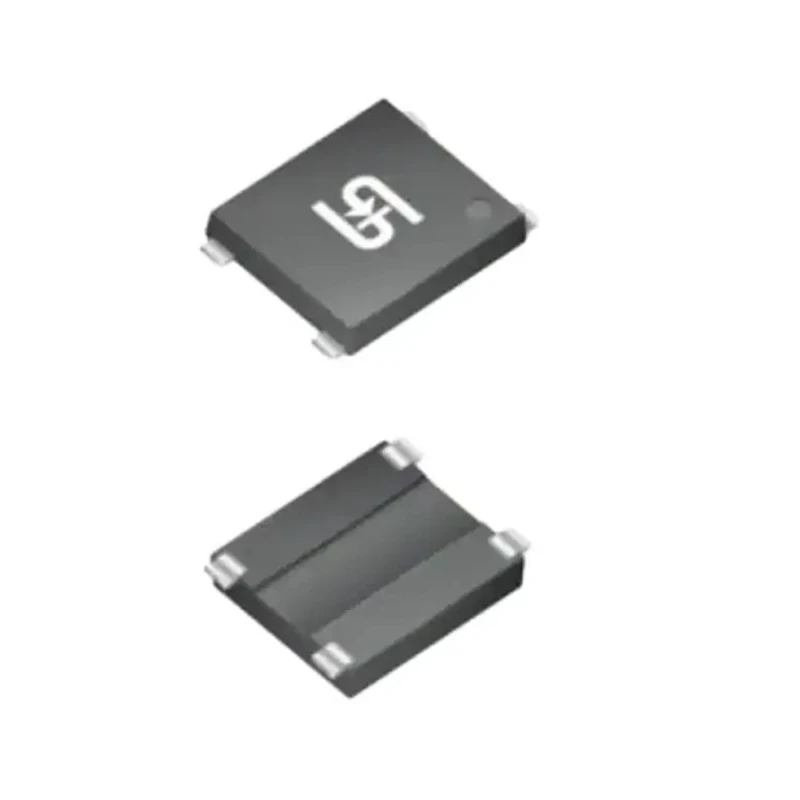

Taiwan Semiconductor Bridge Rectifier 400 V 90 A 4-Pin Quad YBS2204G

Free Delivery in India | Lowest Global Shipping Charges

Taiwan Semiconductor Bridge Rectifier 400 V 90 A 4-Pin Quad YBS2204G

Name: Taiwan Semiconductor Bridge Rectifier 400 V 90 A 4-Pin Quad YBS2204G
Brand: Taiwan Semiconductor
SKU: 298881
Price: 20.22 USD
Availability: InStock



Category Bridge Rectifiers Brand Taiwan Semiconductor Condition New

Specifications

Country of Origin	India
Brand	Taiwan Semiconductor
Height	8.6mm
Length	6.7mm
Model	YBS2204G
Mount Type	Surface
Series	YBS2200
Configuration	Quad
Maximum Operating Temperature	150°C
Package Type	YBS
Minimum Operating Temperature	-55°C
Standards/Approvals	IEC 61249-2-21, RoHS, UL
Pin Count	4
Peak Reverse Repetitive Voltage Vrrm	400V
Peak Reverse Current Ir	0μA
Peak Non-Repetitive Forward Surge Current Ifsm	90A
Forward Current If	2.2A
Peak Forward Voltage Vf	0.95V

Key Features

Features glass passivated chip junction to ensure device stability.
Ideal for automated placement in switching mode power supplies, adapters, and lighting applications.
Construction uses molded plastic technique providing moisture sensitivity level 1.
Operates at a peak reverse repetitive voltage of 400 V and maximum forward current of 2.2 A.
Supports peak non-repetitive forward surge current up to 90 A for transient conditions.
Rated maximum operating temperature of 150°C with a minimum operating temperature of -55°C.
Has a peak forward voltage of 0.95 V and peak reverse current of 0 μA, ensuring efficient rectification.
Compact surface mount device with length 6.7 mm and height 8.6 mm, in YBS package type.

Product Description

The Taiwan Semiconductor YBS2204G Bridge Rectifier 400 V, 90 A, with 4-Pin Quad configuration, is a compact and reliable semiconductor suited for electronic applications such as switching mode power supplies (SMPS), adapters, and lighting systems. Its glass passivated chip junction enhances junction stability and device longevity.

This surface mount device, using the YBS package type, is designed for automated assembly lines to improve production efficiency. It features a robust molded plastic construction that provides moisture sensitivity level 1, making it suitable for various industrial environments.

The rectifier is rated for a peak reverse repetitive voltage of 400 volts and a forward current of 2.2 amperes, making it capable of handling significant electrical loads. It also supports a high peak non-repetitive forward surge current of 90 amperes, which protects against transient surges and spikes.

Operating within a temperature range from -55 to 150 degrees Celsius, the component meets demanding thermal performance requirements. Its peak forward voltage drop of 0.95 volts and minimal peak reverse leakage current (0 μA) contribute to high efficiency and low power loss.

Glass passivated chip junction ensures stability under varied conditions. YBS surface mount package suitable for automated PCB assembly. High surge current handling capability for transient protection. Compliant with IEC 61249-2-21 and RoHS for environmental safety.

Halogen-free construction enhances environmental compatibility. Compact dimensions (6.7 mm length, 8.6 mm height) for space-saving designs. Ideal for industrial, commercial, and electronic manufacturing sectors. Reliable performance for power rectification in SMPS and lighting applications.

This bridge rectifier is a dependable choice for engineers and designers who require a high-quality rectifier with robust electrical characteristics and suitability for high-volume automated production. Explore more semiconductor products and solutions in the EnvMart catalog to meet your project needs.

Explore more products in our Bridge Rectifiers category.
