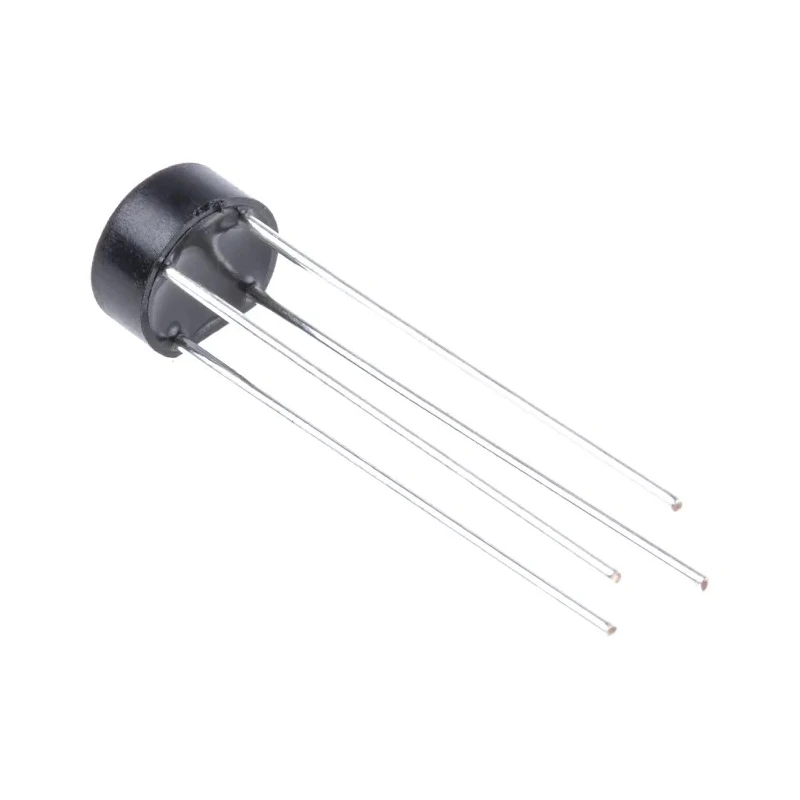

Vishay Bridge Rectifier 400 V 45 A 4-Pin Single B250C800G-E4/51
Specifications
| Country of Origin | India |
|---|---|
| Diameter | 9.86mm |
| Brand | Vishay |
| Height | 5.6mm |
| Length | 9.86mm |
| Model | B250C800G-E4/51 |
| Width | 8.84mm |
| Mount Type | Through Hole |
| Series | B250C |
| Configuration | Single |
| Maximum Operating Temperature | 125°C |
| Package Type | WOG |
| Minimum Operating Temperature | -40°C |
| Number of Phases | 1 |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 700-5374Brand: VishayManufacturers Part No.: B250C800G-E4/51Distrelec Article No.: 304-44-013 |
| Pin Count | 4 |
| Peak Reverse Repetitive Voltage Vrrm | 400V |
| Peak Reverse Current Ir | 10μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 45A |
| Forward Current If | 900mA |
| Peak Forward Voltage Vf | 1V |
Key Features
- Offers a peak reverse repetitive voltage of 400 V.
- Supports a forward current of up to 900 mA.
- Features a peak non-repetitive forward surge current rating of 45 A.
- Operates reliably between -40°C and 125°C.
- Constructed with a wire lead structure for through-hole PCB mounting.
- Compact dimensions with length 9.86 mm, width 8.84 mm, and height 5.6 mm.
- Contains 4 pins in a single configuration package type WOG.
- Features a low peak forward voltage of 1 V for efficient operation.
Product Description
Vishay B250C800G-E4/51 Bridge Rectifier 400 V 45 A 4-Pin Single is a semiconductor device designed for converting alternating current (AC) to direct current (DC) via full-wave rectification. It features a low forward voltage drop and high dielectric strength, packaged in a compact wire lead through-hole mount suitable for printed circuit board applications.
This bridge rectifier delivers a peak reverse repetitive voltage rating of 400 V and a forward current capacity of 900 mA, with the ability to withstand peak non-repetitive surge currents up to 45 A. It operates efficiently within a temperature range of -40°C to 125°C, making it well-suited for various industrial, electronic, and power supply applications.
The package includes 4 pins configured singly in a WOG housing, with precise dimensions of 9.86 mm length, 8.84 mm width, and 5.6 mm height. Its peak forward voltage is rated at 1 V, ensuring energy efficient operation. The device does not carry specific automotive standard certification, focusing on general purpose industrial use.
Peak reverse repetitive voltage of 400 V ensures robust voltage tolerance. Forward current rating of 900 mA supports moderate power applications. Surge current capability at 45 A protects against short transient overloads.
Operating temperature range from -40°C to 125°C offers wide environmental compatibility. Compact through-hole mount design facilitates easy PCB integration. Low peak forward voltage contributes to improved efficiency. Reliable wire lead construction for secure circuit connections.
High dielectric strength case enhances durability and safety. Single-phase configuration simplifies circuit design. Ideal for electronic, power supply, HVAC, and industrial equipment use.
This bridge rectifier supports essential functions in electronic components, power conversion, and industrial semiconductor applications. Explore similar high-quality semiconductor devices and power rectifiers in the Electronics & Electricals category at EnvMart for enhanced design and manufacturing efficiency.
Explore more products in our Bridge Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The peak reverse repetitive voltage of this model is 400 V.
It supports a maximum forward current rating of 900 mA.
The peak non-repetitive forward surge current rating is 45 A.
It operates reliably between -40°C and 125°C.
The dimensions are 9.86 mm in length, 8.84 mm in width, and 5.6 mm in height.
It features a through-hole mount design suitable for printed circuit board applications.
This bridge rectifier has a 4-pin configuration in a single package type WOG.
The peak forward voltage is rated at 1 V.
It is suitable for various industrial, electronic, and power supply applications.
It has a single-phase configuration, simplifying circuit design.
The country of origin for this bridge rectifier is India.
The peak reverse current is rated at 10 μA.
