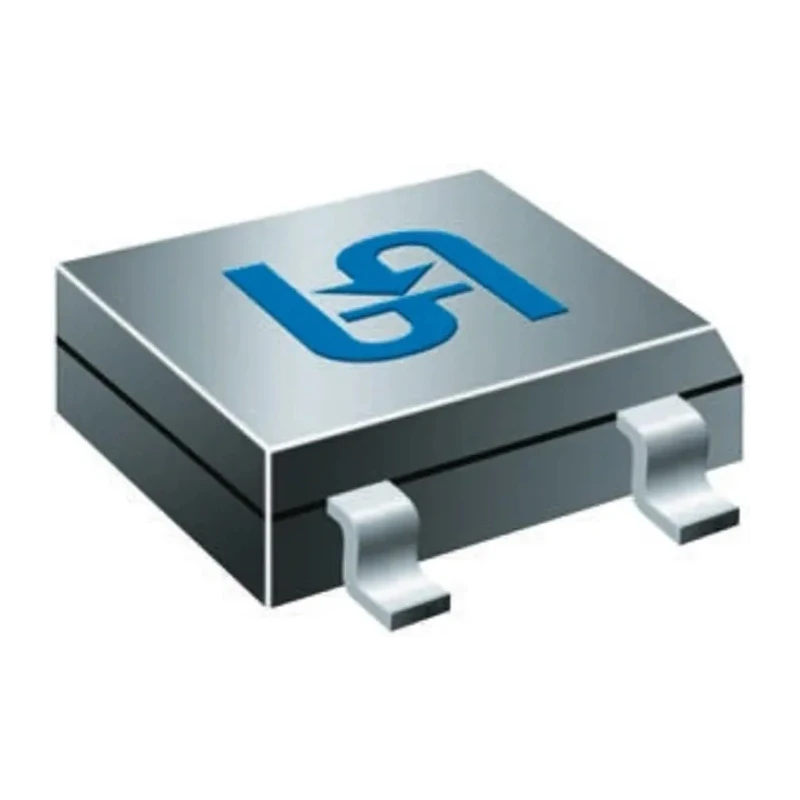

Taiwan Semiconductor Bridge Rectifier 600 V 40 A Surface Mount 4-Pin Single DBLS105G RD
Specifications
| Country of Origin | India |
|---|---|
| Brand | Taiwan Semiconductor |
| Height | 2.6mm |
| Length | 8.51mm |
| Model | DBLS105G RD |
| Width | 6.5mm |
| Mount Type | Surface |
| Series | DBLS105G |
| Configuration | Single |
| Maximum Operating Temperature | 150°C |
| Package Type | DBLS |
| Minimum Operating Temperature | -55°C |
| Number of Phases | 1 |
| Pin Count | 4 |
| Automotive Standard | AEC-Q101 |
| Peak Reverse Repetitive Voltage Vrrm | 600V |
| Peak Reverse Current Ir | 10μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 40A |
| Forward Current If | 1A |
| Peak Forward Voltage Vf | 1.1V |
Key Features
- Supports peak reverse repetitive voltage of 600 volts to ensure robust performance.
- Capable of handling forward current up to 40 amperes for high power applications.
- Compact dimensions with 8.51 mm length, 6.5 mm width, and 2.6 mm height allow efficient PCB mounting.
- Features a 4-pin single configuration suitable for standard bridge rectifier usage.
- Operates reliably between -55°C to 150°C for wide temperature tolerance.
- Designed with a peak forward voltage of 1.1 volts to optimize efficiency.
- Meets automotive standard AEC-Q101 for enhanced quality assurance.
- Ideal for surface mount technology (SMT) in industrial and electronic equipment.
Product Description
Taiwan Semiconductor DBLS105G RD Bridge Rectifier is engineered for converting AC input to DC output with high efficiency and reliability, rated for 600 V peak reverse voltage and 40 A forward surge current. This 4-pin single configuration device features a robust glass passivated junction suitable for PCB surface mount applications.
The device operates with a maximum temperature of 150°C and a minimum of -55°C, supporting demanding industrial, automotive, and electronic environments. Its compact package dimensions of 8.51 mm length, 6.5 mm width, and 2.6 mm height facilitate integration into space-sensitive designs.
This bridge rectifier offers a peak forward voltage of 1.1 V and a low peak reverse current of 10 μA, enhancing device efficiency and performance. Its adherence to the AEC-Q101 automotive standard assures quality and reliability in automotive systems and other critical applications.
Bridge rectifiers like the DBLS105G RD are commonly used in power conversion circuits, enabling AC to DC rectification in industrial machines, automotive electronics, and power supplies.
Supports peak reverse repetitive voltage of 600 volts to ensure robust performance. Capable of handling forward current up to 40 amperes for high power applications. Compact dimensions with 8.51 mm length, 6.5 mm width, and 2.6 mm height allow efficient PCB mounting.
Features a 4-pin single configuration suitable for standard bridge rectifier usage. Operates reliably between -55°C to 150°C for wide temperature tolerance. Designed with a peak forward voltage of 1.1 volts to optimize efficiency.
Meets automotive standard AEC-Q101 for enhanced quality assurance. Ideal for surface mount technology (SMT) in industrial and electronic equipment. Explore a broad range of semiconductor components and Bridge Rectifiers at EnvMart for industrial, electronic, and automotive applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The DBLS105G RD bridge rectifier supports a peak reverse repetitive voltage of 600 volts.
It can handle a peak non-repetitive forward surge current of up to 40 amperes.
The compact dimensions of this unit are 8.51 mm in length, 6.5 mm in width, and 2.6 mm in height.
This bridge rectifier operates reliably between -55°C and 150°C.
It features a 4-pin single configuration suitable for standard bridge rectifier usage.
The peak forward voltage is designed to be 1.1 volts.
Yes, it meets the automotive standard AEC-Q101 for enhanced quality assurance.
This bridge rectifier is designed for surface mount technology (SMT).
The peak reverse current is specified at 10 μA.
It is commonly used in power conversion circuits for industrial machines, automotive electronics, and power supplies.
The DBLS105G RD bridge rectifier is manufactured in India.
This model belongs to the DBLS105G series.
