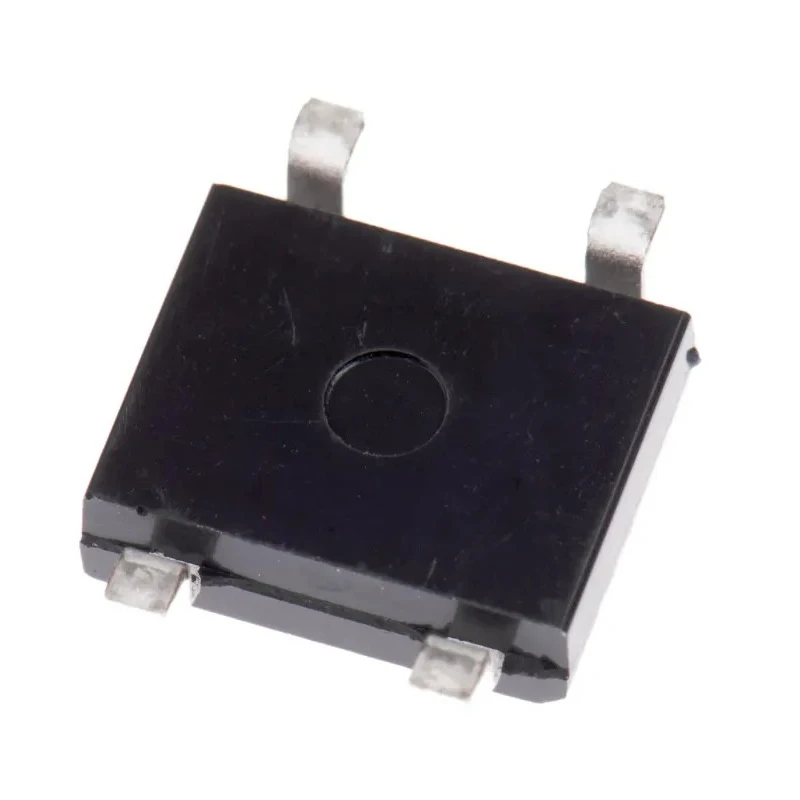

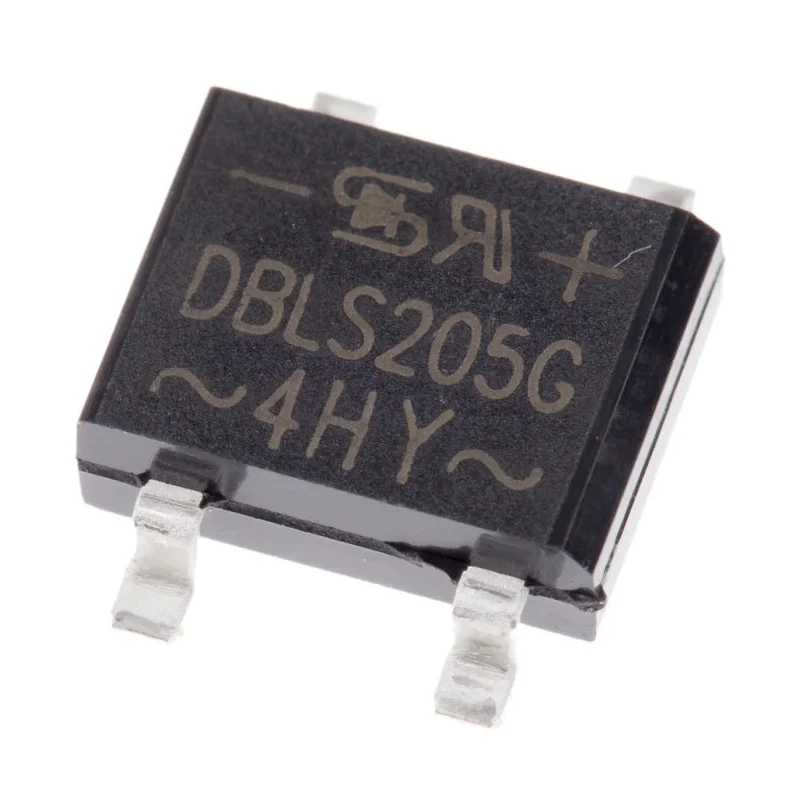

Taiwan Semiconductor Bridge Rectifier 600 V 50 A 4-Pin Surface Mount DBLS205G RD
Specifications
| Country of Origin | India |
|---|---|
| Brand | Taiwan Semiconductor |
| Height | 2.6mm |
| Length | 8.51mm |
| Model | DBLS205G RD |
| Width | 6.5mm |
| Mount Type | Surface |
| Series | DBLS205G |
| Configuration | Single |
| Maximum Operating Temperature | 150°C |
| Package Type | DBLS |
| Minimum Operating Temperature | -55°C |
| Number of Phases | 1 |
| Pin Count | 4 |
| Automotive Standard | AEC-Q101 |
| Peak Reverse Repetitive Voltage Vrrm | 600V |
| Peak Reverse Current Ir | 10μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 50A |
| Forward Current If | 2A |
| Peak Forward Voltage Vf | 1.15V |
Key Features
- Offers a peak reverse repetitive voltage of 600 volts.
- Supports a forward current rating of 2 amperes with a surge current of 50 amperes.
- Constructed with a glass passivated junction for high reliability.
- Operates within a temperature range of -55°C to 150°C.
- Surface mount design for automated PCB assembly.
- Automotive standard compliant with AEC-Q101.
- Low peak forward voltage of 1.15 volts and low reverse leakage current of 10 μA.
Product Description
Taiwan Semiconductor DBLS205G RD Bridge Rectifier is a robust 4-pin surface mount semiconductor device optimized for converting AC input to DC output in electronic circuits. Designed to handle peak reverse voltages up to 600 V and forward currents up to 2 A, this bridge rectifier ensures efficient and reliable performance in power management applications.
This component features a glass passivated junction to enhance longevity and reduce degradation over time. Its molded plastic package allows for low-cost manufacturing and is suitable for automated placement on printed circuit boards, making it ideal for high-volume electronic production.
The rectifier supports a peak non-repetitive forward surge current of 50 A, providing resilience against transient load conditions. Operating temperature ranges from -55°C to 150°C, making it suitable for automotive and industrial environments compliant with AEC-Q101 standards.
With compact dimensions of 8.51 mm length, 6.5 mm width, and 2.6 mm height, this DBLS205G series device fits well in space-limited designs. Its low forward voltage drop of 1.15 V and minimal reverse current leakage of 10 μA contribute to energy-efficient circuit operation.
Peak Reverse Repetitive Voltage: 600 V. Forward Current: 2 A. Peak Forward Surge Current: 50 A. Operating Temperature Range: -55°C to 150°C. Glass passivated junction and molded plastic package. Compact surface-mount design.
Automotive standard AEC-Q101 compliant.
This bridge rectifier is widely used in industrial, automotive, and power conversion applications, offering dependable performance for PCB-mounted rectification tasks. It is suitable for designers seeking high reliability and efficient power control in compact electronic systems.
Explore additional semiconductor and bridge rectifier products in the Electronics & Electricals category on EnvMart for enriching your equipment portfolio.
Explore more products in our Bridge Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The peak reverse repetitive voltage of this bridge rectifier is 600 V.
It supports a maximum forward current rating of 2 A.
This model can handle a peak non-repetitive forward surge current of 50 A.
The operating temperature range is from -55°C to 150°C.
It has dimensions of 8.51 mm in length, 6.5 mm in width, and 2.6 mm in height.
This model features a surface mount design suitable for automated PCB assembly.
Yes, it is compliant with the automotive standard AEC-Q101.
The peak forward voltage drop is 1.15 V.
It has a peak reverse leakage current of 10 μA.
This bridge rectifier is widely used in industrial, automotive, and power conversion applications.
This model has a pin count of 4.
It features a glass passivated junction for enhanced reliability.
