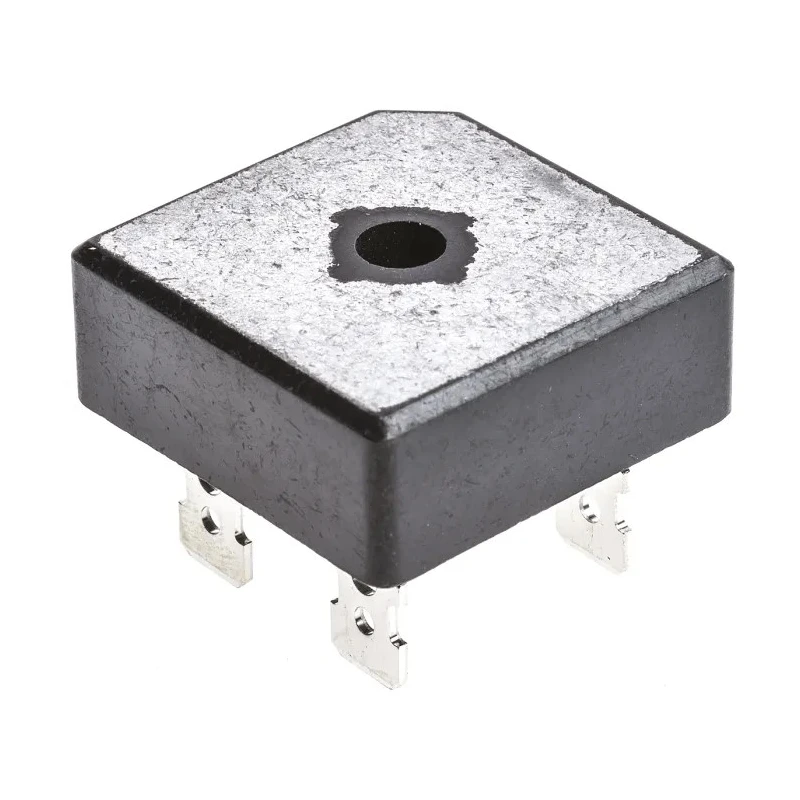

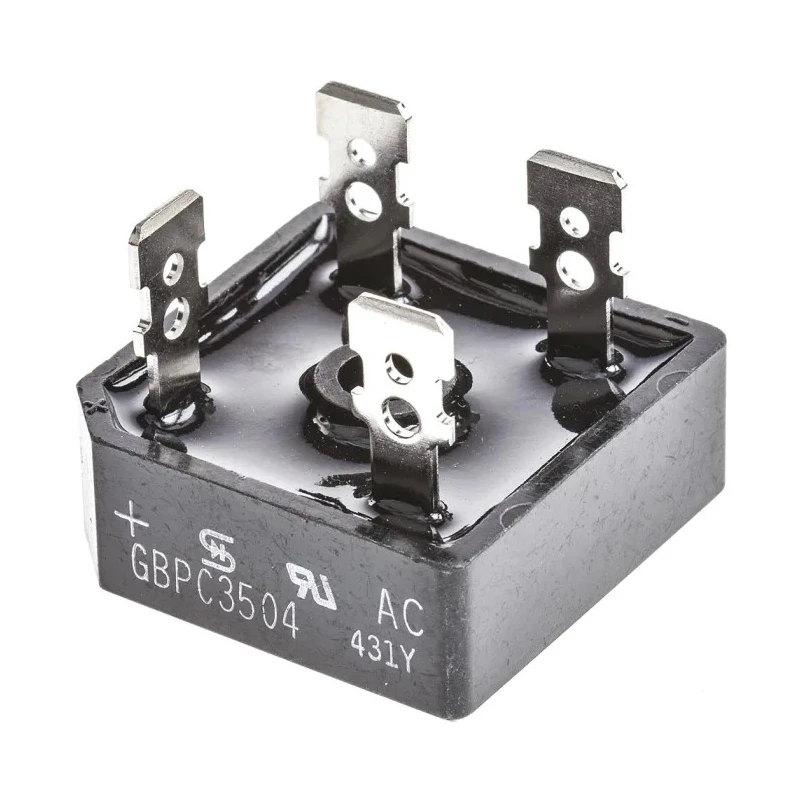

Taiwan Semiconductor Bridge Rectifier 400 V 400 A 4-Pin Single GBPC3504 T0
Specifications
| Country of Origin | India |
|---|---|
| Brand | Taiwan Semiconductor |
| Height | 11.23mm |
| Length | 29mm |
| Model | GBPC3504 T0 |
| Width | 29mm |
| Mount Type | Screw |
| Series | GBPC35 |
| Configuration | Single |
| Maximum Operating Temperature | 150°C |
| Package Type | GBPC |
| Minimum Operating Temperature | -50°C |
| Number of Phases | 1 |
| Pin Count | 4 |
| Peak Reverse Repetitive Voltage Vrrm | 400V |
| Peak Reverse Current Ir | 5μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 400A |
| Forward Current If | 35A |
| Peak Forward Voltage Vf | 1.1V |
| Vishay Bridge Rectifier, 400 V 400 A, 4-Pin SingleBrand | Vishay |
Key Features
- The device has a peak reverse repetitive voltage of 400 V, ensuring reliable blocking voltage performance.
- It supports a forward current of 35 Amperes for steady-state operation.
- Designed with a single configuration and 4 pins for straightforward mounting and connectivity.
- Operating temperature range from -50°C to 150°C allows stable function under harsh conditions.
- Includes integrally molded heat-sink for excellent heat dissipation and thermal management.
- Mount type is screw, facilitating secure installation in various electronic assemblies.
- Peak non-repetitive forward surge current up to 400 A supports transient overloads.
- Low peak forward voltage drop of 1.1 V enhances power efficiency.
Product Description
Taiwan Semiconductor GBPC3504 T0 Bridge Rectifier 400 V 400 A 4-Pin Single is a robust semiconductor device designed for converting alternating current (AC) input into direct current (DC) output efficiently. This bridge rectifier adopts a single-phase, 4-pin screw-mount package type, providing reliable electrical performance in industrial and commercial electronics applications.
It operates at a peak reverse repetitive voltage of 400 V and a forward current of 35 A, making it suitable for medium to high power circuits. The device handles peak non-repetitive forward surge currents up to 400 A for transient conditions, ensuring durability and performance under surge events.
Its operating temperature range from -50°C to 150°C allows it to function reliably in harsh environmental conditions often encountered in power management, industrial automation, HVAC systems, and other electronic equipment manufacturing scenarios. The integrally molded heat sink promotes efficient heat dissipation, optimizing device longevity and performance.
With compact dimensions of 29 mm length, 29 mm width, and height of 11.23 mm, it is suitable for space-constrained PCB designs. The isolated voltage from case to lead exceeding 2500 V provides added electrical insulation safety.
Peak reverse repetitive voltage up to 400 V. Forward current rating of 35 A continuous operation. Single-phase configuration with 4-pin screw mounting. Wide operating temperature range from -50°C to 150°C. Integral heat sink for improved thermal management.
Peak non-repetitive surge current up to 400 A. Low peak forward voltage of 1.1 V for higher efficiency. Compact size for versatile mounting options. Electrical isolation exceeding 2500 V between case and leads.
This Taiwan Semiconductor bridge rectifier is ideal for use in power supplies, industrial electronics, commercial appliances, and HVAC systems. Its reliable performance and rugged design make it a dependable choice for converting AC to DC supply with minimal heat generation and enhanced safety. Explore the Electronics & Electricals category at EnvMart for more semiconductor and bridge rectifier options suitable for your industrial and laboratory applications.
Explore more products in our Bridge Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The peak reverse repetitive voltage of this bridge rectifier is 400 V, ensuring reliable blocking voltage performance.
This model supports a forward current of 35 A for steady-state operation.
It can handle peak non-repetitive forward surge currents up to 400 A, which supports transient overloads.
The operating temperature range is from -50°C to 150°C, allowing stable function under harsh conditions.
This bridge rectifier features a screw mount type, facilitating secure installation in various electronic assemblies.
The dimensions of this model are 29 mm in length, 29 mm in width, and 11.23 mm in height.
It is designed with a single configuration and has 4 pins for straightforward mounting and connectivity.
The peak forward voltage drop is 1.1 V, which enhances power efficiency.
The electrical isolation from case to lead exceeds 2500 V, providing added electrical insulation safety.
It is ideal for use in power supplies, industrial electronics, commercial appliances, and HVAC systems.
The device includes an integrally molded heat sink for excellent heat dissipation and thermal management.
