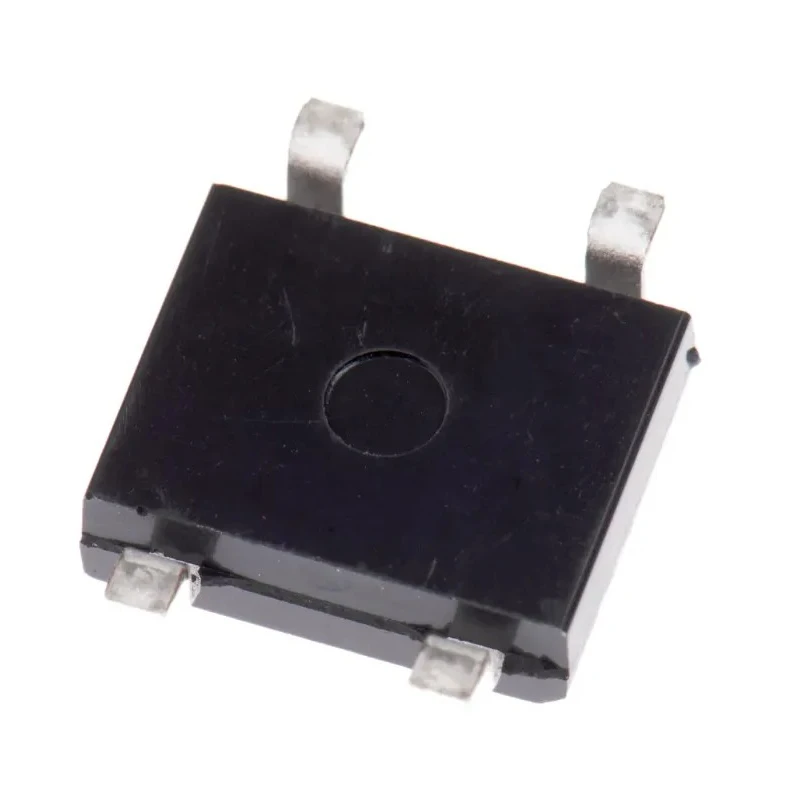

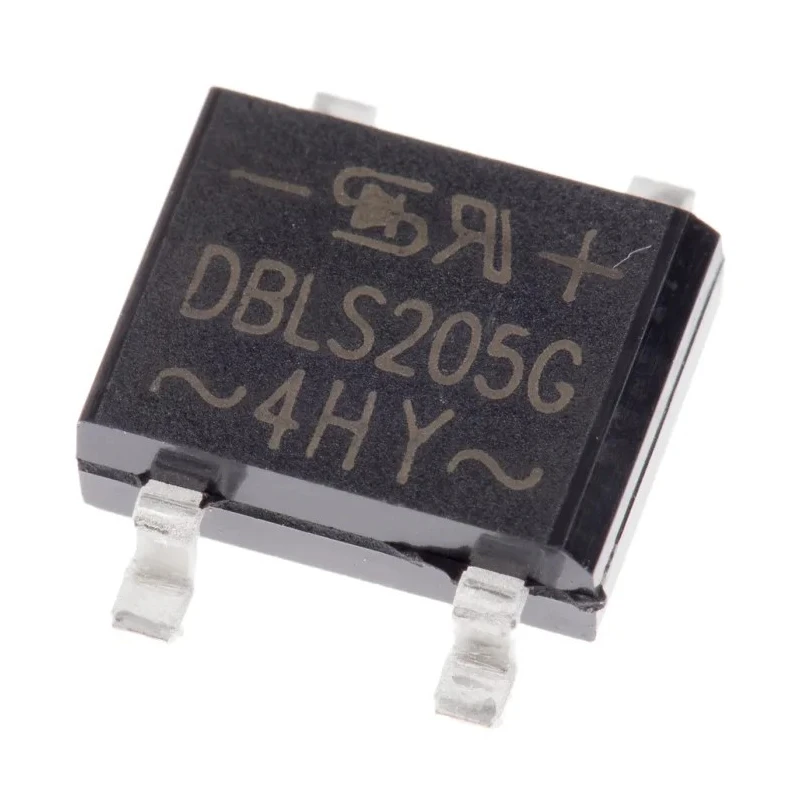

Taiwan Semiconductor Bridge Rectifier 600 V 50 A, 4-Pin Surface Mount DBLS205G RD
Specifications
| Country of Origin | India |
|---|---|
| Brand | Taiwan Semiconductor |
| Height | 2.6mm |
| Length | 8.51mm |
| Model | DBLS205G RD |
| Width | 6.5mm |
| Mount Type | Surface |
| Series | DBLS205G |
| Configuration | Single |
| Maximum Operating Temperature | 150°C |
| Package Type | DBLS |
| Minimum Operating Temperature | -55°C |
| Number of Phases | 1 |
| Pin Count | 4 |
| Automotive Standard | AEC-Q101 |
| Peak Reverse Repetitive Voltage Vrrm | 600V |
| Peak Reverse Current Ir | 10μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 50A |
| Forward Current If | 2A |
| Peak Forward Voltage Vf | 1.15V |
Key Features
- Peak Reverse Repetitive Voltage (Vrrm) of 600 V ensures safe operation under high voltage conditions.
- Forward Current (If) rated at 2 A supports consistent performance.
- Peak Non-Repetitive Forward Surge Current (Ifsm) capacity of 50 A enables tolerance to transient surges.
- Build complies with Automotive Standard AEC-Q101, suitable for automotive applications.
- Operates reliably within temperature range of -55°C to 150°C.
- Glass passivated junction technology enhances durability and performance.
- Encapsulated in a robust DBLS package, ideal for automated placement and low-cost construction.
Product Description
Taiwan Semiconductor DBLS205G RD Bridge Rectifier is a high-performance surface mount electronic component designed for converting alternating current (AC) to direct current (DC). It is rated at a Peak Reverse Repetitive Voltage (Vrrm) of 600 V and a Forward Current (If) of 2 A, making it suitable for a wide range of industrial, automotive, and electronic applications requiring efficient power rectification.
This bridge rectifier features a 4-pin single-phase configuration encapsulated in the DBLS package type. Its compact dimensions of 8.51 mm length, 6.5 mm width, and 2.6 mm height allow for optimized use of PCB space while maintaining robust performance. The device is constructed using glass passivated junction technology, ensuring high reliability and durability under varied operating conditions.
The rectifier supports a peak non-repetitive forward surge current (Ifsm) of 50 A, enabling it to handle transient surges often encountered in power circuits. It operates effectively over a broad temperature range from -55°C to 150°C, conforming to the Automotive Standard AEC-Q101, making it suitable for automotive system requirements.
This component is ideal for industrial manufacturing, power supplies, automotive electronics, HVAC systems, and other electronic control applications requiring precise and reliable AC to DC current conversion. The surface mount package supports automated placement techniques for efficient production workflows.
High peak reverse voltage tolerance of 600 V. Forward current rating of 2 A. Surge current capability of 50 A (non-repetitive). Automotive grade qualification with AEC-Q101 compliance. Compact surface mount DBLS package.
Wide operating temperature from -55°C to 150°C. Glass passivated junction for enhanced reliability. 4-pin single-phase configuration. Explore the Taiwan Semiconductor Bridge Rectifier range on EnvMart for dependable discrete semiconductor components used in cutting-edge electronics and industrial equipment.
Explore more products in our Bridge Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The bridge rectifier has a peak reverse repetitive voltage (Vrrm) rating of 600 V, ensuring safe operation under high voltage conditions.
The forward current (If) rating of this model is 2 A, supporting consistent performance in various applications.
It can handle a peak non-repetitive forward surge current (Ifsm) of 50 A, allowing it to tolerate transient surges in power circuits.
This bridge rectifier operates reliably within a temperature range of -55°C to 150°C, making it suitable for diverse environments.
It is encapsulated in a DBLS package type, which is designed for surface mounting and supports automated placement techniques.
This model features a 4-pin configuration, which is typical for its single-phase design.
It complies with the Automotive Standard AEC-Q101, making it suitable for automotive applications.
The dimensions of this model are 2.6 mm in height, 8.51 mm in length, and 6.5 mm in width.
It utilizes glass passivated junction technology, which enhances its reliability and performance under various operating conditions.
The peak forward voltage (Vf) rating for this bridge rectifier is 1.15 V.
It is suitable for a wide range of applications including industrial manufacturing, power supplies, automotive electronics, and HVAC systems.
The peak reverse current (Ir) rating is 10 μA, indicating its efficiency in minimizing reverse leakage.
