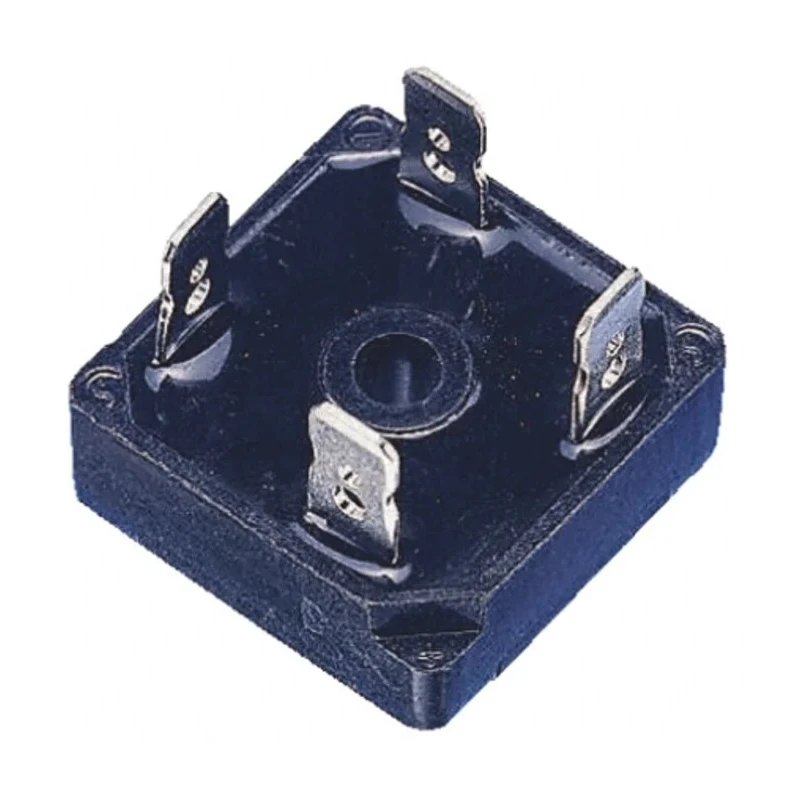

Vishay Surface Mount Single-Phase Bridge Rectifier 1400 V Peak Reverse Voltage 500 A Peak Surge Current 4-Pin VS-36MB140A

Vishay VS-36MB140A is a high-performance single-phase bridge rectifier designed for industrial and power electronics applications demanding high voltage and surge current capability. This surface mount device features a peak reverse repetitive voltage of 1400 V and a peak non-repetitive forward surge current rating of 500 A, making it suitable for robust full-wave rectification tasks in industrial machines, electronic converters, and power supply systems.

The rectifier is housed in a compact D-34 package measuring 28.5 mm in length and width, and 9.8 mm in height, equipped with four pins for connection. Its electrically insulated case with high thermal conductivity enables efficient heat dissipation, ensuring reliable performance under continuous high load. The device operates over a wide temperature range from -55°C to 150°C, suitable for demanding environments including manufacturing, HVAC, and industrial automation sectors.

Its three-way universal terminals support push-on (Fast-on), wrap-around, or solder mounting methods, facilitating versatile and secure installations. The rectifier delivers a low peak forward voltage drop of 1.3 V, optimizing energy efficiency and reducing power loss during operation. With a peak reverse current of just 10 microamps, this component offers high operational efficiency and durability.

Ideal for converting AC to DC in power supplies and industrial equipment, the VS-36MB140A bridge rectifier contributes to improved production efficiency and equipment reliability. While the part does not carry automotive or special certifications, it meets general industrial standards for semiconductor devices.

Set yourself up with a proven, reliable bridge rectifier from Vishay for demanding electronic and electrical applications requiring high voltage handling, surge capacity, and efficient thermal management.

High voltage capacity suitable for demanding rectification applications. Durable D-34 package with a compact 28.5mm x 28.5mm footprint. Operates reliably between -55°C to 150°C temperature range. Four-pin single-phase configuration with push-on, wrap around or solder terminals.

Low peak forward voltage of 1.3 V ensures efficient conduction. High thermal conductivity electrically insulated case enhances heat dissipation. Universal mounting options with center hole fixing for secure installation.

Peak reverse current limited to 10µA for high efficiency. Robust design engineered for industrial and power electronics use cases. Suitable for power rectification in electronics, industrial machinery, and HVAC systems. Explore more Bridge Rectifiers from Vishay and other leading brands on EnvMart for a wide range of industrial and electronic components.
