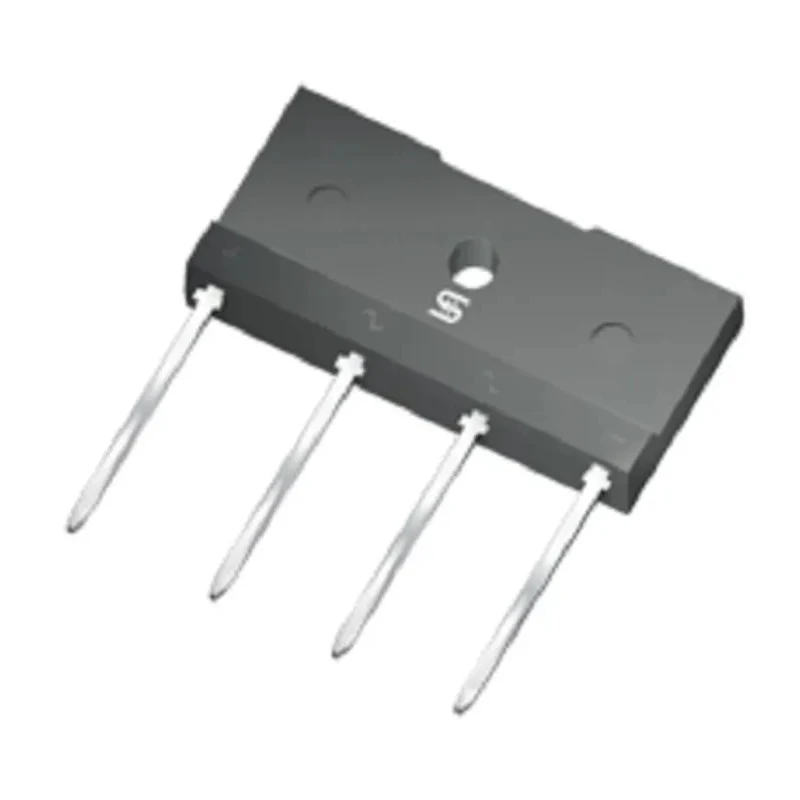

Taiwan Semiconductor Bridge Rectifier, 600 V Peak Reverse Voltage, 144 A Peak Surge Current, 4-Pin Quad T10JA05G-K

Free Delivery in India | Lowest Global Shipping Charges

Taiwan Semiconductor Bridge Rectifier, 600 V Peak Reverse Voltage, 144 A Peak Surge Current, 4-Pin Quad T10JA05G-K

Name: Taiwan Semiconductor Bridge Rectifier, 600 V Peak Reverse Voltage, 144 A Peak Surge Current, 4-Pin Quad T10JA05G-K
Brand: Taiwan Semiconductor
SKU: 310146
Price: 1746 INR
Availability: InStock



Category Bridge Rectifiers Brand Taiwan Semiconductor Condition New

Specifications

Country of Origin	India
Brand	Taiwan Semiconductor
Height	30mm
Length	29.3mm
Model	T10JA05G-K
Mount Type	Through Hole
Configuration	Quad
Maximum Operating Temperature	150°C
Package Type	TS-6PL
Minimum Operating Temperature	-55°C
Number of Phases	1
Standards/Approvals	RoHS, UL, IEC 61249-2-21
Pin Count	4
Peak Reverse Repetitive Voltage Vrrm	600V
Peak Reverse Current Ir	0μA
Peak Non-Repetitive Forward Surge Current Ifsm	144A
Forward Current If	10A
Peak Forward Voltage Vf	1.1V

Key Features

Rated peak reverse repetitive voltage (Vrrm) is 600 V.
Maximum forward continuous current (If) is 10 A.
High peak non-repetitive forward surge current (Ifsm) of 144 A.
Operates reliably within -55°C to 150°C temperature range.
Features low peak forward voltage drop of 1.1 V for efficiency.
Zero leakage peak reverse current ensuring minimal power loss at 0 μA.
Compact physical dimensions with length 29.3 mm and height 30 mm.
RoHS compliant and UL recognized, meeting IEC 61249-2-21 halogen-free standards.

Product Description

Taiwan Semiconductor T10JA05G-K Bridge Rectifier is a premium quality semiconductor device designed to convert AC to DC with high efficiency and reliability. This 4-pin quad configuration component is packaged in a TS-6PL through-hole mount type, ensuring compatibility with standard PCB layouts.

The rectifier supports a peak reverse repetitive voltage (Vrrm) of 600 V and a maximum forward continuous current (If) rating of 10 A, making it suitable for demanding power circuits. Its peak non-repetitive forward surge current (Ifsm) is rated at 144 A, enabling it to handle surge spikes reliably.

Operating temperature range spans from -55°C to 150°C, allowing use in harsh industrial and electronic environments. The device exhibits a minimal peak forward voltage drop of 1.1 V, contributing to high efficiency and reduced heat dissipation. Furthermore, the device's zero peak reverse leakage current (0 μA) minimizes energy loss and enhances circuit stability.

With compact dimensions of 29.3 mm length and 30 mm height, this bridge rectifier fits diverse electronic assemblies. It incorporates glass passivated chip junction technology to ensure longevity and robust performance.

Compliance with RoHS and UL standards, as well as adherence to IEC 61249-2-21 halogen-free directives, makes it a safe and environmentally friendly choice. The rectifier is ideal for applications in switching mode power supplies (SMPS), adapter circuits, and lighting systems.

Rated 600 V peak repetitive reverse voltage for high voltage handling. 10 A maximum forward current sustaining continuous load. 144 A surge current capacity for transient peak protection. Wide operating temperature range from -55°C to 150°C for industrial use.

Low forward voltage drop for energy efficiency. Zero leakage current ensuring long-term reliability. Compact TS-6PL package with through-hole mount. Robust glass passivated chip junction construction. RoHS compliant and UL recognized product.

Compatible with power conversion and lighting applications.

This product belongs to the Bridge Rectifiers category within Electronics & Electricals > Semiconductor, suitable for engineers and technicians seeking reliable rectification components. Explore additional Taiwan Semiconductor solutions and bridge rectifier variants at EnvMart for comprehensive power management needs.
