Microchip Digital Potentiometer Development Kit MCP402XEV

Free Delivery in India | Lowest Global Shipping Charges

Microchip Digital Potentiometer Development Kit MCP402XEV

Name: Microchip Digital Potentiometer Development Kit MCP402XEV
Brand: Microchip
SKU: 160226
Price: 60.76 USD
Availability: InStock



Category Digital Potentiometer Brand Microchip Condition New

Specifications

Country of Origin	India
Brand	Microchip
Model	MCP402XEV
Kit Classification	Development Kit
Sample firmware to interface the PIC10F206 with push buttons & the MCP402X	Interprets momentary switch inputs to determine what serial command to execute, Uses a high-speed oscillator output to create a low-cost charge pump for HV commands, PCB supports In-Circuit Serial Programming using the BFMP programming header
One populated PCB	MCP4021-103E/SN configured as a windowed potentiometer, PIC10F206-I/OT with firmware

Key Features

Populated PCB includes MCP4021-103E/SN digital pot configured with 2.5 kΩ pull-up and pull-down resistors.
Supports 8 pin SOIC, SOT-23-6, and SOT-23-5 MCP402X package variants.
Features PIC10F206-I/OT microcontroller for generating serial commands and firmware support.
Enables increment/decrement of wiper, EEPROM save, and WiperLock™ functionality.
Includes sample firmware interfacing push buttons with MCP402X.
Compact PCB size of 3.81 x 3.81 cm (1.5 x 1.5 inch).
Supports in-circuit serial programming using Microchip BFMP programming header.

Product Description

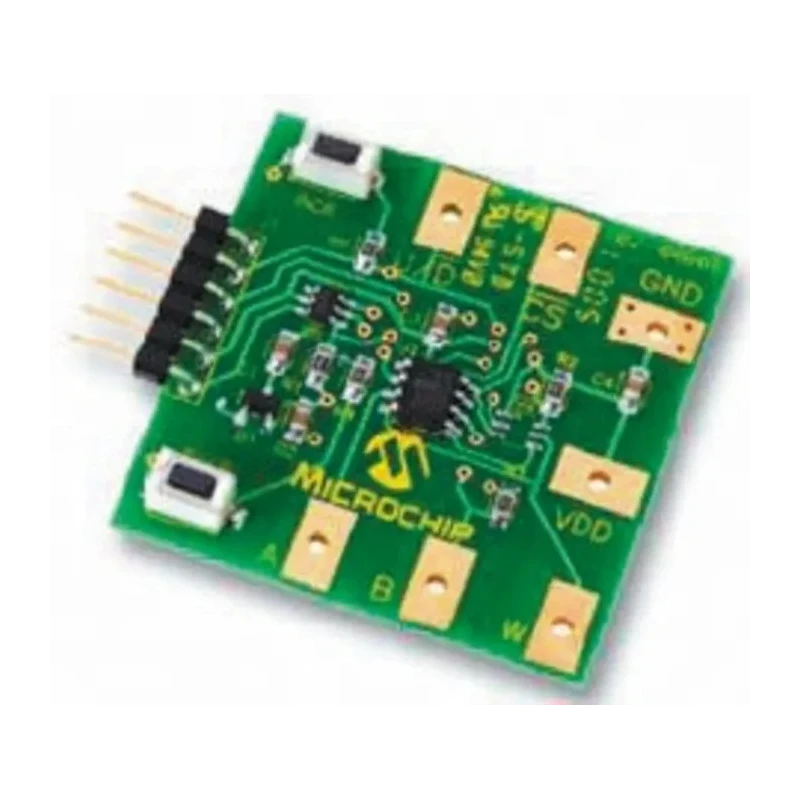

Microchip MCP402XEV digital potentiometer development kit provides an efficient platform to evaluate and utilize the MCP402X non-volatile digital potentiometer. This kit contains two printed circuit boards (PCBs). The first PCB is populated with an MCP4021-103E/SN digital potentiometer, configured as a windowed potentiometer utilizing 2.5 kΩ pull-up and pull-down resistors. It supports various MCP402X package types, including 8-pin SOIC, SOT-23-6, and SOT-23-5.

The kit employs a PIC10F206-I/OT microcontroller preloaded with firmware to generate low-voltage and high-voltage MCP402X serial commands through user interaction with two momentary switches. This firmware enables operations such as incrementing and decrementing the wiper position, saving wiper settings to EEPROM, and exercising the patented WiperLock™ feature.

The PCB supports standard In-Circuit Serial Programming (ICSP) through the Microchip BFMP low-cost programming header, facilitating easy programming and testing. Also included are sample firmware codes designed to interface the PIC10F206 microcontroller with push buttons and the MCP402X, interpreting switch inputs to execute corresponding serial commands. A high-speed oscillator output integrates a low-cost charge pump for high-voltage commands.

The unpopulated PCB allows rapid prototyping of MCP402X applications, making this kit versatile for development and testing. Designed with a compact footprint of 3.81 x 3.81 cm (1.5 x 1.5 inch), it is suitable for space-constrained environments.

Two PCB boards included, one populated and one unpopulated for prototyping. The populated PCB features the MCP4021-103E/SN digital potentiometer configured as a windowed potentiometer. Firmware for PIC10F206-I/OT microcontroller enables serial command generation and interaction through buttons.

Supports MCP4021/4022/4023/4024 models and multiple package variations. Compact and easy to integrate for power, motor control, and robotics development applications. Supports in-circuit programming via Microchip BFMP header.

This development kit is ideally suited for industrial electronics, power management, motor control, robotics, and embedded system applications. EnvMart’s catalog includes this high-quality Microchip MCP402XEV Digital Potentiometer development kit, ensuring trustworthy performance and ease of use.
