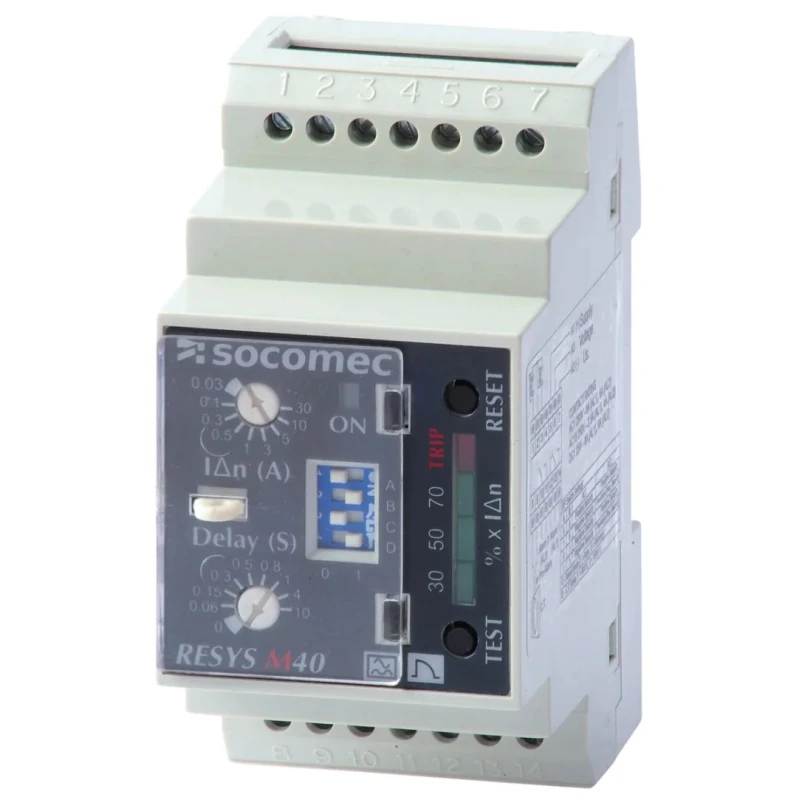

Socomec Earth Leakage Relay 47/63 Hz Frequency 0.03 mA to 30 A Leakage 2 Output 49413602

Socomec 49413602 Earth Leakage Relay is designed for precise leakage current monitoring in electrical systems, operating within a frequency range of 47/63 Hz and capable of detecting leakage currents from 0.03 mA up to 30 A. This new, modular device features 2 configurable relays which can be set for alarm or pre-alarm functions at 50% of the rated current (In).

The relay offers adjustable settings including current threshold and time delay from 0 to 10 seconds, providing flexibility and protection against nuisance tripping. Its positive or negative security is user-configurable, allowing customization based on application requirements.

The TRMS measurement method provides accurate tripping with improved immunity to electromagnetic interference, while the LED bargraph allows real-time monitoring of leakage currents. The compact design with 44 mm width enables easy installation in dedicated electrical enclosures, with screw terminals for secure connections.

Protection classes IP20 and IP40 ensure the device's durability in different environments. It complies with international standards IEC 60755, IEC 60947-2, IEC 61543 A1, and IEC 60664, underscoring its reliability and quality. Ideal for industrial, commercial, and institutional electrical safety applications, it operates efficiently across input voltages of 115, 230, and 400 V and supports contact currents up to 8 A.

Its operating temperature range from -20°C to 55°C permits use in diverse climate conditions. Socomec's RESYS M40 series Earth Leakage Relay enhances electrical protection systems by delivering precise and configurable leakage current detection.

Fully configurable with 2 relays having configurable functions. Adjustable current setting from 0.03 to 30 A for accurate leakage detection. Time delay adjustable between 0 to 10 seconds to prevent nuisance tripping. Compact modular design suitable for integration in dedicated enclosures.

Protected adjustment buttons with sealable cover to prevent tampering. LED bargraph displays real-time leakage current fluctuations. Improved immunity to electromagnetic disturbances and EMC interferences. IP20 and IP40 rated for suitable environmental protection.

Complies with IEC 60755, IEC 60947-2, IEC 61543 A1, and IEC 60664 standards. Operates within temperature range -20°C to 55°C for versatile applications. Explore the extensive range of Relays and contactors available at EnvMart for comprehensive electrical protection solutions.
