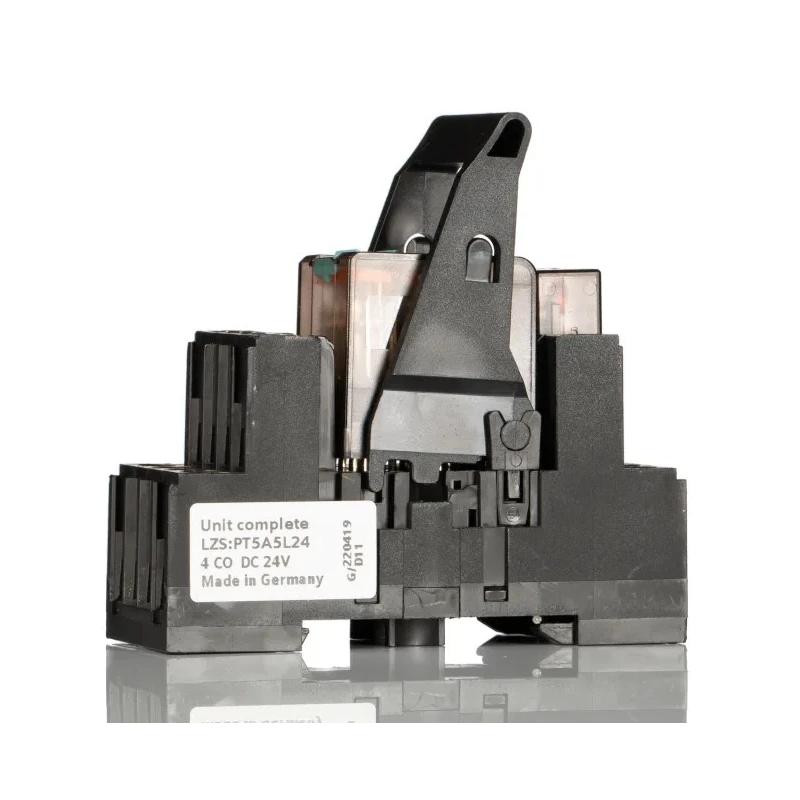

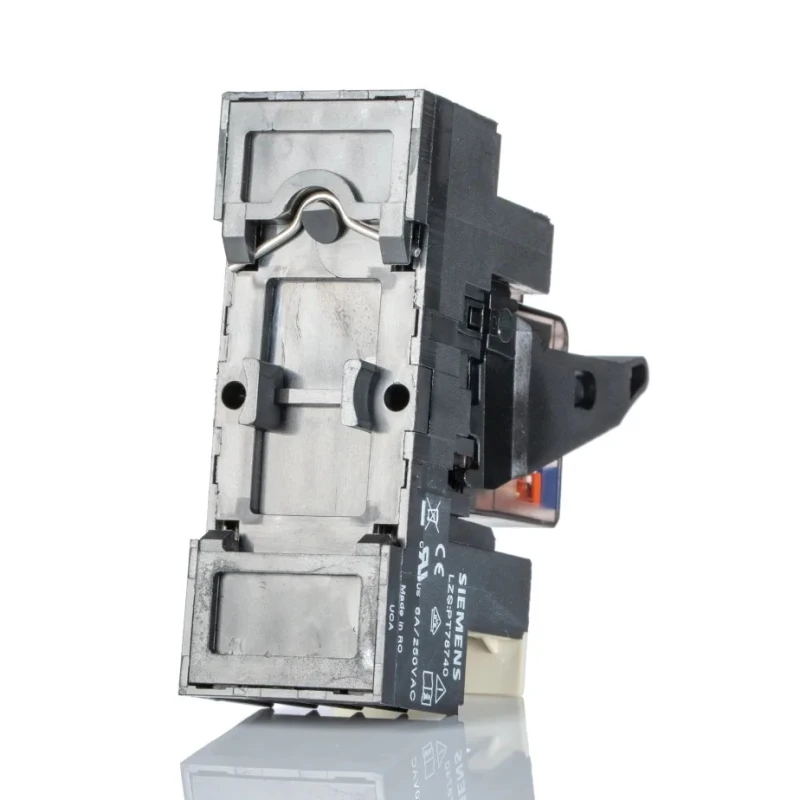

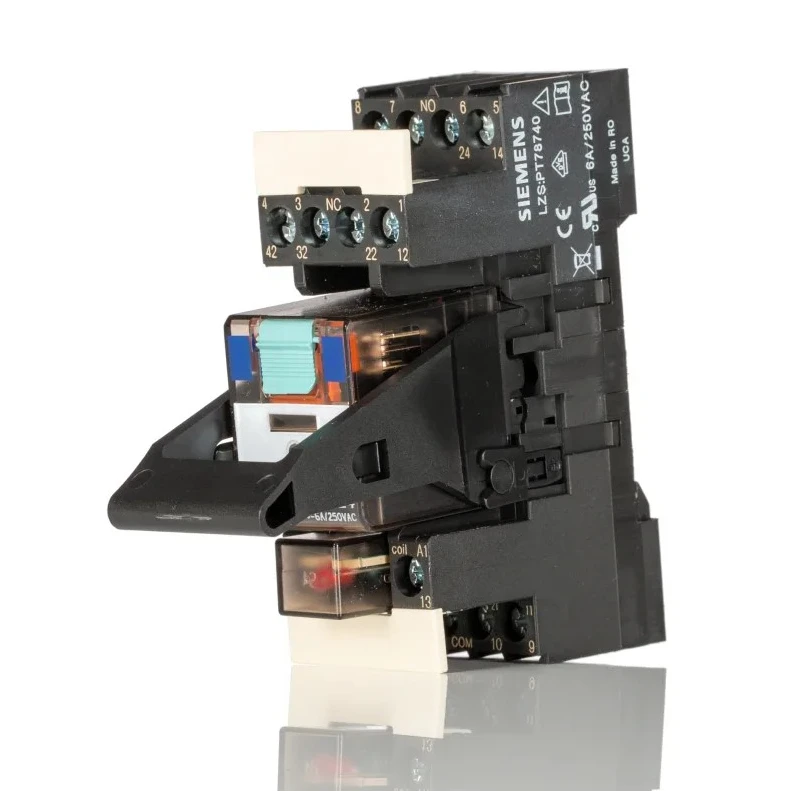

Siemens LZS Series Coupling Relay Plug-in 24V DC Coil 4PDT LZS:PT5A5L24

Siemens LZS:PT5A5L24 coupling relay is a plug-in electromechanical interface relay operating on a 24V DC coil voltage. This 4PDT (four-pole double-throw) relay features a silver alloy contact material known for high conductivity and durability, specifically designed to support various industrial automation applications. Its compact size of 74 x 27 x 28 mm facilitates easy integration into electrical panels and control systems.

The relay's plug-in module mount type simplifies installation and maintenance, making it ideal for environments requiring frequent replacement or system upgrades. Screw terminal connections ensure secure and reliable wiring, essential for maintaining consistent electrical performance in demanding operational conditions.

Capable of switching currents up to 6A at 24V DC, this relay handles moderate power loads effectively. It is engineered to operate in extreme temperature environments ranging from -40°C to +70°C, making it suitable for industrial machinery, automation, control systems, alarm and signalling devices, and interface circuits within electrical panels.

Certified with CE and EAC standards, the LZS:PT5A5L24 meets stringent safety and quality requirements relevant to global electrical and automation industries. Its robust construction and versatile features make it an essential component in the management and control of automated industrial processes.

Features a 4PDT contact configuration enabling versatile circuit connections. Plug-in mount type allows easy installation and maintenance. Screw terminal type ensures secure and stable wiring connections. Coil voltage rated at 24V DC suitable for a variety of control systems.

Reliable switching current capacity of 6A at 24V DC for power load control. Operates effectively across a temperature range from -40°C to +70°C. Silver alloy contact material improves conductivity and durability under load.

Compact dimensions of approximately 74mm height, 27mm length, and 28mm width. Certified to CE and EAC standards confirming safety and operational compliance.

This Siemens LZS Series Coupling Relay is recommended for industrial, manufacturing, electrical panel, and automation industry applications requiring dependable switching and control capabilities. Explore our catalog for additional Siemens Relays and electromechanical interface components tailored to your project needs.
