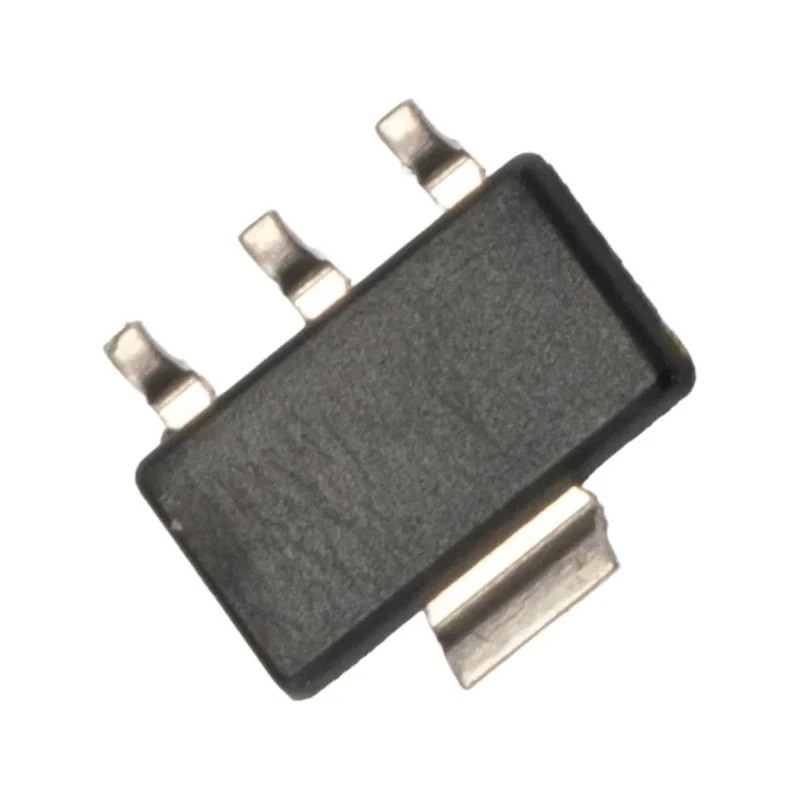

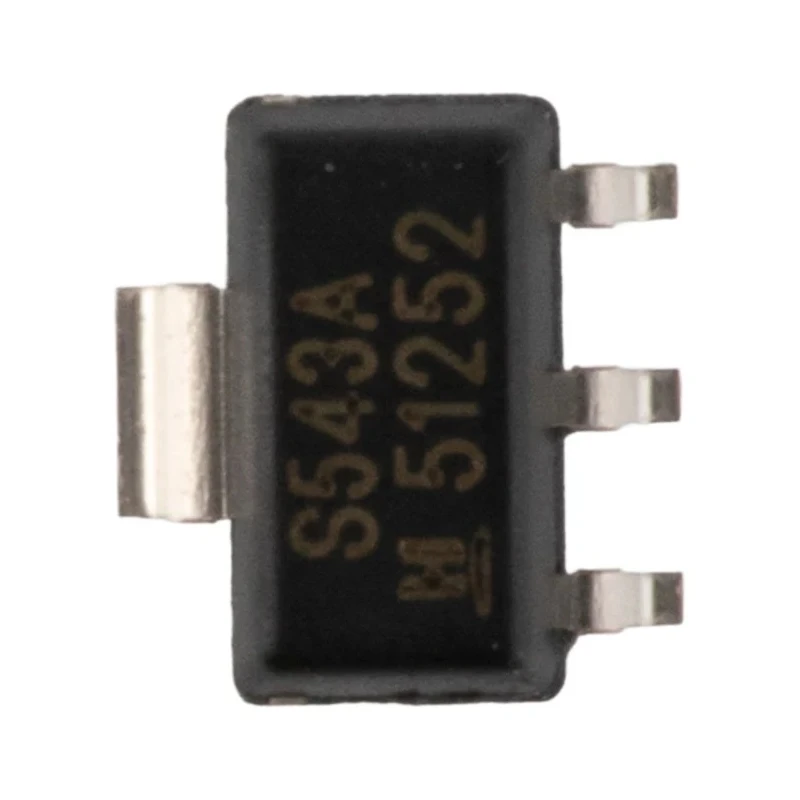

Honeywell Technologies Surface Hall Effect Sensor Digital Interface 3-Pin SOT-89 Package SS543AT
Specifications
| Country of Origin | India |
|---|---|
| Brand | Honeywell |
| Height | 3mm |
| Length | 4.06mm |
| Model | SS543AT |
| Technology | Quad-Hall, Temperature-Compensated Magnet |
| Sensor Type | Hall Effect |
| Width | 1.57mm |
| Mount Type | Surface |
| Series | SS500 |
| Maximum Operating Temperature | 150°C |
| Package Type | SOT-89 |
| Minimum Operating Temperature | -40°C |
| Interface Type | Digital |
| Pin Count | 3 |
| Maximum Supply Voltage | 30V dc |
| Minimum Supply Voltage | 3.8V dc |
| Supply Current | 20mA |
| Magnetic Type | Unipolar |
Key Features
- Operates over a voltage range of 3.8 V to 30 V dc for versatile usage.
- Compact 3 mm height SOT-89 surface-mount package with 3 pins.
- Digital interface ensures straightforward integration in electronic circuits.
- Temperature compensation allows operation from -40°C up to 150°C.
- Unipolar magnetic sensor suitable for single polarity magnetic field detection.
- Draws nominal supply current of 20 mA for predictable power consumption.
- Ideal for rotary position sensing and proximity detection in automation systems.
- Robust design allows use in high-temperature industrial environments.
Product Description
Honeywell SS543AT is a surface-mount Hall Effect Sensor from the SS500 series, featuring a compact 3 mm height SOT-89 package and a 3-pin digital interface. It operates with a wide supply voltage range of 3.8 V to 30 V dc, accommodating diverse electronic and industrial applications requiring reliable magnetic field sensing.
This unipolar sensor detects magnetic fields of a single polarity, providing a stable digital output suitable for position detection and switching tasks. The device is temperature-compensated to function reliably under extreme conditions from -40°C to 150°C, ensuring suitability in harsh industrial and automotive environments.
The sensor draws a steady 20 mA supply current, facilitating predictable power budgeting in system designs. Its surface-mount package with small footprint dimensions (3 mm height, 4.06 mm length, and 1.57 mm width) supports efficient PCB layout in compact electronics.
Applications include rotary position sensing in automation systems, proximity detection in electrical panels and enclosures, motor control circuits for non-contact commutation feedback, and potential use as a limit-switch replacement in mechanical assemblies.
The SS543AT's robust build and extended temperature range make it highly versatile for industrial, electronic, automation, and manufacturing environments requiring accurate and stable magnetic sensing solutions.
Operates over a voltage range of 3.8 V to 30 V dc for versatile usage. Compact 3 mm height SOT-89 surface-mount package with 3 pins. Digital interface ensures straightforward integration in electronic circuits. Temperature compensation allows operation from -40°C up to 150°C.
Unipolar magnetic sensor suitable for single polarity magnetic field detection. Draws nominal supply current of 20 mA for predictable power consumption. Ideal for rotary position sensing and proximity detection in automation systems.
Robust design allows use in high-temperature industrial environments. Explore the full range of Honeywell sensor products and industrial electronics at EnvMart for your automation and sensing requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The SS543AT operates over a voltage range of 3.8 V to 30 V dc, making it suitable for various electronic applications.
The SOT-89 package of the SS543AT has a height of 3 mm, a length of 4.06 mm, and a width of 1.57 mm.
The maximum operating temperature for the SS543AT is 150°C, allowing it to function in high-temperature environments.
This model is a unipolar magnetic sensor, designed to detect magnetic fields of a single polarity.
The SS543AT draws a nominal supply current of 20 mA, which aids in predictable power consumption in circuit designs.
The minimum operating temperature for the SS543AT is -40°C, enabling its use in extreme cold conditions.
The SS543AT features a digital interface, facilitating straightforward integration into electronic circuits.
This sensor is ideal for rotary position sensing, proximity detection in electrical panels, and motor control circuits.
The SS543AT has a 3-pin configuration, suitable for surface mounting.
It employs Quad-Hall technology and is temperature-compensated for reliable operation across a wide temperature range.
Temperature compensation allows the SS543AT to operate reliably from -40°C to 150°C, ensuring accurate performance in varying thermal conditions.
The SS543AT is manufactured in India, as indicated by its country of origin.
