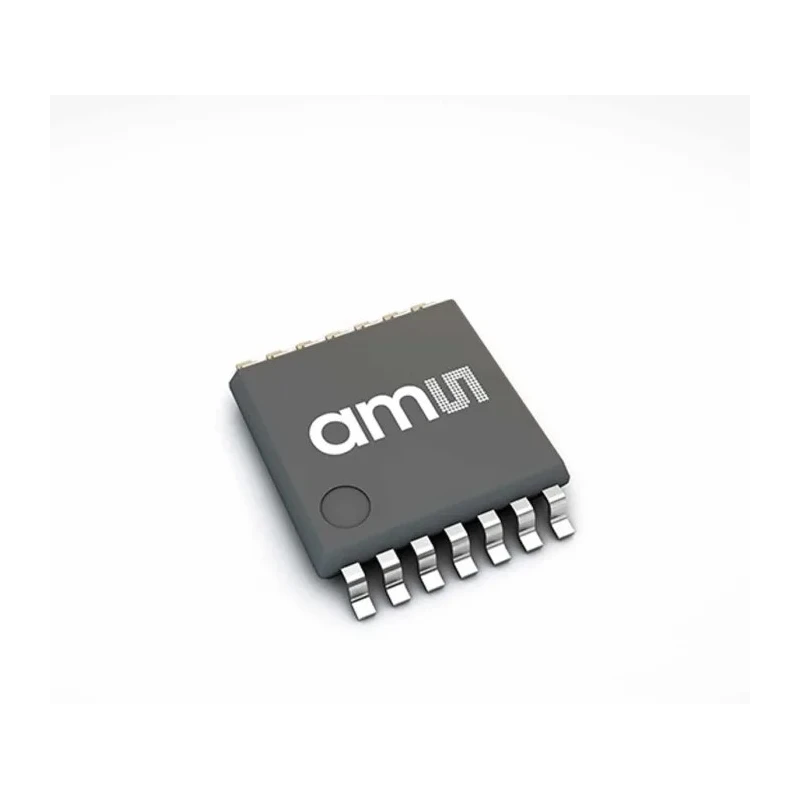

ams OSRAM AS5047U-HTSM Series Magnetic Hall Effect Sensor 5.5V, 1024 ppr, Analogue Signal AS5047U-HTSM

Free Delivery in India | Lowest Global Shipping Charges

ams OSRAM AS5047U-HTSM Series Magnetic Hall Effect Sensor 5.5V, 1024 ppr, Analogue Signal AS5047U-HTSM

Name: ams OSRAM AS5047U-HTSM Series Magnetic Hall Effect Sensor 5.5V, 1024 ppr, Analogue Signal AS5047U-HTSM
Brand: ams OSRAM
SKU: 163582
Price: 9.6 USD
Availability: InStock



Category Hall Effect Sensor Brand ams OSRAM Condition New

Specifications

Country of Origin	Austria
Brand	ams OSRAM
Model	AS5047U-HTSM
Series	AS5047U-HTSM
Maximum Operating Temperature	150°C
Minimum Operating Temperature	-40°C
Switching Frequency	3059Hz
Interface Type	SPI, UVW, PWM
Pulses per Revolution	1024ppr
Standards/Approvals	AEC-Q100-002, IPC/JEDEC J-STD-020, AEC-Q100-004
Maximum Supply Voltage	5.5V
Encoder Technology	Magnetic
Maximum Revolutions	4096rpm
Output Signal Type	Analogue

Key Features

This sensor provides analogue output signal suitable for various motion control applications.
It supports SPI, UVW, and PWM interfaces for flexible digital communication.
Maximum operational speed reaches up to 4096 rpm, enabling high-speed measurements.
Built to withstand temperatures from -40°C to 150°C for demanding environments.
Includes advanced features like dynamic angle error compensation and dynamic filter system for enhanced signal accuracy and noise reduction.
It is robust against external stray magnetic fields, ensuring reliable sensing performance.
Complies with automotive and industrial standards including AEC-Q100 and IPC/JEDEC J-STD-020.

Product Description

ams OSRAM AS5047U-HTSM Series Magnetic Hall Effect Sensor operates at a maximum supply voltage of 5.5V, offering precise absolute angle measurement across a full 360-degree range.

This high-resolution rotary position sensor is equipped with revolutionary integrated dynamic angle error compensation (DAEC™) technology that virtually eliminates latency at high rotational speeds.

The dynamic filter system (DFS™) helps reduce transition noise, improving signal quality at lower speeds. Its robust design suppresses the influence of homogenous external stray magnetic fields, increasing reliability in industrial and automation applications.

The AS5047U features a standard 4-wire SPI serial interface with CRC protection to communicate 14-bit absolute angle position data, and supports non-volatile programming without requiring a dedicated programmer.

Incremental motion detection is indicated with ABI signals, supporting up to 16989 steps and 4096 pulses per revolution. The sensor is certified to meet automotive-grade and industrial standards including AEC-Q100 and IPC/JEDEC J-STD-020.

This sensor is ideal for applications in industrial automation, robotics, motor control, HVAC systems, and manufacturing equipment requiring precise angle and position detection in harsh environments.

This sensor provides analogue output signal suitable for various motion control applications. It supports SPI, UVW, and PWM interfaces for flexible digital communication. Maximum operational speed reaches up to 4096 rpm, enabling high-speed measurements.

Built to withstand temperatures from -40°C to 150°C for demanding environments. Includes advanced features like dynamic angle error compensation and dynamic filter system for enhanced signal accuracy and noise reduction.

It is robust against external stray magnetic fields, ensuring reliable sensing performance. Complies with automotive and industrial standards including AEC-Q100 and IPC/JEDEC J-STD-020. Explore more products in the Hall Effect Sensor category at EnvMart for advanced sensing and automation solutions.
