DiodesZetex Surface Mount Hall Effect Sensor 3 V to 28 V, SIP Package, 3-Pin AH3391Q-P-B

Free Delivery in India | Lowest Global Shipping Charges

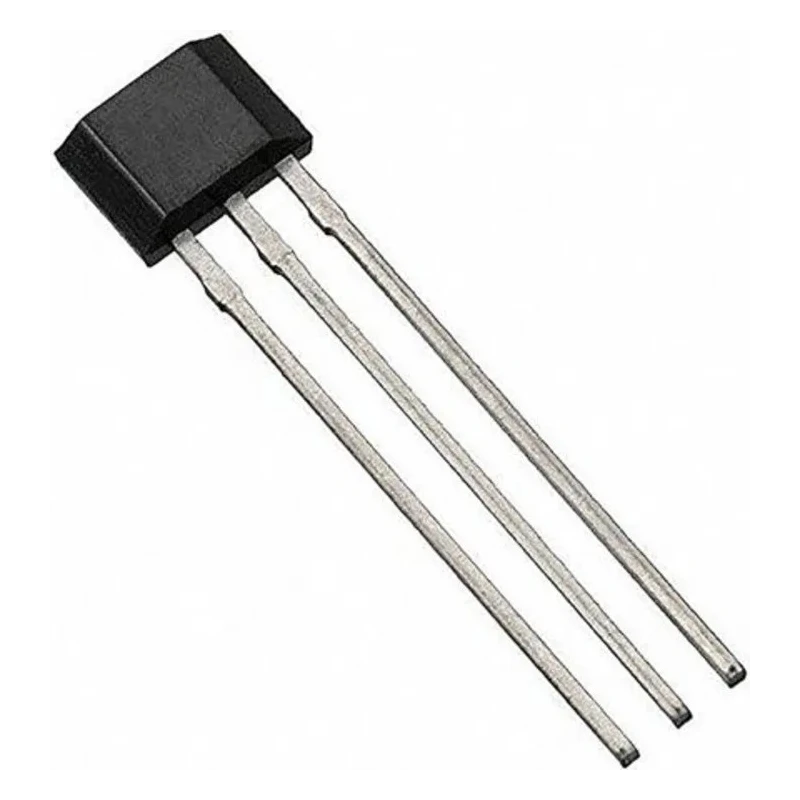

DiodesZetex Surface Mount Hall Effect Sensor 3 V to 28 V, SIP Package, 3-Pin AH3391Q-P-B

Name: DiodesZetex Surface Mount Hall Effect Sensor 3 V to 28 V, SIP Package, 3-Pin AH3391Q-P-B
Brand: DiodesZetex
SKU: 147271
Price: 0.84 USD
Availability: InStock



Category Hall Effect Sensor Brand DiodesZetex Condition New

Specifications

Country of Origin	India
Brand	DiodesZetex
Response time	3.75μs
Height	1.6mm
Length	4.3mm
Model	AH3391Q-P-B
Technology	Chopper Stabilised
Sensor Type	Hall Effect Sensors
Width	3.2mm
Mount Type	Surface
Series	AH3391Q
Maximum Operating Temperature	150°C
Package Type	SIP
Minimum Operating Temperature	-40°C
Standards/Approvals	RoHS
Pin Count	3
Automotive Standard	AEC-Q100
Maximum Supply Voltage	28V
Minimum Supply Voltage	3V
Supply Current	4mA
Magnetic Type	Unipolar
Maximum Frequency Response	800kHz

Key Features

The sensor features chopper stabilised technology for enhanced signal stability.
Designed for unipolar magnetic field detection with a rapid response time of 3.75 microseconds.
Operates reliably over a wide temperature range from -40°C to 150°C.
Compact SIP package measures 4.3 mm length, 3.2 mm width, and 1.6 mm height for easy PCB mounting.
Compliant with RoHS standards and automotive AEC-Q100 qualification.
Maximum frequency response of 800 kHz suitable for fast-switching applications.
Low supply current consumption at 4 mA to optimize power efficiency.

Product Description

DiodesZetex AH3391Q-P-B is a surface mount Hall Effect sensor IC designed for precise position and proximity sensing in industrial, automotive, and electronic applications. It operates over a supply voltage range of 3 V to 28 V and is packaged in a small, 3-pin SIP housing for easy PCB integration.

This sensor utilizes chopper stabilised technology, significantly improving output signal stability and reducing offset drift, making it well-suited for applications requiring consistent magnetic field detection.

It detects unipolar magnetic fields with a fast response time of 3.75 microseconds and can handle a maximum frequency response of up to 800 kHz, enabling its use in high-speed switching environments.

The AH3391Q-P-B sensor maintains reliable operation in harsh environmental conditions, with a minimum operating temperature of -40°C and a maximum operating temperature of 150°C, serving automotive and industrial standards, including the AEC-Q100 automotive qualification.

Its compact SIP package dimensions allow for efficient PCB space utilization, measuring 4.3 mm in length, 3.2 mm in width, and 1.6 mm in height. The sensor draws only 4 mA supply current, making it suitable for low-power designs.

This device is RoHS compliant, ensuring eco-friendly manufacturing and disposal. It is ideal for use in electronic circuits requiring non-contact magnetic field sensing, such as speed detection, switch actuation, and linear position sensing.

The sensor features chopper stabilised technology for improved signal stability. Rapid response time of 3.75 microseconds for fast magnetic field detection. Wide operating temperature range from -40°C to +150°C supports diverse environments.

Compact SIP 3-pin package simplifies PCB mounting and integration. Low supply current consumption enhances overall system power efficiency. Maximum frequency response of 800 kHz enables high-speed switching applications.

Automotive AEC-Q100 compliant for use in automotive electronics.

Explore the comprehensive range of DiodesZetex Hall Effect Sensors and other sensor ICs at EnvMart for your precise sensing and motion detection needs in electronics and industrial automation.
