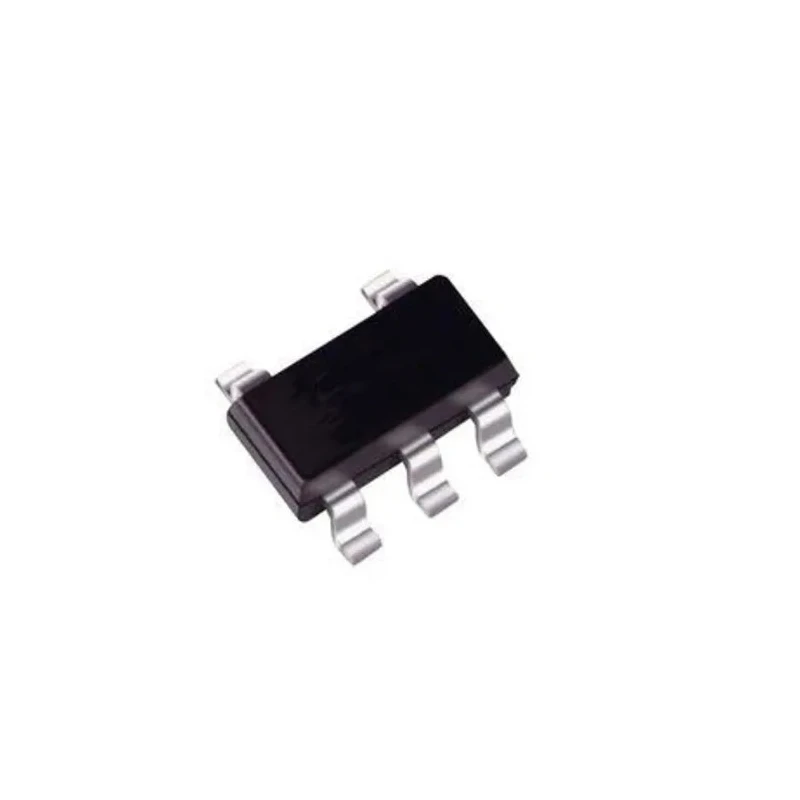

DiodesZetex 1 1-Input Inverter Schmitt Trigger 5-Pin SOT-323 Logic IC 74AHCT1G14QSE-7

DiodesZetex 74AHCT1G14QSE-7 1-Input Inverter Schmitt Trigger Logic IC is a high-performance semiconductor device designed for industrial and automotive applications. Housed in a compact 5-pin SOT-323 surface mount package, this logic gate provides reliable inverter functionality with Schmitt Trigger input, enhancing noise immunity and signal integrity.

Operating over a voltage range of 4.5V to 5.5V, it supports a broad ambient temperature range from -40°C to 125°C, making it suitable for harsh automotive environments compliant with AEC-Q100 standards. The device features balanced propagation delays to ensure synchronous digital signal timing and balanced drive capability for consistent output behavior.

The 74AHCT1G14QSE-7 inverter provides push-pull outputs with maximum low level and high level currents of 8mA and -8mA respectively, and it exhibits a maximum propagation delay time of 11 nanoseconds under typical load conditions. Its small physical footprint (2.2mm by 1mm) is ideal for compact printed circuit board layouts used in electronic components manufacturing, power and connector modules, and semiconductor applications.

This logic inverter is particularly applicable in automotive electronic control units, industrial automation systems, and consumer electronic device circuits requiring noise-immune signal inversion logic. The device’s surface mount packaging allows for efficient automated PCB assembly processes.

The device features a Schmitt Trigger input for improved noise immunity. Operates within a supply voltage range of 4.5V to 5.5V for flexible system integration. Balanced propagation delays and drive capabilities support synchronized logic signal timing.

Automotive compliant to AEC-Q100 standard for enhanced reliability under automotive stress conditions. Compact 5-pin SOT-323 surface mount package for space-saving PCB design. Wide operating temperature range from -40°C to +125°C for robust performance.

Maximum propagation delay time is 11 nanoseconds at typical load capacitance. Push-pull output stage supports steady current drive capability.

For engineers and procurement specialists, this DiodesZetex logic IC offers dependable inverter functionality with enhanced noise immunity suitable for demanding industrial and automotive environments. Explore our extensive catalog of Logic Gates and semiconductor components at EnvMart for efficient sourcing and application.
