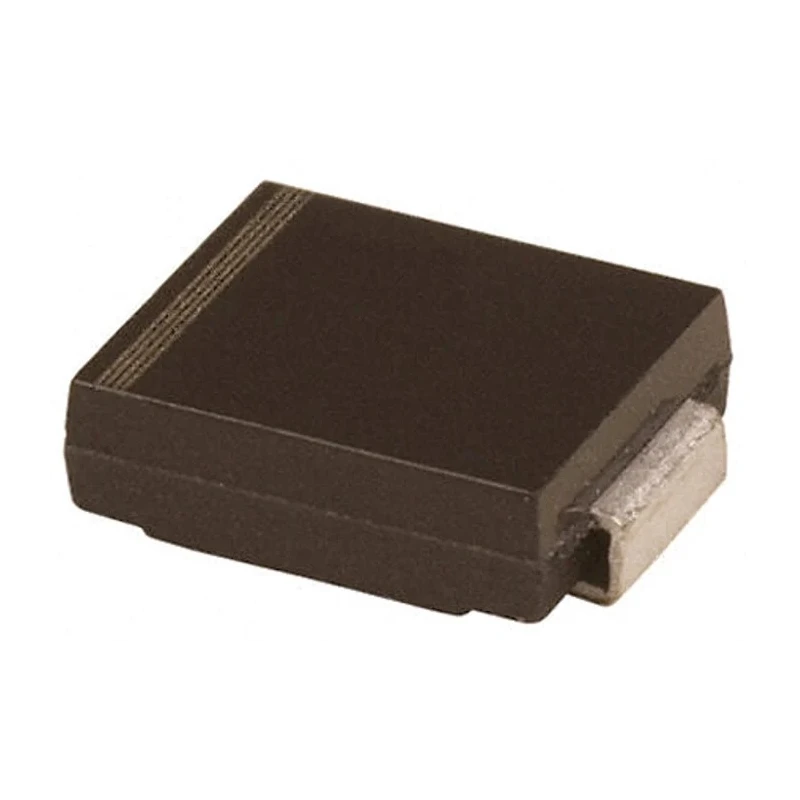

HY Electronic Corp 100 V 3 A Surface Mount Schottky Barrier Rectifier Diode 2-Pin DO-214AB SS310
Specifications
| Country of Origin | China |
|---|---|
| Brand | HY Electronic Corp |
| Height | 2.41mm |
| Length | 7.11mm |
| Model | SS310 |
| Width | 6.22mm |
| Mount Type | Surface |
| Series | FBI |
| Maximum Operating Temperature | 150°C |
| Package Type | DO-214AB (SMC) |
| Minimum Operating Temperature | -55°C |
| Polarity | indicated by cathode band |
| Pin Count | 2 |
| Maximum Continuous Forward Current If | 3A |
| Peak Reverse Repetitive Voltage Vrrm | 100V |
| Diode Configuration | Single |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 20mA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 80A |
| Maximum Forward Voltage Vf | 850mV |
| Moulded Plastic Case (Plastic | flammability classification UL 94V-0) |
Key Features
- This diode has a low forward voltage drop of 850 mV ensuring efficient performance.
- It operates in a temperature range from -55°C up to 150°C for reliable industrial applications.
- The peak non-repetitive forward surge current rating is 80 A suitable for transient protection.
- Constructed with an epitaxial design and metal-semiconductor junction for durability.
- The polarity is clearly indicated by a cathode band for easy installation.
- The molded plastic case meets UL 94V-0 flammability standard for safety compliance.
- Ideal for use in free-wheeling, inverters, and polarity protection circuits.
Product Description
HY Electronic Corp SS310 is a Schottky Barrier Rectifier Diode designed for surface mount applications with a 2-pin DO-214AB (SMC) package. It supports a maximum continuous forward current of 3 A and a peak reverse repetitive voltage of 100 V, making it suitable for power rectification and switching circuits in industrial, electronic component, and semiconductor applications.
This diode features a low forward voltage drop of 850 mV, reducing power loss and improving efficiency. It also withstands a peak non-repetitive forward surge current of 80 A, allowing it to handle transient surges effectively. The device operates reliably across a wide temperature range from -55°C to 150°C, making it robust for harsh industrial environments.
The device construction uses an epitaxial metal-semiconductor junction with guarding to enhance performance and reliability. The molded plastic case complies with UL 94V-0 flammability classification, ensuring safety in various electrical applications. The polarity is clearly marked by a cathode band to aid proper installation.
Dimensions of the diode are compact at 7.11 mm length, 6.22 mm width, and 2.41 mm height, facilitating space-saving PCB layouts. Typical applications include free-wheeling diodes, inverters, and polarity protection circuits in power electronics and manufacturing equipment.
Low forward voltage drop for efficient power management. High surge current rating for transient protection. Wide operating temperature range for industrial reliability. Molded plastic case with UL 94V-0 flammability rating.
Clear polarity marking for error-free installation. Compact DO-214AB package for surface mount technology. Metal-semiconductor junction epitaxial construction for performance. Suitable for industrial, manufacturing, and electronic component use cases.
Discover a wide range of Schottky Diode products like the HY Electronic Corp SS310 at EnvMart to meet your semiconductor and power electronics needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current for this model is 3 A.
This diode has a peak reverse repetitive voltage rating of 100 V.
The forward voltage drop for this diode is 850 mV.
It operates within a temperature range from -55°C to 150°C.
The peak non-repetitive forward surge current rating is 80 A.
The dimensions of this model are 7.11 mm in length, 6.22 mm in width, and 2.41 mm in height.
This diode is packaged in a DO-214AB (SMC) surface mount package.
The polarity is indicated by a cathode band on the diode, facilitating easy installation.
The molded plastic case complies with the UL 94V-0 flammability classification.
This diode is suitable for applications such as free-wheeling, inverters, and polarity protection circuits.
This model is a Schottky Barrier Rectifier Diode.
The peak reverse current rating is 20 mA.
