DiodesZetex 1 2-Input AND Schmitt Trigger Input Logic Gate, Surface Mount, 5-Pin SOT-25 Package 74AHC1G08W5-7

The DiodesZetex 74AHC1G08W5-7 is a highly reliable 1 2-input AND logic gate with Schmitt trigger inputs, specifically designed for surface mount applications. Featuring a compact 5-pin SOT-25 package, this logic IC provides noise-immune input processing by utilizing Schmitt trigger technology which is essential for maintaining signal integrity in noisy industrial environments.

Operating under the AHC logic family, this device offers stable switching characteristics with a maximum propagation delay of 10.5 ns at a load capacitance of 15 pF, making it suitable for high-speed digital circuit applications. It supports a wide operating voltage range from 2 V to 5.5 V, allowing for flexible integration in systems requiring low voltage operation.

The device supports outputs with push-pull type configuration, providing both sourcing and sinking currents with maximum high-level output current of -8 mA and low-level output current of 4 mA, thus enabling drive of a wide variety of loads. The operating temperature range from -40°C up to 125°C guarantees reliable performance under harsh temperature conditions typical in industrial and commercial environments.

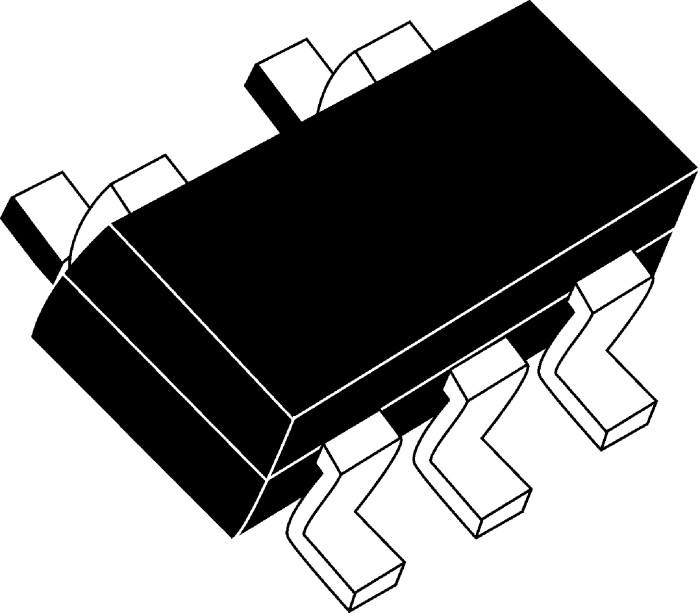

Its compact dimensions (3.1 mm length and 1.3 mm height) and surface mount design make the 74AHC1G08W5-7 ideal for automated PCB assembly processes and dense PCB designs, thereby optimizing printed circuit board space utilization.

This logic gate is commonly used in industrial automation, electronic control systems, prototyping, and production circuit boards that require dependable logic operations combined with fast response and noise immunity.

Single 2-Input AND gate with Schmitt trigger inputs for improved noise rejection. Surface mount 5-pin SOT-25 package for compact installations. Low supply voltage operation from 2 V to 5.5 V suitable for modern electronics.

Fast switching speed with propagation delay as low as 10.5 ns. Wide temperature operation range from -40°C to 125°C for industrial use. Push-pull output supports versatile load driving requirements. Compact size facilitates dense PCB layouts and automated assembly.

Manufactured in China adhering to quality standards.

For engineers and designers requiring robust, compact logic gates with enhanced input signal conditioning, the DiodesZetex 74AHC1G08W5-7 offers a proven solution extensively used in semiconductor logic IC applications. Explore other DiodesZetex Logic Gates and related semiconductor components available on EnvMart to complete your electronic design requirements.
