DiodesZetex 1 1-Input Inverter Logic Gate, 5-Pin SOT-25 Package 74LVC1G06QW5-7

Free Delivery in India | Lowest Global Shipping Charges

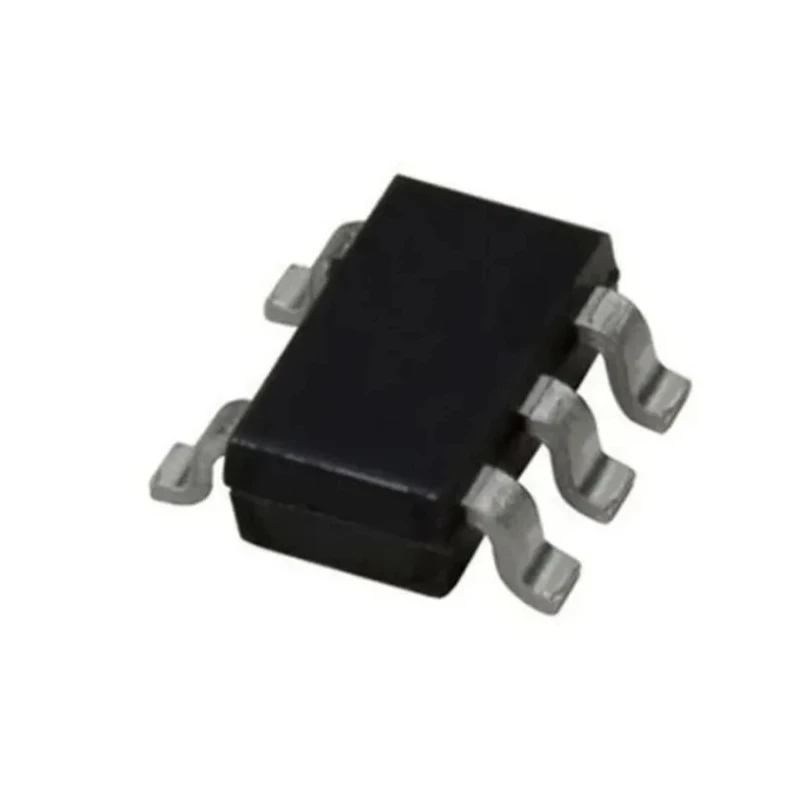

DiodesZetex 1 1-Input Inverter Logic Gate, 5-Pin SOT-25 Package 74LVC1G06QW5-7

Name: DiodesZetex 1 1-Input Inverter Logic Gate, 5-Pin SOT-25 Package 74LVC1G06QW5-7
Brand: DiodesZetex
SKU: 286314
Price: 0.08 USD
Availability: InStock



Category Logic ICs Brand DiodesZetex Condition New

Specifications

Country of Origin	India
Brand	DiodesZetex
Height	1.15mm
Length	3.1mm
Model	74LVC1G06QW5-7
Mount Type	Surface
Output type	Open Drain
Input Type	CMOS
Maximum Operating Temperature	125°C
Package Type	SOT-25
Minimum Operating Temperature	-40°C
Pin Count	5
Number of Elements	1
Automotive Standard	AEC-Q100
Maximum Supply Voltage	5.5V
Logic Family	LVC
Logic Function	Inverter
Minimum Supply Voltage	1.65V
Maximum Propagation Delay Time @ CL	5ns
Maximum Low Level Output Current	32mA
Number of Inputs per Gate	1

Key Features

This inverter logic gate features a CMOS input type for low power consumption.
It operates within a voltage range of 1.65V to 5.5V, suitable for low voltage systems.
The component supports operating temperatures from -40°C up to 125°C, ensuring reliability in harsh environments.
The package dimensions include a compact size with a length of 3.1mm and height of 1.15mm.
It offers a maximum propagation delay time of 5ns under specified load conditions.
Open drain output type facilitates voltage level shifting and power-down signal isolation.
The device complies with the automotive standard AEC-Q100, indicating automotive-grade quality and ESD protection.
Maximum low level output current is rated at 32mA, suitable for various logic interfacing.

Product Description

DiodesZetex 74LVC1G06QW5-7 is a high-performance 1 1-input inverter logic gate housed in a 5-pin SOT-25 surface mount package. This CMOS-based logic gate operates within a broad voltage supply range from 1.65V to 5.5V, making it suitable for various low-voltage electronic applications. Designed for industrial and automotive use, it meets the stringent requirements of the AEC-Q100 automotive standard providing enhanced reliability and electrostatic discharge (ESD) protection tested to automotive standards.

With an operating temperature range from -40°C to +125°C, this inverter gate is well-suited for harsh environments including automotive, industrial control systems, and power management applications. Its 5ns maximum propagation delay ensures rapid signal processing, critical for timing-sensitive applications.

The open drain output configuration supports voltage level shifting and power-down signal isolation, enabling its use in complex mixed-voltage systems. Its compact surface mount SOT-25 package (3.1mm length x 1.15mm height) allows space-saving PCB layouts and efficient automated assembly.

Common applications include automotive electronics, power management circuits, signal isolation, and general logic inversion tasks in industrial automation and control systems. It is optimized for low supply current and offers a maximum low-level output current of 32mA, enhancing its versatility across diverse logic circuits.

Key features of the DiodesZetex 74LVC1G06QW5-7 inverter gate support design engineers in developing robust and reliable boards for automotive and industrial sectors, combining compact package size, automotive compliance, and quick signal inversion.

This product is offered new and complies with industry standards for quality and reliability. Ideal for electronic component inventories requiring surface-mount logic ICs with inverter function. It is a single element device with one input per gate for straightforward logic inversion needs.

Explore EnvMart for a comprehensive range of semiconductor components including Logic ICs from leading brands like DiodesZetex for your next industrial automation or automotive electronics project.
