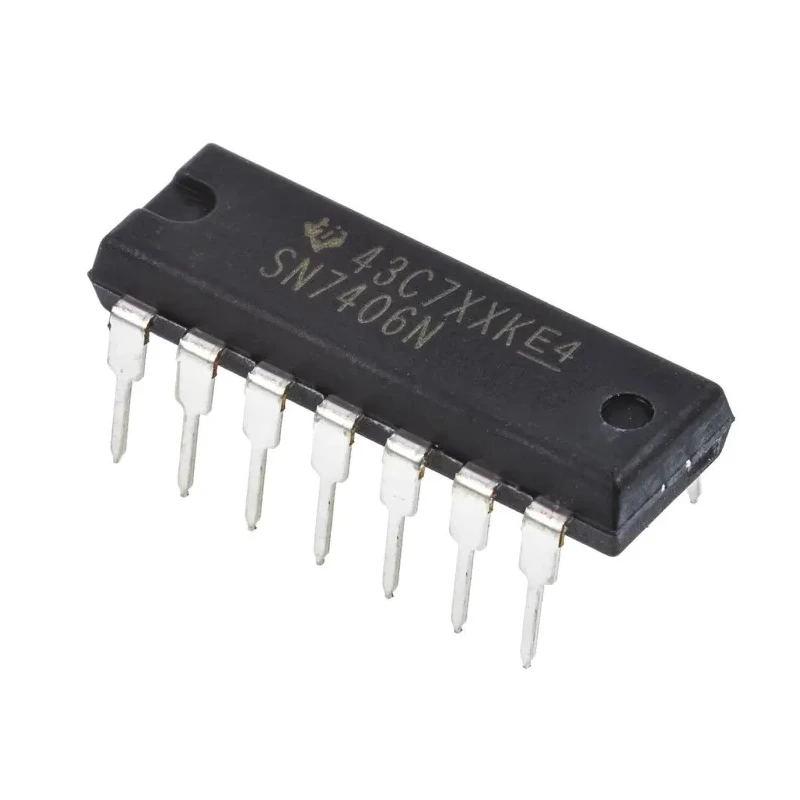

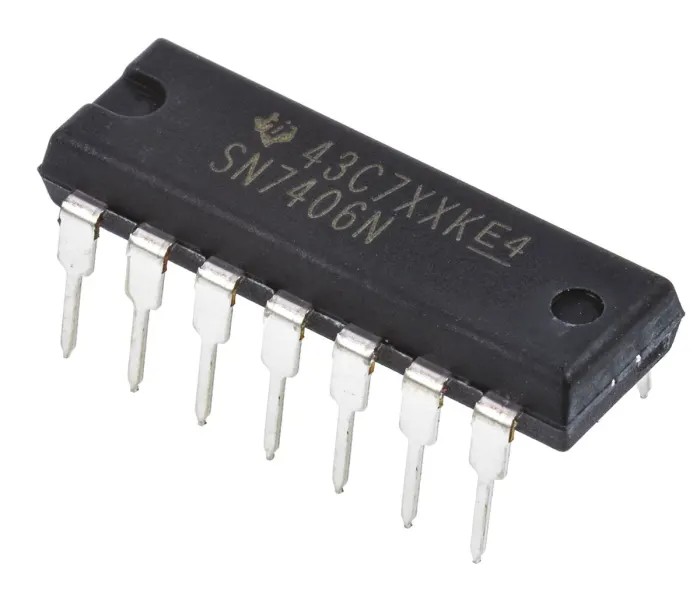

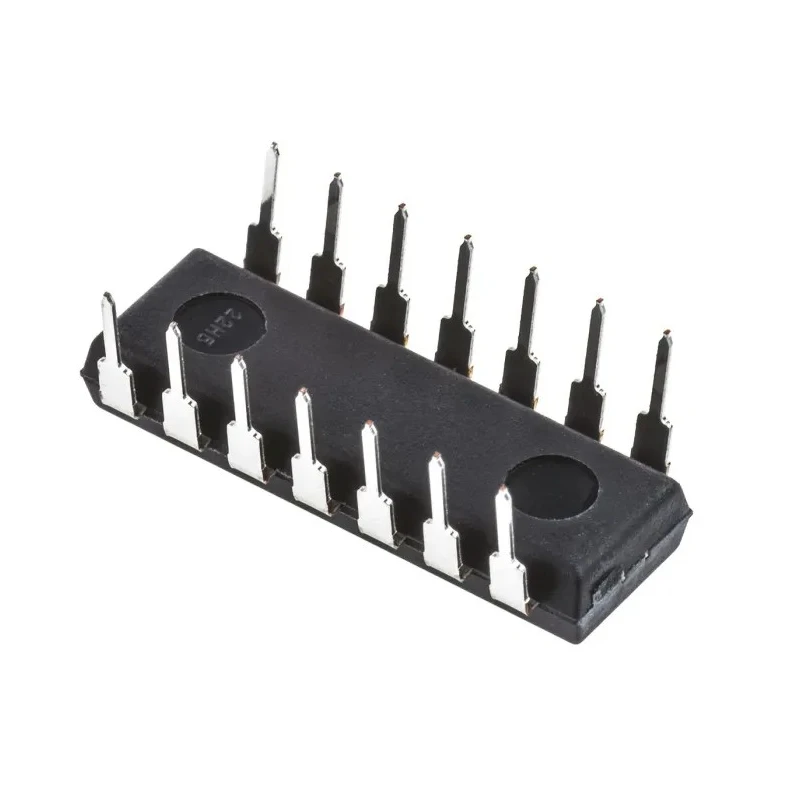

Texas Instruments SN7406N Inverter IC, 6-Channel TTL Open Collector, 14-Pin PDIP
Specifications
| Country of Origin | Malaysia |
|---|---|
| Brand | Texas Instruments |
| Height | 4.57mm |
| Length | 19.3mm |
| Model | SN7406N |
| Width | 6.35mm |
| Mount Type | Through Hole |
| Output type | Open Collector |
| Series | SN7406 |
| Input Type | TTL |
| Maximum Operating Temperature | 70°C |
| Package Type | PDIP |
| Minimum Operating Temperature | 0°C |
| Pin Count | 14 |
| Number of Elements per Chip | 6 |
| Maximum Supply Voltage | 5.25V |
| Logic Family | 74 |
| Logic Function | Inverting Buffer |
| Minimum Supply Voltage | 4.75V |
| Maximum High Level Output Current | -0.25mA |
| Maximum Propagation Delay Time @ CL | 23ns |
| Maximum Low Level Output Current | 40mA |
Key Features
- Provides six independent inverting buffer elements for TTL logic applications.
- Open collector outputs suitable for interfacing and driving loads.
- 14-pin PDIP form factor enables compatibility with standard through-hole PCB layouts.
- Operates with a supply voltage range from 4.75V to 5.25V for robust electronics integration.
- Maximum propagation delay of 23 nanoseconds ensures fast signal processing.
- Withstands operating temperatures from 0°C to 70°C, making it ideal for industrial and commercial environments.
Product Description
Texas Instruments SN7406N is a high-quality logic inverter IC featuring six independent inverting buffer elements packed in a classic 14-pin PDIP package. Designed to work efficiently with TTL level inputs, this device offers open collector outputs to facilitate tailored interfacing with a variety of loads and circuits.
The SN7406N is engineered for use in advanced digital systems, providing reliable inversion and signal conditioning for microcontroller and processor circuits. Its through-hole design ensures straightforward PCB integration and maintenance, making it a preferred choice across multiple industrial and laboratory setups.
With a supply voltage range of 4.75V to 5.25V, the SN7406N adapts seamlessly to typical logic power rails. Its fast propagation delay of 23ns allows for swift digital processing, supporting demanding signal switching operations. Output current ratings include a maximum high level output current of -0.25mA and a maximum low level output current of 40mA, providing versatility in driving external circuits and components.
The IC is built to operate reliably within temperature ranges of 0°C to 70°C, ensuring robust performance in laboratories, manufacturing lines, and commercial electronics projects. The PDIP package provides clear identification and easy handling for prototyping and production runs. Its six independent inverting buffers allow designers to simplify logic circuits and optimize board space with a compact footprint.
Texas Instruments SN7406N supports key technical standards typical for digital logic families, and its compatibility with the 74 series delivers enhanced integration in multi-IC setups. Its dimensional attributes are 19.3mm length, 6.35mm width, and 4.57mm height, ensuring straightforward fit in standard sockets and PCB designs.
This inverter IC is suitable for logic level adaptation, signal inversion, load driving, industrial controllers, laboratory automation systems, and anywhere robust digital switching is needed. Its open collector output makes it ideal for wired-AND connections and external pull-up configurations. Engineers and designers can rely on the SN7406N for stable, high-performance logic operations where modularity and reliability are essential.
Explore the full range of Texas Instruments Logic ICs and PDIP devices in the Electronics & Electricals category on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The SN7406N operates with a supply voltage range from 4.75V to 5.25V, making it suitable for typical TTL logic power rails.
This model features six independent inverting buffer elements, allowing for versatile logic circuit design.
The maximum propagation delay for the SN7406N is 23 nanoseconds, ensuring fast signal processing capabilities.
It has open collector outputs, which are suitable for interfacing and driving various loads in digital circuits.
The dimensions of the SN7406N are 19.3mm in length, 6.35mm in width, and 4.57mm in height, fitting standard PDIP sockets.
The SN7406N can operate reliably within a temperature range of 0°C to 70°C, making it suitable for industrial and commercial applications.
The maximum low-level output current for this model is 40mA, allowing it to drive external circuits effectively.
This model comes in a 14-pin PDIP package, which facilitates through-hole mounting on PCBs.
The input type for the SN7406N is TTL, making it compatible with TTL logic levels.
The SN7406N belongs to the 74 logic family, ensuring compatibility with other devices in this series.
The open collector output of the SN7406N allows for wired-AND connections with external pull-up resistors, enabling flexible circuit designs.
The maximum high-level output current for this inverter IC is -0.25mA, providing versatility in signal driving applications.
