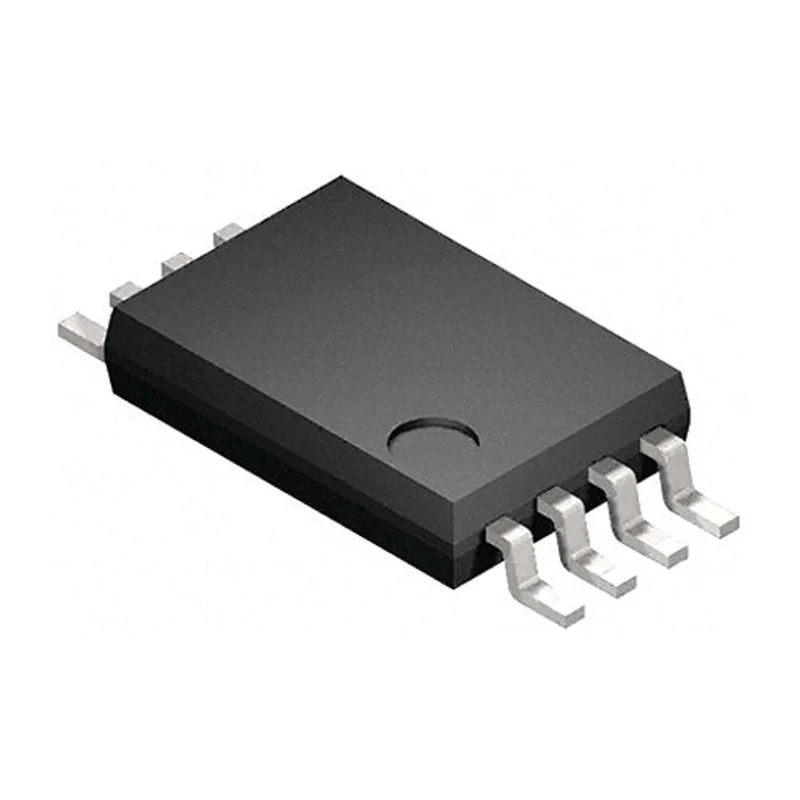

onsemi 1 4-Input OR NOR Logic Gate, Emitter Coupled Logic, Surface Mount TSSOP 8-Pin MC100EP01DTG

onsemi MC100EP01DTG is a high-performance 1 4-input OR NOR Logic Gate designed for surface mount applications. Implemented using Emitter Coupled Logic (ECL) technology, it provides ultra-fast switching speeds essential in digital circuits requiring rapid logic decisions.

Featuring a single logic element with four inputs per gate, this device supports the OR and NOR logic functions which are fundamental in combinational logic designs. Its ECL input and output types enable low noise and high-speed signal handling, ideal for advanced electronic systems.

The chip exhibits a maximum propagation delay time of 350 ps, facilitating rapid data throughput. The power supply voltage ranges from -3V minimum to 5.5V maximum, accommodating a wide variety of voltage environments. It maintains functionality within a temperature range of -40°C to 85°C, ensuring durability in industrial and commercial settings.

Packaged in a slim 8-pin TSSOP, with a thickness of 0.95 mm and length of 3.1 mm, the device is suitable for compact PCB layouts and surface mounting. The pin count of 8 supports straightforward connectivity to related circuitry.

4-input OR and NOR logic functions in a single element. ECL logic family featuring low-level output current of 0.5 µA for efficient power usage. Surface mount TSSOP package enhances assembly and manufacturing efficiency.

Broad voltage and temperature operation ranges for robust application versatility. Compact size with 8 pins facilitates integration in automated electronic manufacturing.

This Logic Gate is suitable for use in electronic design, semiconductor applications, and various industrial automation systems requiring rapid logic decisions and stable performance. Explore diverse electronic component solutions including logic ICs in the EnvMart catalog.
