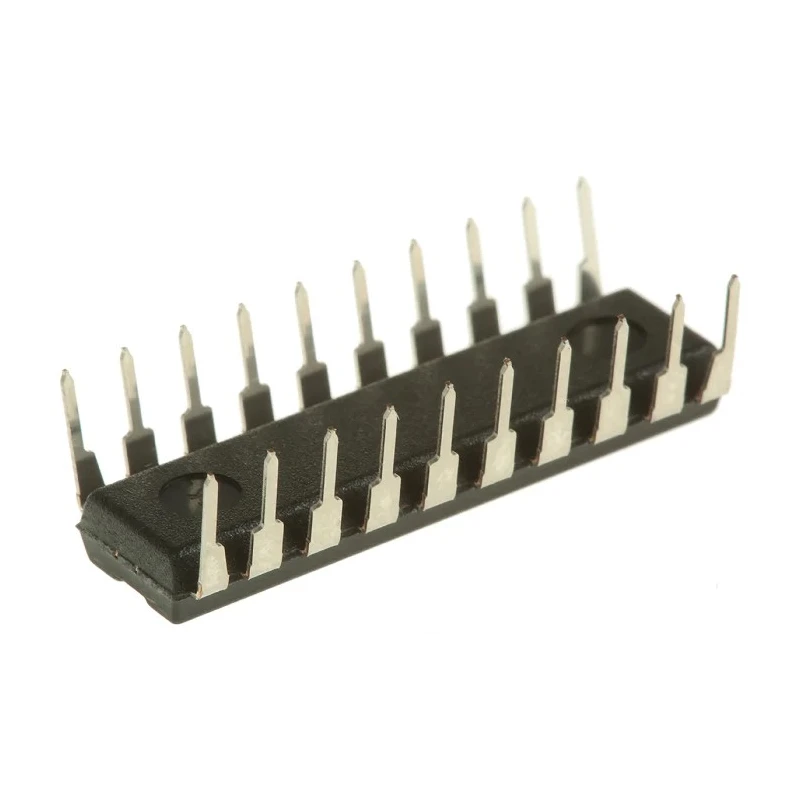

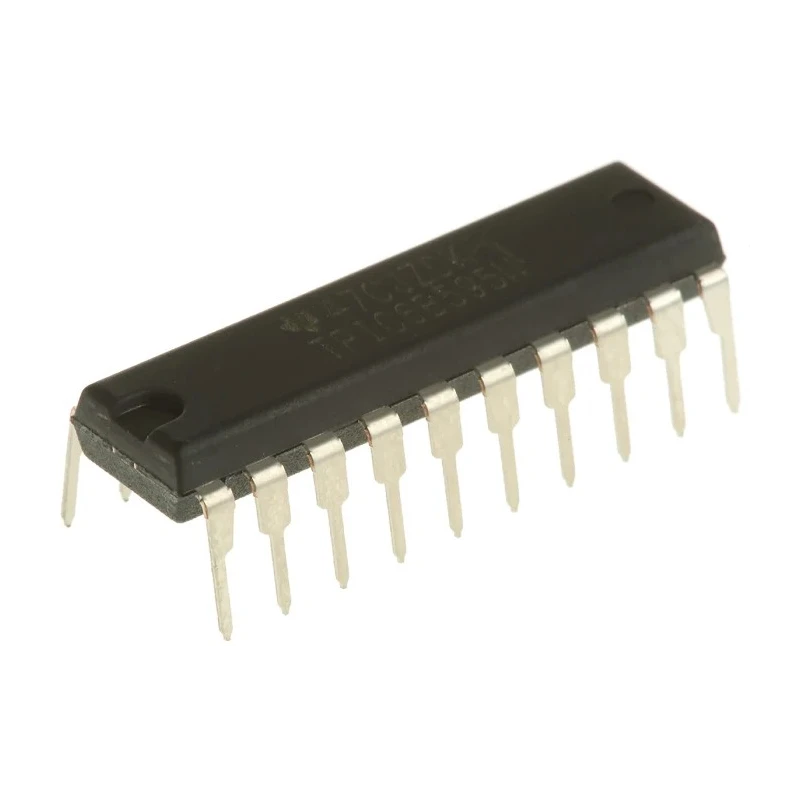

Texas Instruments 8-Bit Shift Register DMOS Logic IC, Through Hole, 20 PDIP, TPIC6B595N

Texas Instruments TPIC6B595N is a high-performance 8-bit shift register IC, based on DMOS technology. Designed with a 20-pin Dual-Inline Package (PDIP), this component offers reliable through hole mounting for robust mechanical integration in electronic circuits.

Featuring the DMOS logic family, the TPIC6B595N delivers dependable performance in both counting and shift register applications. Its binary counter architecture and uni-directional shift configuration simplify digital control systems and enable sequential data handling.

The IC operates within a supply voltage range of 4.5 V to 5.5 V, making it compatible with standard logic and microcontroller platforms. The 8 stages provide flexibility for controlling multiple outputs, while the 20-element pin count ensures straightforward interfacing.

With a compact size of 26.92 mm length and 4.57 mm height, the TPIC6B595N fits efficiently into PCB designs. The maximum operating temperature of 125°C ensures stability in demanding environments, and its minimum operating temperature is -40°C, suitable for industrial and commercial conditions.

Aimed at industrial, electronic, and laboratory use, this shift register IC is applicable in digital logic circuits, control panels, data acquisition boards, and automation systems. The PDIP package allows for easy through hole assembly and replacement in prototyping and production settings.
