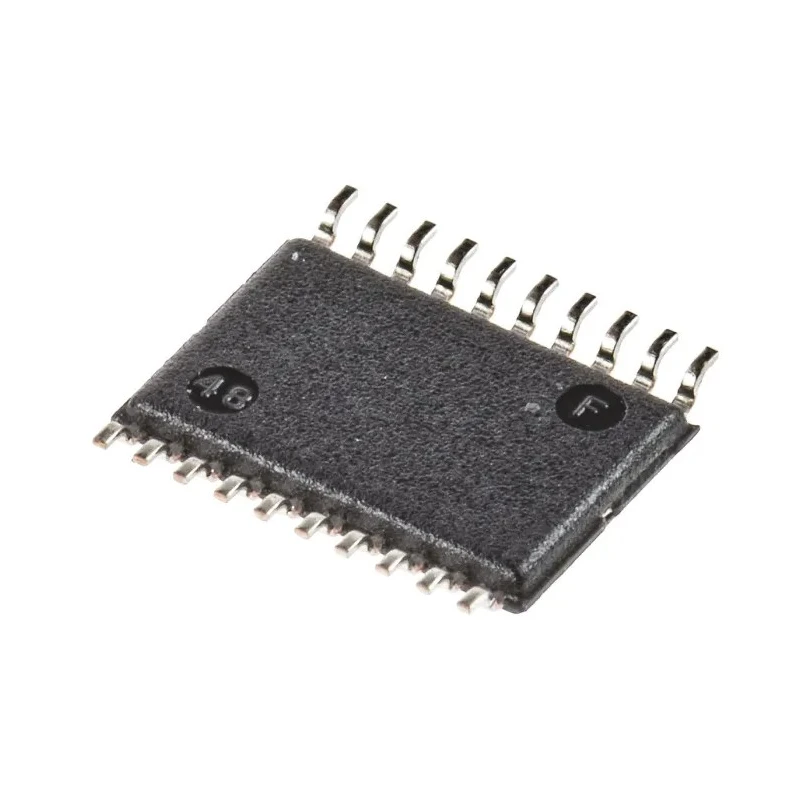

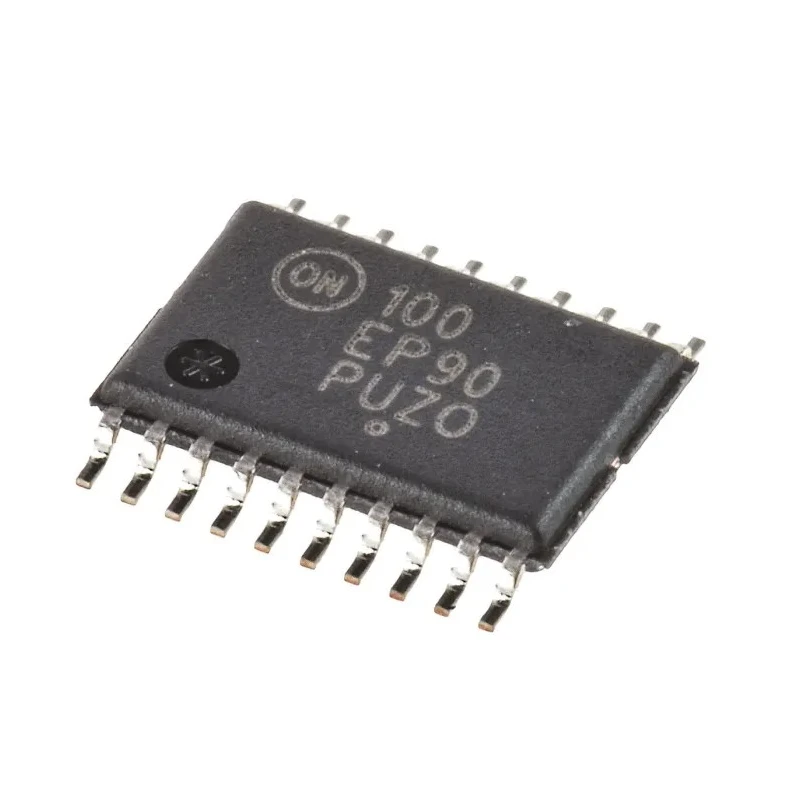

Name: onsemi ON Semiconductor Logic Level Translator 6 ECL, LVECL to LVPECL, PECL, Uni-Directional, Surface Mount MC100EP90DTG
Brand: onsemi
SKU: 85216
Price: 20.22 USD
Availability: InStock



Category Logic ICs Brand onsemi Condition New

Specifications

Country of Origin	India
Brand	onsemi
Height	1.05mm
Length	6.6mm
Model	MC100EP90DTG
Mount Type	Surface
Output type	PECL
Series	MC100EP90
Maximum Operating Temperature	85°C
Package Type	TSSOP
Minimum Operating Temperature	-40°C
Pin Count	20
Number of Elements per Chip	6
Maximum Supply Voltage	5.5V
Logic Family	ECL
Logic Function	Translator
Minimum Supply Voltage	-3V
Maximum High Level Output Current	-50mA
Maximum Propagation Delay Time @ CL	370ps
Direction Type	Uni-Directional
Maximum Low Level Output Current	50mA
Translation	ECL, LVECL to LVPECL, PECL

Key Features

Supports translation from ECL and LVECL logic families to LVPECL and PECL output levels.
Provides uni-directional signal translation for optimal reliability in digital applications.
Features a TSSOP surface mount package with 20 pins for compact PCB layouts.
Delivers a maximum propagation delay time of 370 ps for fast signal processing.
Operates within a wide supply voltage range of -3 V to 5.5 V for flexible design integration.
Handles up to 50 mA output current for robust digital interfacing.
Designed to operate reliably in temperature ranges from -40°C to +85°C.
Ideal for interfacing with ECL, PECL, CML, LVDS, HSTL, HCSL, TTL, and CMOS devices.

Product Description

onsemi MC100EP90DTG Logic Level Translator is engineered to meet demanding digital circuit requirements by reliably converting logic signals between ECL/LVECL and LVPECL/PECL families. It integrates six uni-directional elements within a single chip and utilizes a surface mount TSSOP package for efficient utilization of PCB space.

The MC100EP90DTG is specifically designed to interface differential ECL signals with various logic standards including PECL, CML, LVDS, HSTL, HCSL, TTL, and CMOS. Its uni-directional architecture ensures reliable logic level translation, making it suitable for data communication, networking equipment, and high-speed digital processing in industrial and laboratory applications.

This translator IC provides a maximum propagation delay time of 370 ps, enabling fast response and minimal latency in real-time signal processing environments. With a supply voltage range extending from -3 V to 5.5 V, the device adapts to diverse power configurations and supports robust output currents up to 50 mA, ensuring compatibility with a wide suite of digital loads.

The MC100EP90DTG sustains operation from -40°C to 85°C, making it suitable for both commercial and extended industrial environments. The 20-pin TSSOP package simplifies surface mounting and integration into automated manufacturing lines, supporting efficient assembly and high PCB density.

Ideal applications include electronic test and measurement devices, networking hardware, digital communication systems, and industrial automation modules where reliable logic level translation is required. The device is also well-suited for research laboratories, telecommunication infrastructure, and embedded systems development.

By leveraging fast propagation delay, high output drive, and broad temperature tolerance, onsemi's MC100EP90DTG enhances signal integrity and system flexibility in advanced digital designs. Explore more semiconductor solutions and Logic ICs from onsemi and related categories for your electronic circuit needs.
