Nexperia Schmitt Trigger Input CMOS Inverter 2-Channel, Surface Mount, 2V - 6V, SC-88 Package 74HC2G04GW,125

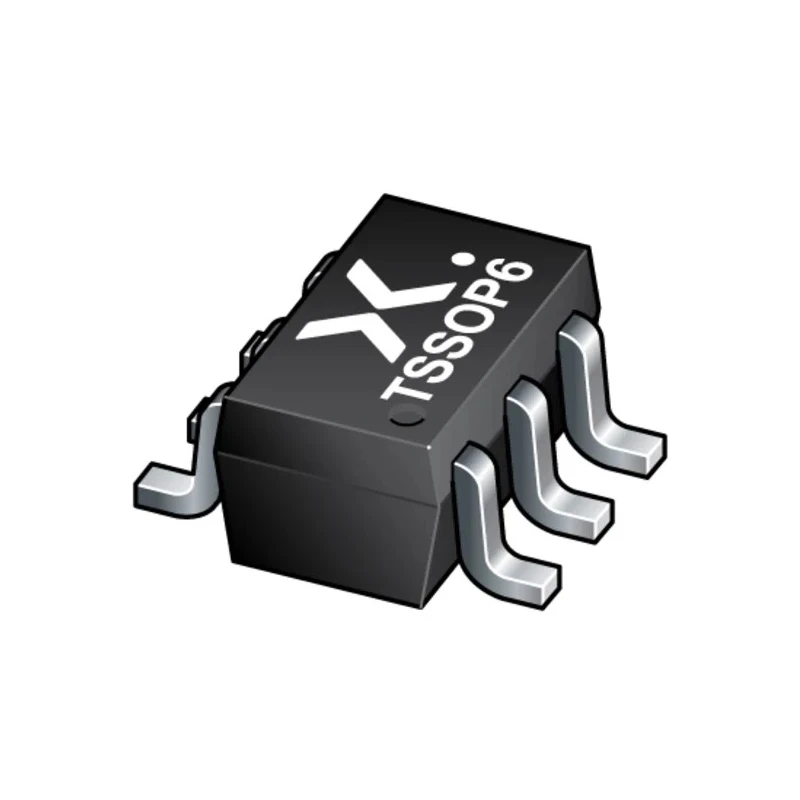

The Nexperia 74HC2G04GW,125 is a dual Schmitt Trigger input CMOS inverter IC designed for precise and robust digital signal inversion in a compact SC-88 surface mount package. Leveraging advanced CMOS technology, this device provides two independent inverting buffers equipped with Schmitt Trigger inputs to ensure reliable operation in high-noise environments and improve signal transitions.

This inverter is engineered to be compatible with both 5V and 3.3V logic systems, supporting a wide supply voltage range from 2V to 6V. Its high-speed operation, with a typical maximum propagation delay of 110ns, makes it ideal for demanding digital logic applications where fast switching is required without sacrificing signal fidelity.

The 74HC2G04GW,125 offers a current drive capability of up to 5.2mA for both high and low output states, enabling effective interfacing with other logic devices or downstream loads. The device's two integrated inverters per chip allow designers flexibility when implementing logic functions in complex circuits, such as buffers, waveform shapers, or logic level translators.

Packaged in the compact 6-pin SC-88 form factor, this inverter is optimized for modern PCB assembly techniques and is well-suited for applications with limited board space. The robust operation is further supported by its broad operating temperature range, from -40°C up to 125°C, making it suitable for industrial, automotive (non-standard), and commercial electronics.

Typical application areas include mixed-voltage logic interfacing in consumer and industrial equipment, LCD TVs, mobile devices, industrial monitoring systems, and general-purpose digital electronics requiring stable and precise logic signal inversion. The integration of Schmitt Trigger characteristics on the inputs ensures sharp state transitions and enhanced noise tolerance, even in challenging electronic environments.

Engineers and designers benefit from the improved signal integrity, fast switching, and compact design, offering optimal solutions for high-density or space-constrained layouts. The 74HC2G04GW,125 demonstrates Nexperia's commitment to reliable, high-performance semiconductor logic solutions.
