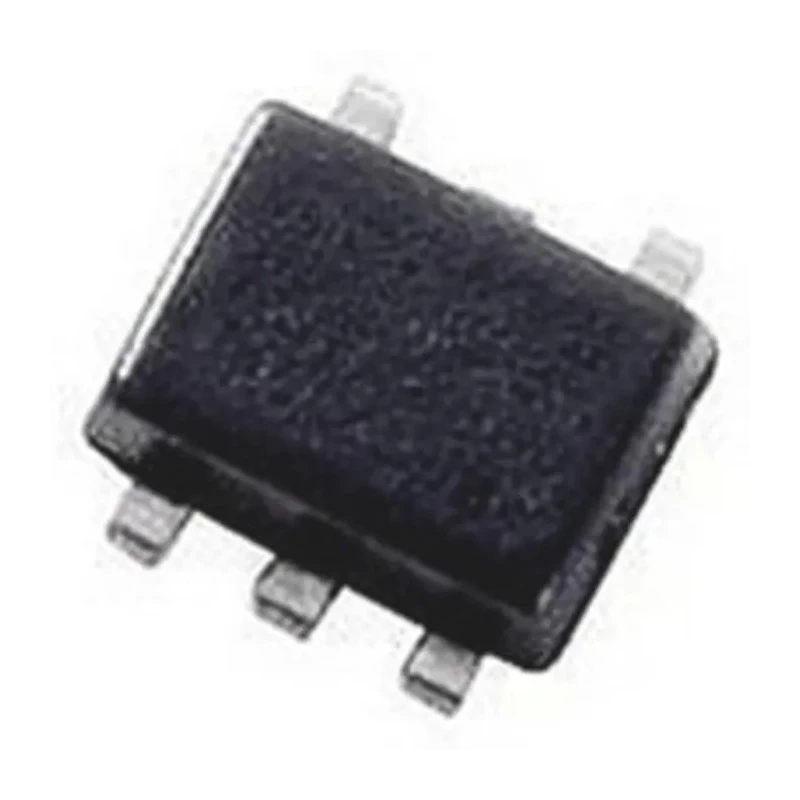

DiodesZetex 1 1-Input Inverter Logic Gate 5-Pin SOT-553 74LVC1G04Z-7

DiodesZetex 74LVC1G04Z-7 is a single 1-input inverter logic gate designed using low voltage CMOS technology, housed in a compact 5-pin SOT-553 surface mount package. It functions efficiently with an operating voltage range from 1.65 to 5.5 volts, making it suitable for low power electronic circuit designs requiring inverter logic functionality.

The device offers a maximum propagation delay of 5 nanoseconds at a typical load capacitance, ensuring fast signal switching ideal for high-speed digital circuits. Operating reliably within temperatures from -40°C to 125°C, it is suitable for various industrial and commercial electronics applications where temperature resilience is necessary.

With CMOS input and push-pull output configuration, the 74LVC1G04Z-7 supports compatibility with LVTTL and TTL input signals and outputs in LVCMOS logic levels. Its maximum output currents are -32mA for high level and 32mA for low level, allowing acceptable drive capability for connected digital devices.

Physically, it measures 1.7 mm in length and 620 μm in height, facilitating compact PCB layouts. The package is a small-outline transistor style SOT-553 with 5 pins, optimized for surface mount assembly to improve manufacturing efficiency.

This logic gate is not equipped with a Schmitt trigger input, and it does not conform to automotive-grade certifications, indicating use primarily in general electronic and industrial control domains rather than automotive systems.

Manufactured in China, this component integrates well in electronics manufacturing, digital system prototyping, and embedded systems development. It supports rapid design and product development cycles in industrial, laboratory, and commercial electronics applications.

Operates on 1.65 to 5.5 V supply voltage. Single inverter gate with CMOS input. Maximum propagation delay of 5 ns ensures fast switching. Wide operating temperature range: -40°C to 125°C. Push-pull output type with high/low level output currents.

Compact SOT-553 5-pin surface mount package. Compatible with LVTTL/TTL and LVCMOS logic standards. Not equipped with Schmitt trigger input functionality. Not automotive standard certified. Country of origin: China.
