| Country of Origin | India |
|---|---|
| Brand | DiodesZetex |
| Height | 1.15mm |
| Length | 3.1mm |
| Model | 74LVC1G08QW5-7 |
| Mount Type | Surface |
| Output type | Push Pull |
| Input Type | CMOS |
| Maximum Operating Temperature | 125°C |
| Package Type | SOT-25 |
| Minimum Operating Temperature | -40°C |
| Pin Count | 5 |
| Number of Elements | 1 |
| Automotive Standard | AEC-Q100 |
| Maximum Supply Voltage | 5.5V |
| Logic Family | LVC |
| Logic Function | AND |
| Minimum Supply Voltage | 1.65V |
| Maximum High Level Output Current | -32mA |
| Maximum Propagation Delay Time @ CL | 5.5ns |
| Maximum Low Level Output Current | 32mA |
| Number of Inputs per Gate | 1 |

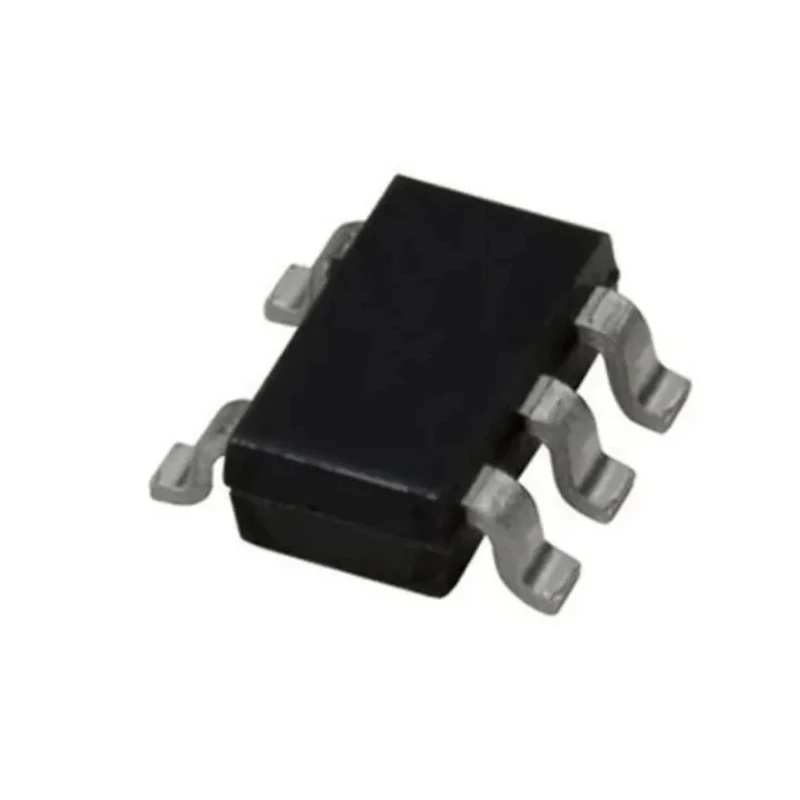

DiodesZetex 74LVC1G08QW5-7 is a highly reliable 1-input AND logic gate providing a single element in a compact 5-pin SOT-25 surface mount package. It is designed specifically for automotive and industrial semiconductor applications requiring robust logic gate performance over a wide temperature range.
Operating from a minimum of 1.65 volts up to 5.5 volts, this device supports an ambient temperature range from -40°C to 125°C, meeting automotive grade AEC-Q100 standards. It features a CMOS input type within the LVC logic family, ensuring low power consumption without sacrificing speed.
The logic gate has a maximum propagation delay of 5.5 nanoseconds at specified load capacitance, enabling fast and efficient signal processing. Its output type is push-pull, permitting both sourcing and sinking current, with a maximum low-level output current of 32mA and high-level output current of -32mA.
Dimensionally, the component is compact, measuring 3.1mm in length and 1.15mm in height, which suits high-density surface mount PCB designs requiring space-saving components.
This logic gate is ideal for applications including voltage level shifting, power-down signal isolation, and general-purpose logical operations in automotive, industrial controls, electronic systems manufacturing, and semiconductor device design environments.
Operates from 1.65V to 5.5V supply voltage. Compliance with automotive industry AEC-Q100 standard for enhanced reliability. Single 1-input AND logic function with 5-pin SOT-25 packaging. Wide temperature operation from -40°C to 125°C.
Low power CMOS input type within LVC logic family. Push-pull output type with balanced sourcing and sinking current capability. Fast propagation delay of 5.5 nanoseconds supports high-speed logic. Compact dimensions suitable for surface mount PCB layout.
The DiodesZetex 74LVC1G08QW5-7 offers the perfect blend of performance, reliability, and compact size for modern electronic and automotive platform designs. Browse the Electronics & Electricals Semiconductor Logic Gate category in EnvMart for more related products.
