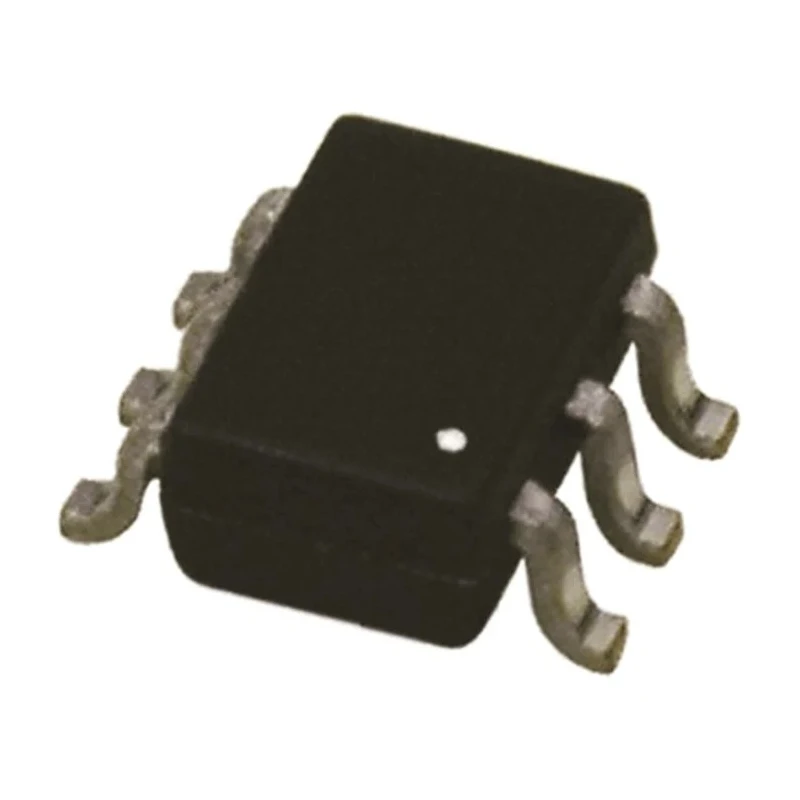

DiodesZetex 1 2-Input Multifunction Logic Gate 6-Pin SOT-363 74LVC1G97DW-7

DiodesZetex 74LVC1G97DW-7 is a 1 2-Input Multifunction Logic Gate designed for surface mounting, housed in a compact 6-Pin SOT-363 package. It belongs to the Diodes Inc 74LVC1G Family and operates on low-voltage CMOS logic, making it suitable for a wide range of electronic circuits requiring multifunction logic gates.

The device operates within a voltage range of 1.65 to 5.5 V, with compatibility for LVTTL/TTL input signals and outputs conforming to LVCMOS standards. It features a CMOS input type and push-pull output for reliable and efficient logic signal handling.

Key physical specifications include a length of 2.2 mm and a height of 5.5 mm, making it optimal for applications with space constraints. It supports a maximum propagation delay time of 6.4 ns at capacitive load, enabling fast switching performance in digital circuits.

Designed for robustness, it operates across a temperature range from -40°C to 125°C, suitable for most industrial and commercial environments. The maximum high level output current is -32 mA, and the maximum low level output current is 32 mA, providing strong drive capabilities for logic outputs.

This logic gate contains a single element with 2 inputs per gate and does not have a Schmitt trigger input. It is not certified for automotive use but finds extensive applications in industrial, laboratory, and commercial electronic systems for logic function integration.

Package type SOT-363 with 6 pins supports surface mount technology, facilitating efficient PCB assembly processes and improving production efficiency in manufacturing environments.

DiodesZetex 74LVC1G97DW-7 multifunction logic gate is an ideal choice for designers requiring an efficient, low-voltage multifunction logic gate IC to integrate multiple logic functions in compact electronic circuits.

This multifunction logic gate features a CMOS input type compatible with LVTTL/TTL input signals. Operating voltage ranges between 1.65V to 5.5V for versatile applications. It provides a maximum propagation delay time of 6.4ns, ensuring fast signal processing.

Designed with a push-pull output type to deliver robust drive capabilities. Its operating temperature ranges from -40°C to 125°C, suitable for demanding environments. Compact dimensions include a length of 2.2mm and height of 5.5mm for space-constrained circuit designs.

Offers a maximum high level output current of -32mA and maximum low level output current of 32mA. This device supports single gate with 2 inputs per gate, ideal for multifunctional logic operations. Package type SOT-363 with 6 pins enhances surface mount applications efficiency.
