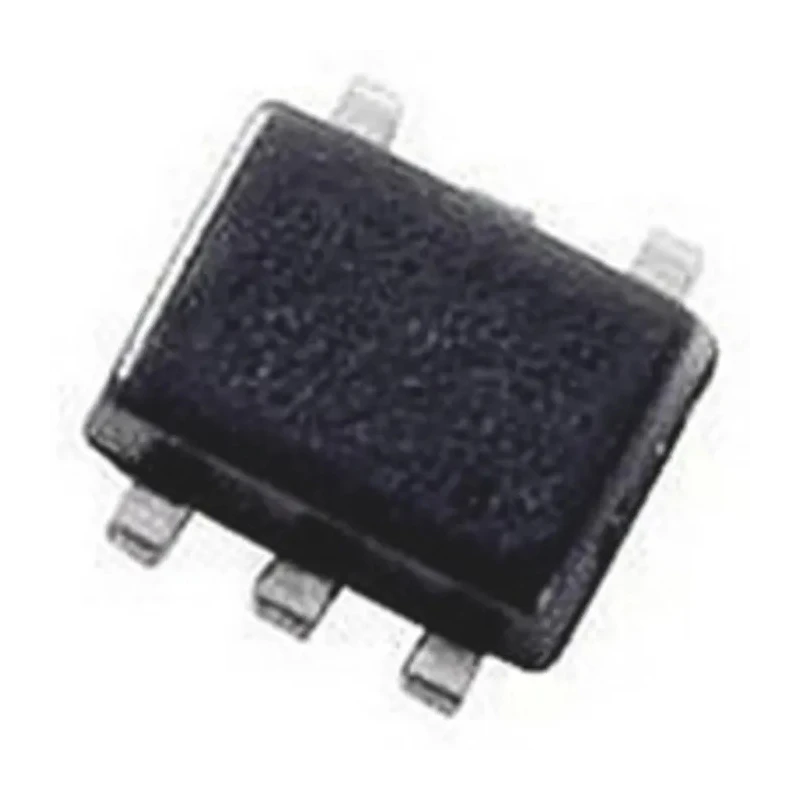

DiodesZetex 1 1-Input Inverter Logic Gate, Surface Mount 5-Pin SOT-553, CMOS, 1.65 to 5.5 V, 5ns Propagation 74LVC1G04Z-7

DiodesZetex 74LVC1G04Z-7 is a high-performance single 1-input inverter logic gate designed for surface mount applications. Housed in a compact 5-Pin SOT-553 package, it supports low-voltage CMOS logic with operating voltages ranging from 1.65 V up to 5.5 V. Its fast maximum propagation delay of 5 nanoseconds enables rapid signal inversion, ideal for digital logic circuit design.

The logic gate is optimized for compatibility with input LVTTL/TTL signals and provides LVCMOS standard outputs, facilitating integration with various digital components. Its push-pull output stage enables reliable current drive with a maximum high-level output current of -32 mA and a low-level output current of 32 mA.

Measuring only 1.7 mm in length and 620 μm in height, this gate is suitable for compact PCB layouts. It operates reliably in industrial temperature ranges from -40°C to 125°C, making it applicable in sectors such as industrial automation, electronics manufacturing, and embedded systems development.

The device excludes Schmitt Trigger inputs and does not carry any specific industry approvals or automotive certifications, indicating suitability primarily for general electronic component usage.

Manufactured in China, this compact inverter logic gate is ideal for engineers and designers looking for low-power, high-speed logic solutions in semiconductor and electronic devices.

This device functions as a single inverter gate suitable for digital signal processing. It features a CMOS input type providing compatibility with LVTTL/TTL inputs and LVCMOS outputs. The package is compact with a height of 620 μm and length of 1.7 mm, suitable for space-constrained PCB designs.

Operating temperature range is from -40°C to 125°C, ensuring reliable performance in harsh environments. It delivers a maximum high-level output current of -32 mA and low-level output current of 32 mA with push-pull output type.

The device does not include Schmitt Trigger input functionality. Compliance with RoHS and other approvals is not specified, and automotive standards are not met. Origin of manufacture is China. The logic family is LVC, making it suitable for low-voltage logic circuits.
