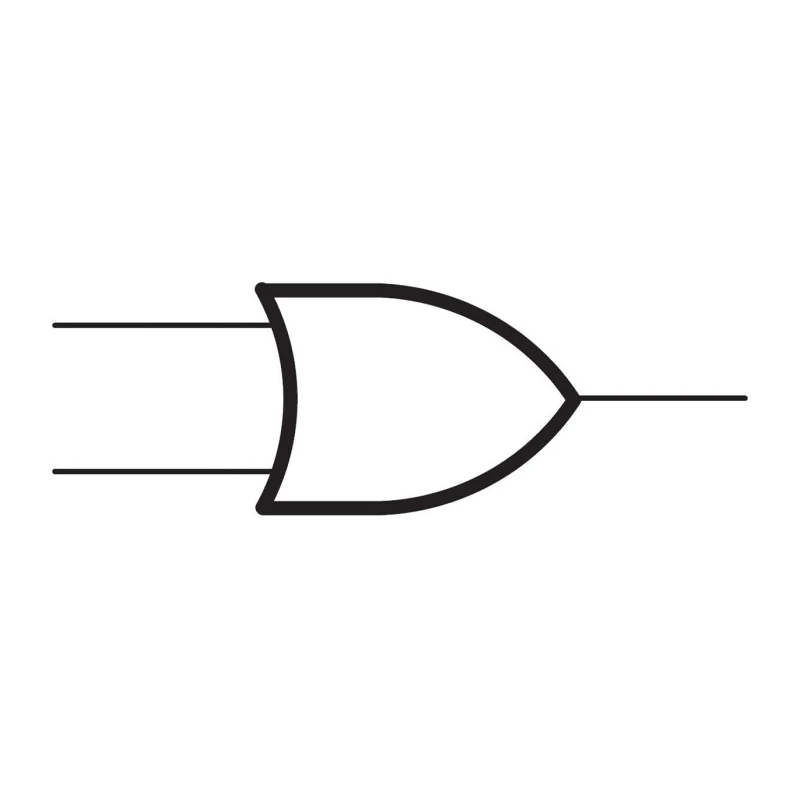

Nexperia 1 2-Input OR Schmitt Trigger Input Logic Gate 5-Pin TSSOP 74AUP1G32GW,125

Nexperia 74AUP1G32GW,125 1 2-Input OR Schmitt Trigger Input Logic Gate in a 5-pin TSSOP package provides advanced ultra-low power logic solutions for industrial and consumer electronic applications. It supports mixed voltage circuits with a supply range from 0.8 V to 3.6 V and integrates Schmitt-trigger inputs for high noise immunity, ensuring signal stability in electrically noisy environments.

Designed for surface mount technology, this logic gate features a single OR function with two inputs per gate, delivering rapid signal processing with a maximum propagation delay time of 8.5 ns at capacitive load. It operates reliably over a wide temperature range from -40°C to 125°C, making it suitable for harsh industrial, automotive, and consumer electronics environments.

This device consumes very low dynamic power and provides enhanced electrostatic discharge protection, resulting in energy-efficient performance and increased product lifespan. The single-ended output with a maximum high-level output current of -4 mA supports a variety of load conditions.

The compact 5-pin TSSOP package facilitates efficient printed circuit board layout and miniaturization of electronic assemblies. Manufactured in Malaysia, the 74AUP1G32GW,125 logic gate is part of the industry-standard 74AUP logic family designed for ultra-low power and mixed voltage applications.

Operates across a supply voltage range of 0.8 to 3.6 volts. Schmitt-trigger inputs ensure superior noise immunity. OR logic function with two inputs per gate. Surface mount 5-pin TSSOP package for compact integration. Maximum propagation delay time of 8.5 nanoseconds at CL.

Wide operating temperature range from -40°C to 125°C. Very low dynamic power dissipation suitable for energy-sensitive circuits. Enhanced electrostatic discharge protection provides robustness. Single-ended output with a maximum output current of -4 mA.

Country of origin: Malaysia.

This Logic Gate is ideal for industrial automation, automotive electronics, consumer devices, and various embedded systems requiring low power consumption, reliable signal integrity, and compact form factor. It forms a fundamental building block in digital circuit design with high noise immunity and efficient energy use.
