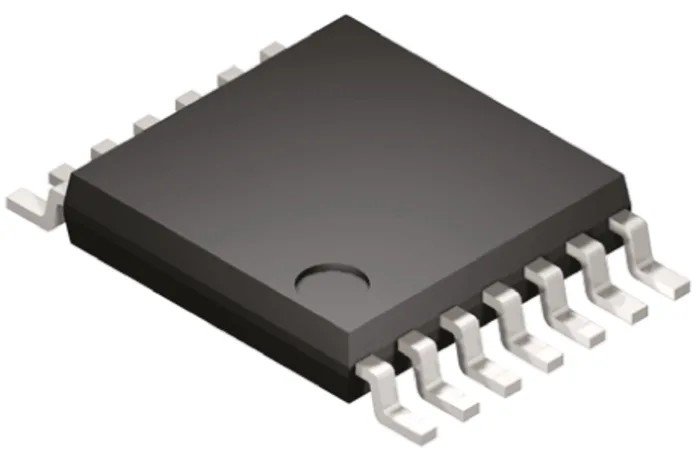

DiodesZetex 4 2-Input NAND Schmitt Trigger Input Logic Gate, 14-Pin TSSOP 74HC00T14-13

DiodesZetex 74HC00T14-13 is a high-speed logic device offering four 2-input NAND gates with Schmitt trigger inputs packaged in a 14-pin thin small outline package (TSSOP). Designed within the 74HC logic family, this CMOS Logic Gate provides low power consumption and high noise immunity suited for advanced electronic circuit designs.

This logic IC supports a supply voltage from 2 V to 6 V, making it adaptable for various low voltage industrial, consumer electronics, and embedded system applications. Its maximum propagation delay time at capacitive load (CL) is 23 nanoseconds, delivering rapid switching response critical in high-speed digital circuits.

The 74HC00T14-13 features Schmitt trigger inputs enhancing signal stability and noise rejection, particularly for slow or noisy inputs. Its pin count of 14 and surface mount TSSOP package allow compact PCB layouts suitable for automated assembly lines.

Environmental operating capability spans from -40°C to 125°C, enabling deployment in harsh industrial and commercial environments. The device outputs are push-pull type, with output current ratings of -4mA high level and 5.2mA low level, capable of driving a range of downstream loads effectively.

Comprehensive ESD protection surpasses industry standards, protecting circuits against static discharges and enhancing product longevity. Manufacturing origin is China. Contains 4 NAND gates each with 2 inputs and Schmitt trigger input functionality.

Operates over a supply voltage range of 2 V to 6 V for versatile application. Maximum propagation delay time of 23ns ensuring fast switching performance. Offers low power consumption CMOS technology ideal for efficient circuit design.

Surface mount TSSOP package with 14 pins suitable for PCB assembly. Operating temperature range from -40°C to 125°C for robust operation. Push-pull output type provides good drive capability for various loads. Maximum high-level output current of -4mA and low-level output current of 5.2mA.

Meets ESD protection standards exceeding 200V (machine model) and 2000V (human body model). Manufactured in China with high quality and reliability standards. This 74HC family logic IC is ideal for high-speed digital logic circuits in industrial, manufacturing, laboratory instrumentation, communication equipment, and embedded systems.
