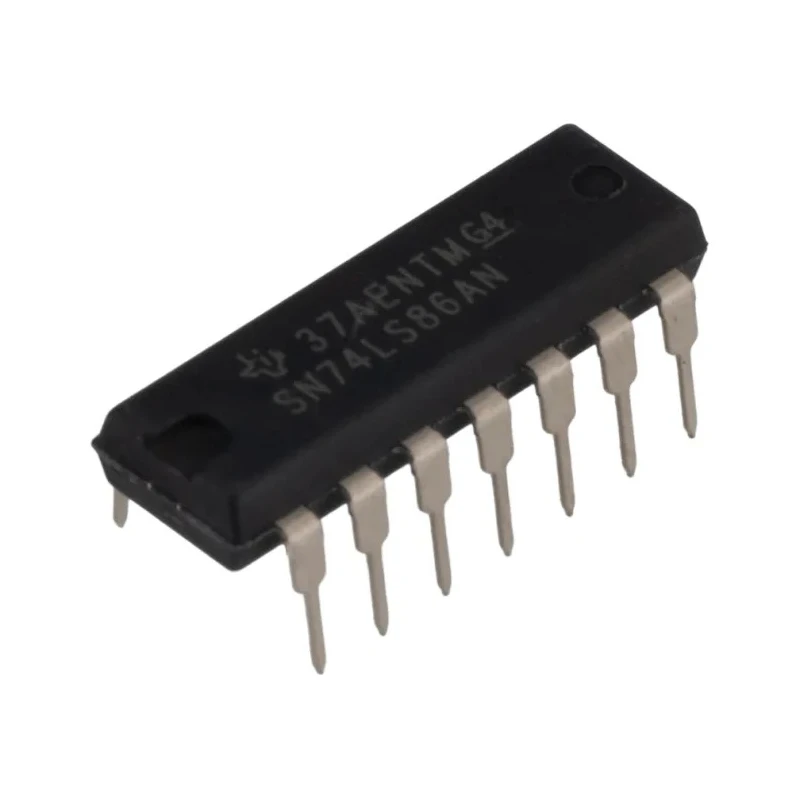

Texas Instruments 4 2-Input XOR Logic Gate 14-Pin PDIP SN74LS86AN

Texas Instruments SN74LS86AN is a 4 2-Input XOR Logic Gate housed in a 14-pin PDIP package optimized for low power and high-speed digital logic applications. This device is part of the 74LS family, integrating bipolar junction transistor technology with Schottky diode clamps to reduce power consumption while maintaining fast switching speeds comparable to the original 74TTL series.

Featuring four independent 2-input XOR gates, the SN74LS86AN supports various digital logic functions essential in computing, signal processing, and control systems. It is designed for through-hole mounting, which simplifies assembly in prototyping and production environments.

The device operates with supply voltages between 4.75 V and 5.25 V, providing a maximum high level output current of -0.4 mA and a maximum low level output current of 8 mA. Its propagation delay of 10 nanoseconds per gate makes it suitable for timing-sensitive electronic circuits.

Operating temperature ranges from 0°C to 70°C, meeting standard industrial temperature specifications for reliable performance in diverse environments. The package dimensions include a length of 19.3 mm and a height of 4.57 mm, conforming to PDIP industry standards ensuring mechanical compatibility.

Applications of SN74LS86AN include use in computing logic circuits, signal toggling systems, digital electronic equipment, and embedded control hardware in industrial and commercial electronic devices.

This product features four 2-input XOR gates for versatile logic operations. Implemented in a 14-pin PDIP package suitable for through-hole PCB assembly. Belongs to the low-power LS logic family balancing speed and energy efficiency.

Designed to smoothly handle standard logic levels with a supply voltage range of 4.75 V to 5.25 V. Meets industrial temperature standards for operational reliability. Typical propagation delay time is 10 nanoseconds ensuring quick signal response.
