| Country of Origin | India |
|---|---|
| Brand | DiodesZetex |
| Height | 1mm |
| Length | 2.2mm |
| Model | 74AHCT1G00QSE-7 |
| Mount Type | Surface |
| Output type | Push Pull |
| Input Type | Schmitt Trigger |
| Maximum Operating Temperature | 125°C |
| Package Type | SOT-323 |
| Minimum Operating Temperature | -40°C |
| Pin Count | 5 |
| Number of Elements | 1 |
| Automotive Standard | AEC-Q100 |
| Maximum Supply Voltage | 5.5V |
| Logic Family | AHC |
| Logic Function | NAND |
| Minimum Supply Voltage | 2V |
| Maximum High Level Output Current | -8mA |
| Maximum Propagation Delay Time @ CL | 10ns |
| Maximum Low Level Output Current | 8mA |
| Number of Inputs per Gate | 2 |

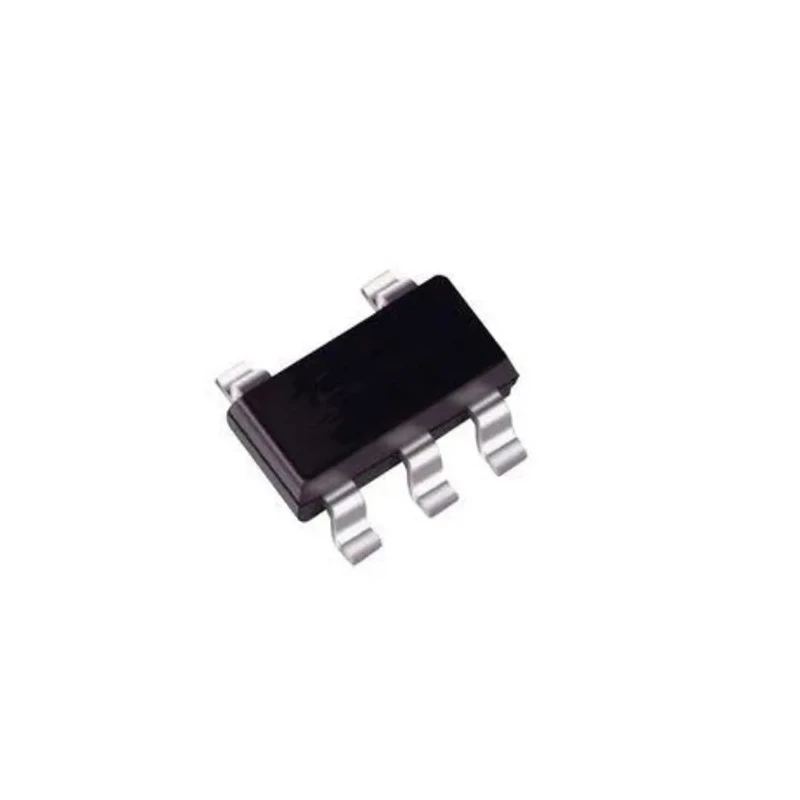

DiodesZetex 74AHCT1G00QSE-7 is a single 2-input NAND logic gate featuring Schmitt Trigger input for enhanced noise immunity in electronic circuits. Packaged in a compact 5-pin SOT-323 surface mount package, it is ideal for space-constrained automotive and industrial applications.
This logic gate operates reliably over a supply voltage range of 4.5V to 5.5V with ambient temperatures from -40°C up to 125°C, ensuring grade 1 automotive compliance according to the AEC-Q100 standard. The device provides balanced propagation delays of 10ns at capacitive load and balanced drive capability for consistent signal integrity.
The push-pull output stage delivers a maximum high-level output current of -8mA and a low-level output current of 8mA, making it suitable for driving a variety of loads in embedded systems and logic circuits.
With the Schmitt Trigger input, this NAND gate enhances signal noise rejection, improving performance in environments with electrical interference. Single 2-input NAND gate with Schmitt Trigger input. Surface mount 5-pin SOT-323 package with compact dimensions (Length: 2.2mm, Height: 1mm).
Automotive grade AEC-Q100 certification and wide operating temperature range (-40°C to 125°C). Power supply voltage range from 4.5V to 5.5V. Balanced propagation delays of 10ns at capacitive load. Push-pull output type offering up to ±8mA output current.
Logic family: AHC.
This semiconductor Logic Gate is extensively used in automotive electronics, industrial control systems, communication equipment, and embedded devices requiring robust and noise-immune digital logic operations. The compact footprint and automotive grade reliability make it suited for manufacturing in harsh environments and space-limited PCB layouts.
Explore our Electronics & Electricals category for a full range of semiconductor components, ensuring the optimal choice for your design and manufacturing needs.
