| Country of Origin | China |
|---|---|
| Brand | DiodesZetex |
| Height | 1mm |
| Length | 2.2mm |
| Model | 74LVC1G57DW-7 |
| Mount Type | Surface |
| Compatibility | Input LVTTL/TTL, Output LVCMOS |
| Output type | Push Pull |
| Input Type | CMOS |
| Maximum Operating Temperature | 125°C |
| Package Type | SOT-363 |
| Minimum Operating Temperature | -40°C |
| Operating Voltage | 1.65 to 5.5 V |
| Pin Count | 6 |
| Number of Elements | 1 |
| Maximum Supply Voltage | 5.5V |
| Logic Family | LVC |
| Logic Function | Multifunction |
| Minimum Supply Voltage | 1.65V |
| Maximum High Level Output Current | -32mA |
| Maximum Propagation Delay Time @ CL | 6.4ns |
| Maximum Low Level Output Current | 32mA |
| Number of Inputs per Gate | 2 |

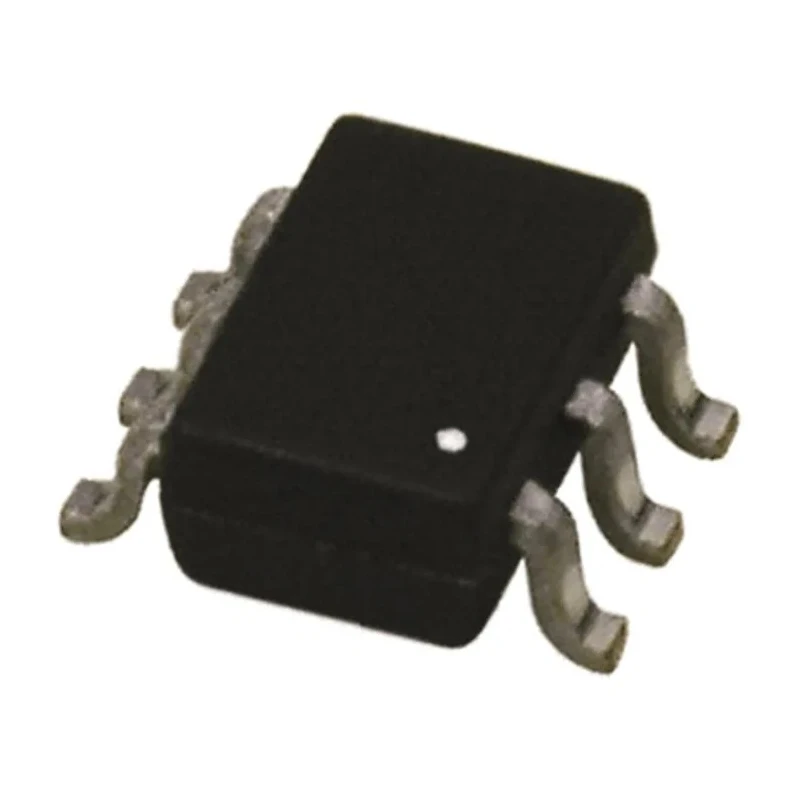

DiodesZetex 74LVC1G57DW-7 1 2-Input Multifunction Logic Gate is part of the low-voltage CMOS logic family designed for surface mount applications. Its multifunction logic function integrates 2 inputs into a compact 6-pin SOT-363 package, enabling efficient use of PCB space.
This logic gate operates reliably over a wide voltage range from 1.65 to 5.5 V and exhibits a maximum propagation delay of 6.4 ns, providing fast switching necessary for high-speed digital circuits.
The device features push-pull outputs with maximum high-level and low-level output currents of -32mA and 32mA respectively, ensuring robust signal driving capabilities. It is compatible with TTL and LVTTL input signals, and outputs are LVCMOS compatible, making it versatile for mixed-logic designs.
Designed for demanding industrial and electronic applications, it functions across a temperature range of -40°C to 125°C, accommodating harsh environmental conditions.
The small form factor with 1mm height and 2.2mm length simplifies integration into compact assemblies and automated surface mount processes. This product is ideal for industrial electronics, embedded systems, instrumentation, and general signal processing applications.
Operates at supply voltages from 1.65V to 5.5V allowing flexibility in power design. Multifunction logic operation reduces component count in custom circuits. Low propagation delay ensures high-speed data throughput. Surface mount SOT-363 package supports modern PCB assembly techniques.
Robust operating temperature range supports industrial and commercial applications. Push-pull output design enables strong drive and reliable logic levels. Compact size facilitates dense circuit layouts and small footprint designs.
DiodesZetex Logic Gates form a critical component in electronic modules used in industrial automation, consumer electronics, telecommunications, automotive electronics, and embedded control systems.
