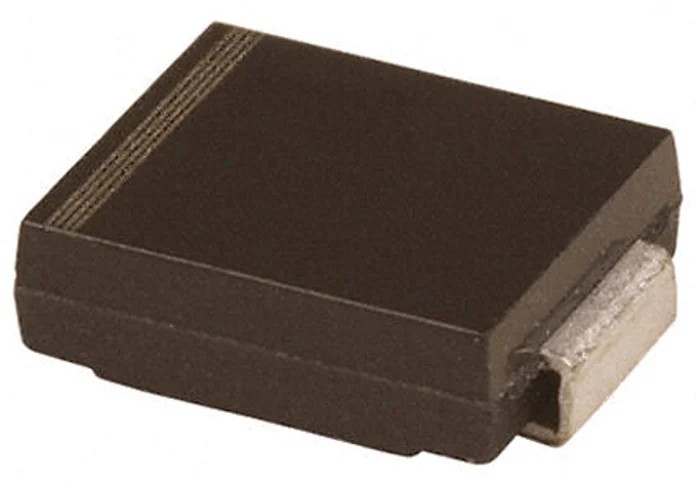

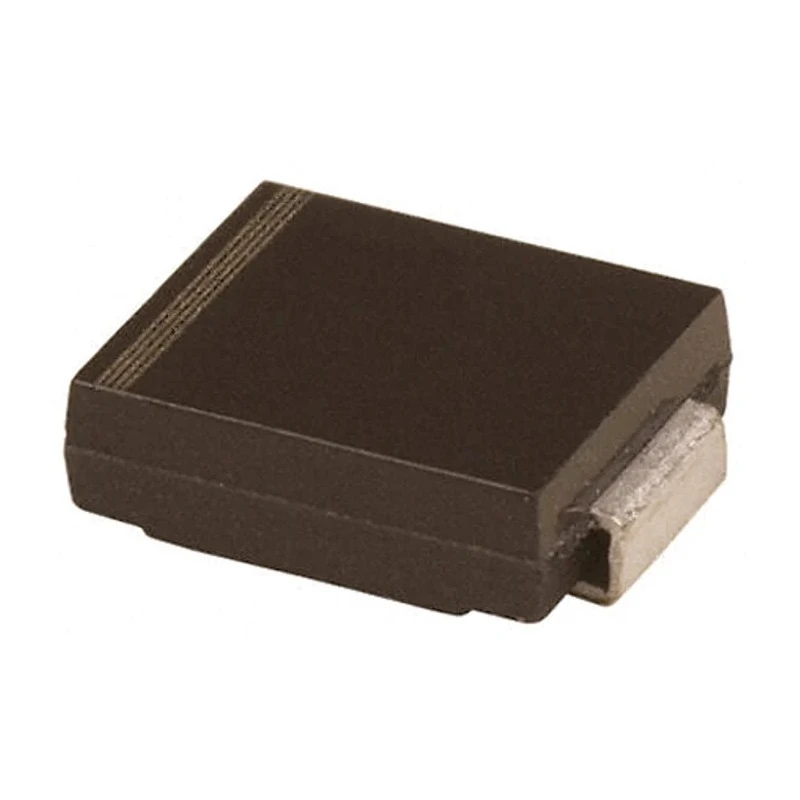

HY Electronic Corp 100 V 5 A Schottky Barrier Rectifier Diode Surface Mount DO-214AB SS510

Free Delivery in India | Lowest Global Shipping Charges

HY Electronic Corp 100 V 5 A Schottky Barrier Rectifier Diode Surface Mount DO-214AB SS510

Name: HY Electronic Corp 100 V 5 A Schottky Barrier Rectifier Diode Surface Mount DO-214AB SS510
Brand: HY Electronic Corp
SKU: 389058
Price: 0.28 USD
Availability: InStock



Category Schottky Diode Brand HY Electronic Corp Condition New

Specifications

Country of Origin	China
Brand	HY Electronic Corp
Height	2.41mm
Length	7.11mm
Model	SS510
Width	6.22mm
Mount Type	Surface
Series	FBI
Maximum Operating Temperature	150°C
Package Type	DO-214AB (SMC)
Minimum Operating Temperature	-55°C
Polarity	indicated by cathode band
Pin Count	2
Maximum Continuous Forward Current If	5A
Peak Reverse Repetitive Voltage Vrrm	100V
Diode Configuration	Single
Rectifier Type	Schottky
Peak Reverse Current Ir	50mA
Peak Non-Repetitive Forward Surge Current Ifsm	150A
Maximum Forward Voltage Vf	850mV
Moulded Plastic Case (Plastic	flammability classification UL 94V-0)

Key Features

Features a DO-214AB (SMC) molded plastic case with UL 94V-0 flammability classification.
Single diode configuration with 2 pins designed for surface mounting applications.
Maximum forward voltage drop of 850 mV ensures low power dissipation.
Operates reliably within temperature range from -55°C to 150°C.
Peak non-repetitive forward surge current rated at 150 A.
Peak reverse current limited to 50 mA for high efficiency.
Metal-semiconductor junction with epitaxial construction for enhanced performance.
Polarity identification is clearly marked by a cathode band.

Product Description

HY Electronic Corp SS510 Schottky Barrier Rectifier Diode is a robust surface mount semiconductor designed for rectification with a peak reverse voltage of 100 V and continuous forward current rating of 5 A. This component is housed in a DO-214AB (SMC) molded plastic package, featuring UL 94V-0 flammability classification, ensuring safety and durability in industrial and automotive environments.

Its Schottky diode configuration with metal-semiconductor junction and epitaxial construction provides a low forward voltage drop of 850 mV, minimizing power losses during operation. The diode maintains reliable performance across a wide temperature range from -55°C to 150°C and withstands peak non-repetitive forward surge currents up to 150 A, suitable for transient load conditions.

Designed with a simple 2-pin surface mount layout, polarity is clearly indicated by a cathode band to prevent installation errors. This diode excels in applications such as free-wheeling circuits, inverters, and polarity protection, making it essential for industrial, automotive, manufacturing, and power management systems.

The peak reverse current rating is 50 mA, maintaining high efficiency and stability under rated conditions. This product is manufactured in China and supplied in reels, facilitating smooth automated placement in production lines to improve assembly efficiency.

DO-214AB (SMC) molded plastic package with flammability classification UL 94V-0. Maximum continuous forward current of 5 A and peak reverse voltage of 100 V. Low forward voltage drop of 850 mV for enhanced energy efficiency.

Wide operating temperature range from -55°C to 150°C. Peak non-repetitive forward surge current of 150 A for transient protection. Polarity band marking for correct installation. Metal-semiconductor junction with epitaxial construction.

Ideal for automotive, industrial, inverter, and power management applications. Supplied on reels for efficient automated pick-and-place assembly.
