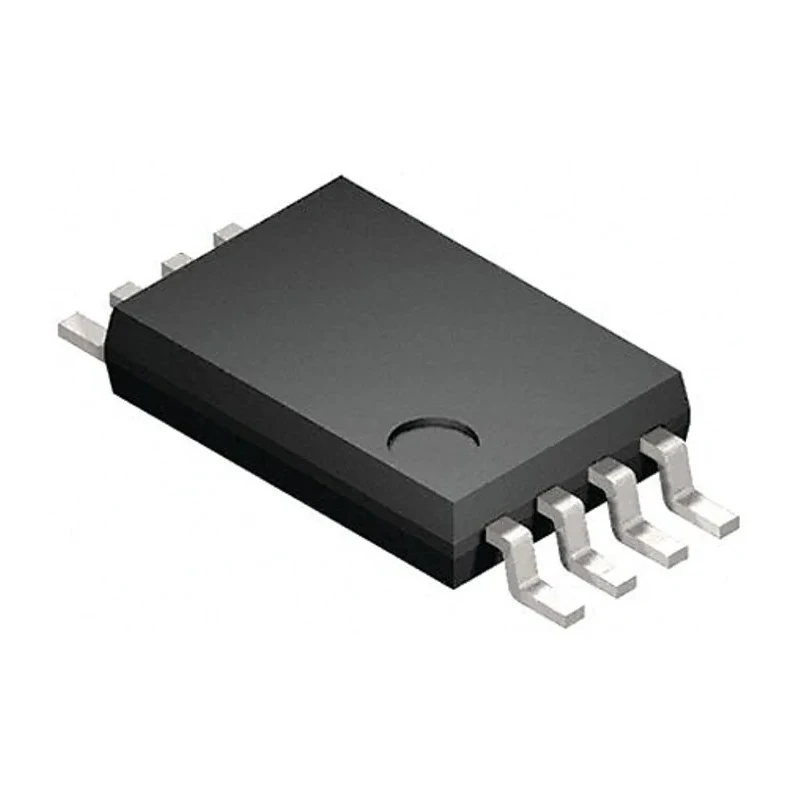

onsemi Logic Level Translator MC100EPT21DTG Translator 2 LVPECL/LVDS/CML to LVTTL/LVCMOS, 8-Pin TSSOP
Specifications
| Country of Origin | India |
|---|---|
| Brand | onsemi |
| Height | 950μm |
| Length | 3.1mm |
| Model | MC100EPT21DTG |
| Mount Type | Surface |
| Output type | LVCMOS/LVTTL |
| Series | MC100EPT2 |
| Maximum Operating Temperature | 85°C |
| Package Type | TSSOP |
| Minimum Operating Temperature | -40°C |
| Pin Count | 8 |
| Number of Elements per Chip | 2 |
| Maximum Supply Voltage | 3.6V |
| Logic Family | ECL |
| Logic Function | Translator |
| Minimum Supply Voltage | 3V |
| Maximum High Level Output Current | -3mA |
| Maximum Propagation Delay Time @ CL | 2ns |
| Direction Type | Uni-Directional |
| Maximum Low Level Output Current | 24mA |
| Translation | LVPECL/LVDS/CML to LVTTL/LVCMOS |
Key Features
- This device features a maximum propagation delay of 2 nanoseconds at CL.
- It supports a minimum supply voltage of 3 volts and a maximum of 3.6 volts.
- Maximum low-level output current is rated at 24mA with high-level output current at -3mA.
- Designed for surface mounting, it includes two elements per chip for efficient logic translation.
- Operating temperature ranges from -40°C to 85°C, suitable for a wide range of industrial applications.
- The compact 8-pin TSSOP package measures 3.1mm in length and 950μm in height.
- It provides reliable logic level translation compatible with ECL logic family signals.
- Supports efficient and reliable logic level shifting between multiple signal standards.
Product Description
onsemi MC100EPT21DTG is a high-performance Logic Level Translator designed for uni-directional translation of differential ECL logic standards including LVPECL, LVDS, and CML to standard LVTTL and LVCMOS output levels. Packaged in a compact 8-pin TSSOP surface mount configuration, this device is optimized for modern electronic and semiconductor applications.
The translator features a maximum propagation delay of 2 nanoseconds at the specified load capacitance, ensuring fast signal translation critical for high-speed digital circuits. It operates at a minimum supply voltage of 3 volts, with a maximum of 3.6 volts, and supports output currents of up to 24mA for low-level signals and -3mA for high-level signals, maintaining signal integrity across various load conditions.
With a broad operating temperature range from -40°C to 85°C, the MC100EPT21DTG ensures performance under diverse environmental conditions typical in industrial, automotive, and commercial electronics manufacturing sectors.
The device is part of the MC100EPT2 series and does not conform to automotive standards or specific approvals, which may be relevant for applications requiring certification compliance.
Key applications include integration in semiconductor devices requiring differential to TTL/CMOS signal conversions such as in communication equipment, data networking hardware, and industrial control systems.
The surface-mount 8-pin TSSOP package dimensions of 3.1mm length and 950μm height facilitate easy PCB placement and high-density circuit board design. This translator supports efficient and reliable logic level shifting between multiple signal standards.
Compact package allows integration into space-constrained electronic assemblies. Wide temperature tolerance suits industrial and commercial electronics environments. Fast propagation delay is ideal for timing-critical applications.
Device enhances interoperability between different logic families in complex electronic systems. Explore the Electronics & Electricals categories for other semiconductor and translator IC options on EnvMart.
Explore more products in our Translator ICs category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum propagation delay of this model is 2 nanoseconds at the specified load capacitance.
It operates with a minimum supply voltage of 3 volts and a maximum of 3.6 volts.
This unit supports output types of LVCMOS and LVTTL.
The maximum low-level output current is rated at 24mA.
It has an operating temperature range from -40°C to 85°C.
This device includes two elements per chip for efficient logic translation.
The TSSOP package measures 3.1mm in length and 950μm in height.
It is compatible with ECL logic family signals, translating LVPECL, LVDS, and CML to LVTTL and LVCMOS levels.
This model is designed for uni-directional translation of signals.
The maximum high-level output current is rated at -3mA.
It is suitable for applications such as communication equipment, data networking hardware, and industrial control systems.
The MC100EPT21DTG is manufactured in India.
