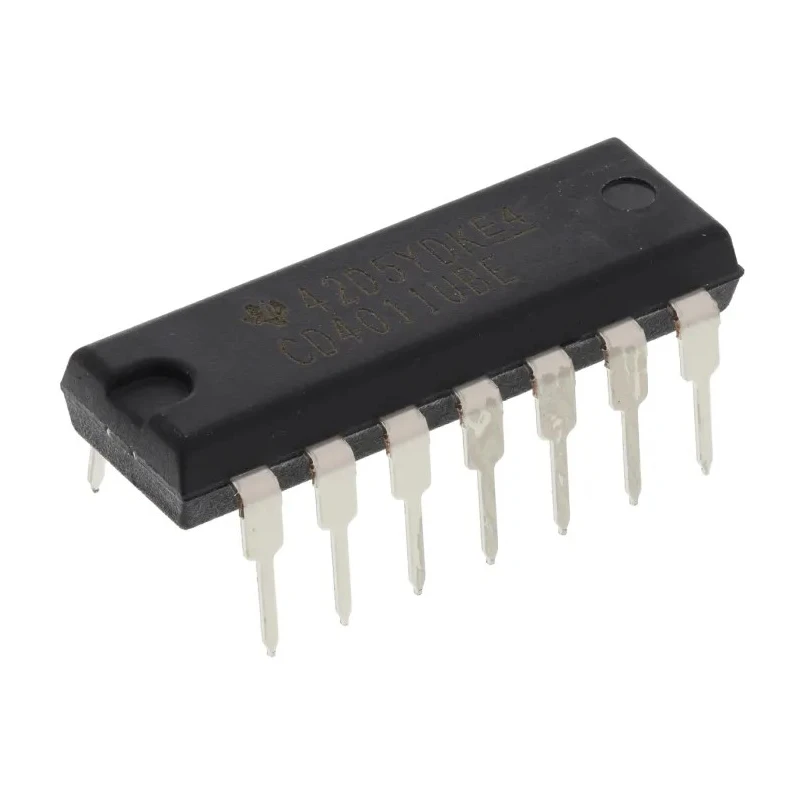

Texas Instruments 4 2-Input NAND Logic Gate, 14-Pin PDIP CD4011UBE

Texas Instruments CD4011UBE is a 4 2-input NAND logic gate integrated circuit housed in a 14-pin PDIP package. It belongs to the CMOS 4000 logic family and is widely used in industrial, laboratory, electronic, and educational applications requiring reliable NAND gate logic functions. This device supports through-hole mounting which is suitable for prototyping and general PCB designs.

The chip operates with a wide supply voltage range of 3V to 18V, making it compatible with a variety of power supply designs. Operating temperatures range from -55°C to 125°C, lending it thermal resilience for harsh environments. Featuring a maximum propagation delay of 50ns at typical load conditions, it meets the demands of fast switching in digital circuits.

Its 4 NAND gates each have 2 inputs, enabling multiple logic operations within a single package. The CMOS input type ensures low power consumption and enhanced noise immunity. Output currents are specified as -4.2mA for high-level and 4.2mA for low-level conditions, suitable for driving subsequent logic stages.

This logical IC is ideal for applications in embedded systems, signal processing, data bus control, and digital logic designs. The device complies with standard requirements but does not carry specific industrial certifications. The 14-pin PDIP form factor is a commonly used package in both prototype and production circuits.

Equipped with four independent 2-input NAND gates. Standard 14-pin PDIP package for through-hole installation. Wide operating voltage range from 3V to 18V. Fast switching with maximum propagation delay time 50ns. High temperature tolerance from -55°C to 125°C.

CMOS input type ensuring low power consumption. Compatible with other 4000 Logic Family devices. Suitable for industrial, lab, and educational electronic circuit applications.
