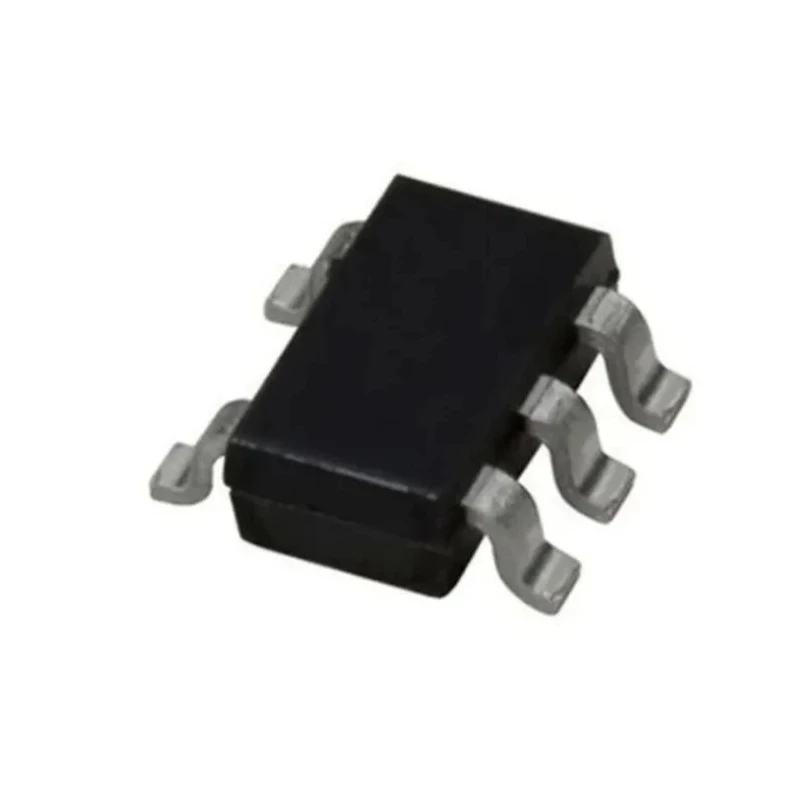

DiodesZetex 1 1-Input Buffer Schmitt Trigger Input Logic Gate, 5-Pin SOT-25, Surface Mount, Automotive 74LVC1G17QW5-7

DiodesZetex 74LVC1G17QW5-7 is a high-performance single 1-input buffer Schmitt trigger logic gate optimized for automotive and industrial electronic applications. Packaged in a miniature 5-pin SOT-25 surface mount device, this logic gate offers robust performance with wide operating temperature capability from -40°C to +125°C.

The device operates from a wide supply voltage range between 1.65 volts and 5.5 volts making it versatile for various low-voltage logic circuits. The CMOS input integrates a Schmitt trigger, enhancing input noise immunity and ensuring clean, stable switching. Outputs employ a push-pull configuration allowing it to drive loads up to ±32 milliamps for effective signal transmission.

With a maximum propagation delay of 6.5 nanoseconds under specified load conditions, the 74LVC1G17QW5-7 enables rapid logic transitions ensuring timely circuit response. This device complies with the stringent AEC-Q100 automotive standards making it suitable for critical automotive electronics.

The compact SOT-25 package with dimensions of 3.1mm length and 1.15mm height supports high-density PCB designs. Its surface mount technology enables automated assembly and reduced board space requirements.

Schmitt trigger input enhances signal integrity by filtering noise. Single gate per device allows precise logic control in circuit design. Push-pull output drives loads efficiently up to ±32mA. Wide ambient operating range from -40°C to +125°C.

Qualified for automotive use per AEC-Q100 standard. Small, surface mount SOT-25 package supports compact electronics. Low supply voltage operation from 1.65V to 5.5V. Fast maximum propagation delay of 6.5ns at standard test conditions.

Ideal for automotive, industrial, and embedded electronic applications.

This Logic Gate is designed for use in electronic systems requiring dependable buffer functionality with added noise immunity and automotive-grade reliability. It finds applications in automotive control units, industrial automation systems, and consumer electronics where robust single input buffering is required. For more semiconductor solutions, explore the Electronics & Electricals section at EnvMart.
