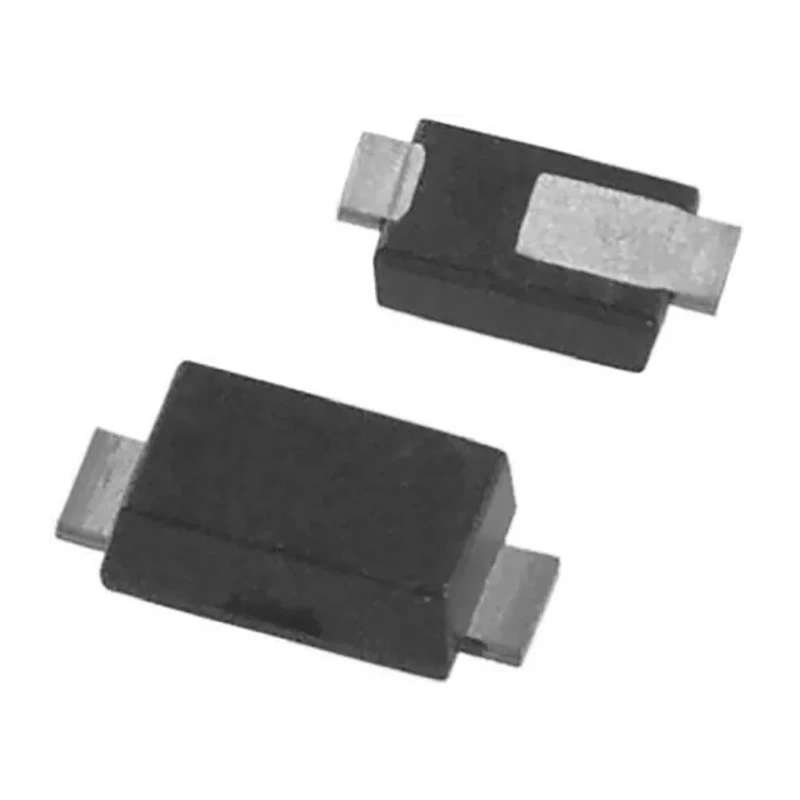

DiodesZetex 150 mA Constant Current Diode 2-Pin Surface Mount PDI123 Package AL5809-120QP1-7
Specifications
| Country of Origin | India |
|---|---|
| Accuracy | ±5 % |
| Brand | DiodesZetex |
| Height | 1mm |
| Length | 3mm |
| Model | AL5809-120QP1-7 |
| Mount Type | Surface |
| Series | AL5809 |
| Maximum Operating Temperature | 150°C |
| Package Type | PDI123 |
| Sub Type | 2-Terminal Constant Current LED Driver |
| Minimum Operating Temperature | -40°C |
| Sensing Method | Low Side, High Side |
| Pin Count | 2 |
| Maximum Supply Voltage | 60V |
| Minimum Supply Voltage | 2.5V |
| Supply Current | 150mA |
Key Features
- Maintains a constant current of 150 mA to protect LED circuits effectively.
- Surface mount package PDI123 designed for ease of PCB assembly.
- Compatible with supply voltages between 2.5 V and 60 V.
- Offers ±5% accuracy ensuring reliable performance in electronic applications.
- Compact size with a length of 3 mm and height of 1 mm.
- Can operate within a wide temperature range from -40°C to 150°C.
- Utilizes sensing methods on both low and high sides for versatile circuit integration.
- Two-pin design simplifies device connections and board layout.
Product Description
DiodesZetex AL5809-120QP1-7 is a linear constant current diode optimized for driving low-current, high-brightness LEDs in electronic circuits. Designed for surface mount technology, this 2-pin device in the compact PDI123 package provides a stable 150 mA supply current, making it suitable for LED driver applications requiring precise current regulation.
This diode operates efficiently across a minimum supply voltage of 2.5 V to a maximum of 60 V, ensuring compatibility with a variety of power sources. Its ±5% accuracy and sensing on both low and high sides allow for flexible integration into different circuit configurations. The device's small dimensions - 3 mm in length and 1 mm in height - make it ideal for space-constrained applications in industrial electronics, LED lighting systems, and instrumentation.
The AL5809-120QP1-7 can withstand operating temperatures ranging from -40°C to 150°C, supporting robust performance in diverse environmental conditions including automotive and industrial settings, although it does not meet automotive-specific standards. This makes it useful for manufacturing, laboratory, and commercial electronics purposes that demand stable current delivery to LED loads.
Delivers constant current regulation for LED protection and efficient operation. Surface mount PDI123 package facilitates modern PCB assembly methods. Works reliably within a broad temperature and voltage operating range.
Ensures precision current delivery with ±5% tolerance. Compact form factor suitable for dense circuit boards. Applicable in industrial, laboratory, and commercial electronic applications.
This diode is part of the AL5809 series from DiodesZetex, combining simplicity and precision for LED driver solutions. Its easy integration and dependable performance make it an essential component for electronic product designers and manufacturers.
Explore more DiodesZetex semiconductor components and Constant Current Diodes in the Electronics & Electricals category at EnvMart for reliable electronic component sourcing.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model maintains a constant current of 150 mA, making it suitable for driving low-current, high-brightness LEDs.
It operates efficiently with supply voltages ranging from 2.5 V to 60 V, ensuring compatibility with various power sources.
The diode offers an accuracy of ±5%, ensuring reliable performance in electronic applications.
This model has a length of 3 mm and a height of 1 mm, making it compact for space-constrained applications.
It can operate within a wide temperature range from -40°C to 150°C, supporting diverse environmental conditions.
It utilizes sensing methods on both low and high sides, allowing for versatile circuit integration.
The diode is designed in a surface mount PDI123 package, which facilitates modern PCB assembly methods.
This model features a 2-pin design, simplifying device connections and board layout.
It is applicable in industrial, laboratory, and commercial electronic applications that require stable current delivery to LED loads.
This diode is part of the AL5809 series from DiodesZetex, optimized for LED driver solutions.
The AL5809-120QP1-7 is manufactured in India.
It is classified as a 2-Terminal Constant Current LED Driver, specifically designed for LED applications.
