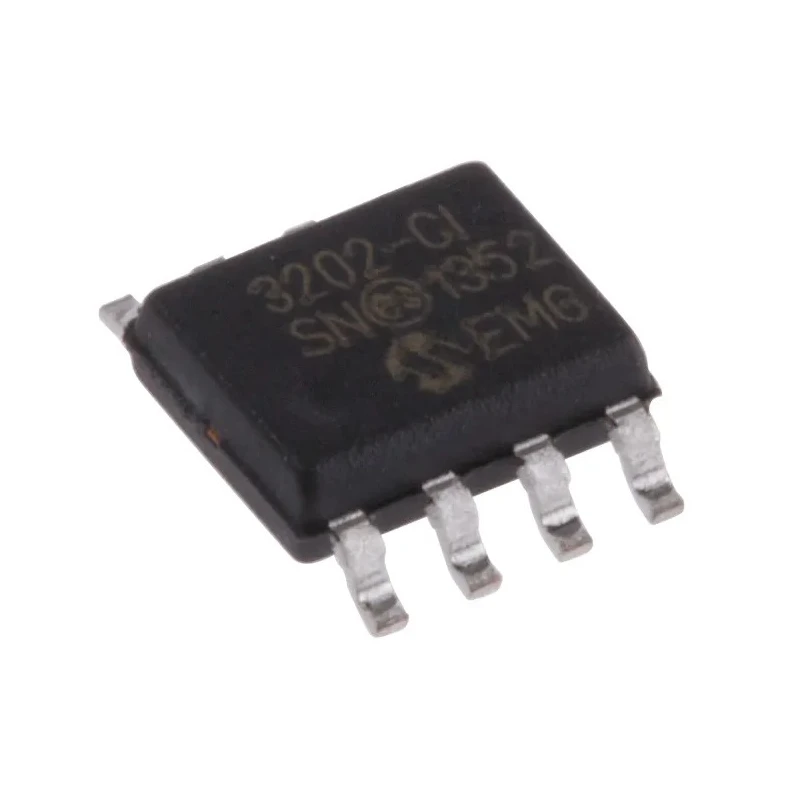

Microchip 2-Channel 12 bit Successive Approximation Register ADC 100 ksps, 8-Pin SOIC MCP3202-CI/SN
Specifications
| Country of Origin | India |
|---|---|
| Resolution | 12 bit |
| Brand | Microchip |
| Height | 1.44mm |
| Length | 5.01mm |
| Model | MCP3202-CI/SN |
| Mount Type | Surface |
| Sampling rate | 100ksps |
| Series | MCP3202 |
| Input Type | Voltage |
| Maximum Operating Temperature | 85°C |
| Package Type | SOIC |
| Minimum Operating Temperature | -40°C |
| Interface Type | SPI |
| Architecture | SAR |
| Pin Count | 8 |
| Automotive Standard | AEC-Q100 |
| Maximum Supply Voltage | 5.5V |
| Minimum Supply Voltage | 3.3V |
| Number of ADCs | 2 |
| Microchip 2 12 bit- ADC 100 ksps, 8-Pin PDIPBrand | Microchip |
Key Features
- Features a SAR architecture for efficient conversion performance.
- Provides dual ADC channels for multi-signal measurement.
- Operates at a sampling rate of 100 ksps ensuring fast data acquisition.
- Designed with 12-bit resolution for accurate digital output.
- Compatible with SPI interface for easy integration.
- Supports operating voltage range from 3.3V to 5.5V.
- Compact 8-pin SOIC surface mount package measuring 5.01mm x 1.44mm.
- Suitable for automotive applications compliant with AEC-Q100 standard.
Product Description
Microchip MCP3202-CI/SN is a high-performance 2-channel analogue to digital converter (ADC) utilizing successive approximation register (SAR) architecture. This 12-bit ADC is capable of sampling input signals at rates of up to 100 ksps, making it suitable for rapid data acquisition tasks. Packaged in a compact 8-Pin SOIC surface mount design with dimensions of 5.01mm length and 1.44mm height, this device integrates seamlessly into compact PCB layouts.
Operating voltage ranges from 3.3V to a maximum of 5.5V, allowing flexibility in power design. It communicates via SPI interface, widely supported in embedded systems for efficient digital data transfer. The MCP3202-CI/SN supports dual ADC channels, enabling measurement of multiple voltage signals simultaneously with 12-bit resolution accuracy.
The device is rated for operation across a temperature span from −40°C up to 85°C, making it reliable for automotive and industrial environments. The AEC-Q100 compliance further endorses its robustness for automotive electronics applications. Despite its small physical footprint, the ADC delivers industry-grade performance critical for precision measurement tasks in laboratory instrumentation, industrial control systems, and electronic component integration.
Utilizes SAR architecture for accurate conversion. Two ADC channels support multiple inputs. 100 ksps sampling rate for fast acquisition. 12-bit resolution ensures precise data. SPI interface for broad compatibility. Wide supply voltage range from 3.3V to 5.5V.
Compact 8-pin SOIC package. Automotive standard AEC-Q100 compliance. Operating temperature range from −40°C to 85°C. Ideal for industrial, automotive, and laboratory applications.
This analogue to digital converter is part of Microchip's MCP3202 series, designed to deliver efficient, precise conversion for a wide range of technical applications. Its combination of high sampling speed, dual channels, and rugged operating conditions makes it a versatile component for engineers designing embedded systems and instrumentation.
Explore more Analogue to Digital Converters and semiconductor components at EnvMart to find complementary parts and accessories for your electronic design projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The MCP3202-CI/SN has a maximum sampling rate of 100 ksps, allowing for fast data acquisition.
This model features a resolution of 12 bits, ensuring accurate digital output for measured signals.
It operates within a voltage range of 3.3V to 5.5V, providing flexibility for various power designs.
This unit supports dual ADC channels, enabling the measurement of multiple voltage signals simultaneously.
It utilizes an SPI interface, which is widely supported in embedded systems for efficient digital data transfer.
The device is packaged in an 8-pin SOIC format with dimensions of 5.01mm in length and 1.44mm in height.
The MCP3202-CI/SN operates across a temperature range from −40°C to 85°C, making it suitable for various environments.
Yes, it is compliant with the AEC-Q100 standard, which is important for automotive applications.
This model utilizes a successive approximation register (SAR) architecture for efficient conversion performance.
It accepts voltage as its input type, suitable for various measurement applications.
The device comes in a compact 8-pin SOIC surface mount package, ideal for space-constrained applications.
The MCP3202-CI/SN is manufactured in India.
