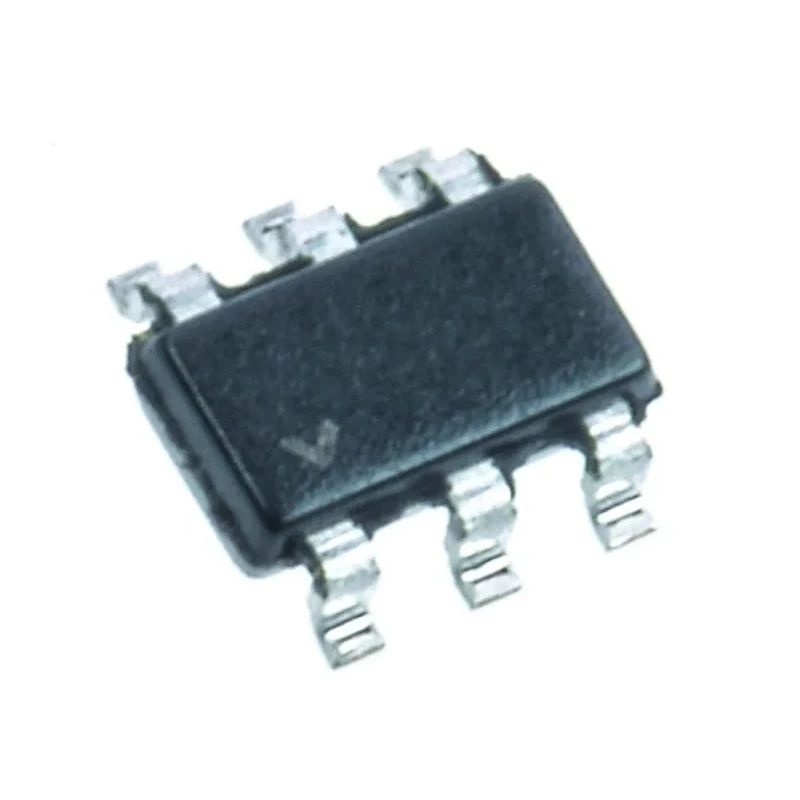

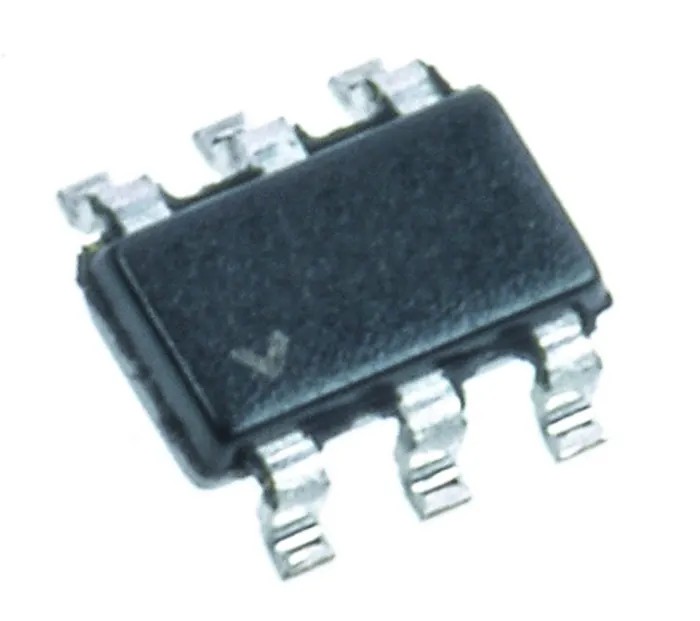

DiodesZetex 20 mA Constant Current Diode 6-Pin SOT-23 6V AP2502KTR-G1

Free Delivery in India | Lowest Global Shipping Charges

DiodesZetex 20 mA Constant Current Diode 6-Pin SOT-23 6V AP2502KTR-G1

Name: DiodesZetex 20 mA Constant Current Diode 6-Pin SOT-23 6V AP2502KTR-G1
Brand: DiodesZetex
SKU: 389372
Price: 0.25 USD
Availability: InStock



Category Constant Current Diode Brand DiodesZetex Condition New

Specifications

Country of Origin	China
Brand	DiodesZetex
Height	1.3mm
Length	3.02mm
Model	AP2502KTR-G1
Mount Type	Surface
Series	AP2502
Maximum Operating Temperature	85°C
Package Type	SOT-23
Sub Type	4-Channel Linear Constant Current Sink
Minimum Operating Temperature	-40°C
Pin Count	6
Maximum Supply Voltage	6V
Minimum Supply Voltage	2V
Supply Current	20mA

Key Features

Features 4-channel linear constant current sink for stable performance.
Surface mount package type SOT-23 with 6 pins for compact PCB integration.
Operating voltage range from 2 V minimum up to 6 V maximum.
Compact physical dimensions of 3.02 mm length and 1.3 mm height.
Wide operating temperature range from -40°C to 85°C ensuring reliability in varied environments.
Non-automotive standard component made in China for general electronic applications.
Suitable for use in electronic component, power and connector semiconductor circuits.
Designed to provide a precise 20 mA current sink, useful in LED driving and analog circuits.

Product Description

DiodesZetex AP2502KTR-G1 is a high-precision constant current diode featuring a 6-pin SOT-23 surface mount package. It is engineered to deliver a controlled current sink of 20 mA, operating reliably between 2 V and 6 V supply voltages. Its compact size with a length of 3.02 mm and height of 1.3 mm makes it ideal for integration into densely packed electronic assemblies.

Designed for discrete semiconductor applications, this 4-channel linear constant current sink provides stable current in electronic, power, and connector systems. The diode operates effectively over a broad temperature range from -40°C to 85°C, making it suitable for industrial and commercial use where temperature resilience is critical.

This AP2502 series diode does not conform to automotive standards but remains a dependable choice for general-purpose constant current regulation in PCB designs. It is manufactured in China under the DiodesZetex brand, noted for quality semiconductor components.

Key applications include LED drive circuits, current regulation, and protecting sensitive semiconductor components by ensuring consistent current flow. The surface mount SOT-23 package supports automated assembly lines, enhancing manufacturing efficiency.

Features 4-channel linear constant current sink for stable performance. Surface mount package type SOT-23 with 6 pins for compact PCB integration. Operating voltage range from 2 V minimum up to 6 V maximum. Compact physical dimensions of 3.02 mm length and 1.3 mm height.

Wide operating temperature range from -40°C to 85°C ensuring reliability in varied environments. Non-automotive standard component made in China for general electronic applications. Suitable for use in electronic component, power and connector semiconductor circuits.

Designed to provide a precise 20 mA current sink, useful in LED driving and analog circuits. Explore more semiconductor products and reliable Constant Current Diode solutions with EnvMart's extensive electronics catalogue.
