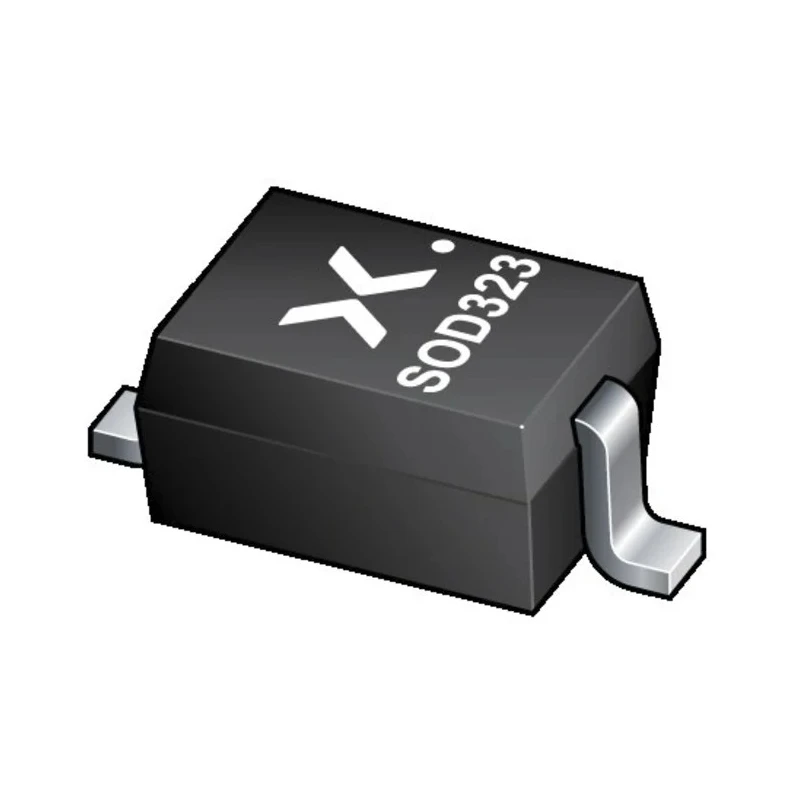

Nexperia Switching Diode Single 2-Pin Surface Mount SOD-323 250 mA 100 V BAS316,135

Free Delivery in India | Lowest Global Shipping Charges

Nexperia Switching Diode Single 2-Pin Surface Mount SOD-323 250 mA 100 V BAS316,135

Name: Nexperia Switching Diode Single 2-Pin Surface Mount SOD-323 250 mA 100 V BAS316,135
Brand: Nexperia
SKU: 100021
Price: 0.02 USD
Availability: InStock



Category Diodes Brand Nexperia Condition New

Specifications

Country of Origin	China
Brand	Nexperia
Height	1.1mm
Length	1.8mm
Model	BAS316,135
Width	1.35mm
Mount Type	Surface
Series	BAS316
Maximum Operating Temperature	150°C
Package Type	SOD-323
Sub Type	Switching Diode
Minimum Operating Temperature	-65°C
Pin Count	2
Automotive Standard	AEC-Q101
Maximum Power Dissipation Pd	400mW
Diode Configuration	Single
Peak Non-Repetitive Forward Surge Current Ifsm	4A
Maximum Forward Voltage Vf	1.25V
Peak Reverse Recovery Time trr	4ns
Maximum Forward Current If	250mA
Maximum Peak Reverse Repetitive Voltage Vrrm	100V
Reverse voltage	VR ≤ 100 V
Repetitive peak reverse voltage	VRRM ≤ 100 V
onsemi Switching Diode, Single, 200 mA, 2-Pin 100 V SOD-323Brand	onsemi

Key Features

This diode features high switching speed with a peak reverse recovery time of 4 nanoseconds.
The compact SOD-323 package measures 1.8mm length, 1.35mm width, and 1.1mm height ensuring space-saving surface mounting.
It supports a maximum power dissipation of 400 mW and a forward voltage up to 1.25 V.
The device operates reliably between -65°C and 150°C, suitable for industrial and automotive uses.
It meets automotive standard AEC-Q101 ensuring quality for automotive electronics applications.
The diode is designed for general-purpose and high-speed switching applications.
Its small dimensions and low capacitance make it ideal for compact electronic designs.

Product Description

Nexperia BAS316,135 is a high-speed switching diode configured as a single diode with two pins, ideal for switching electronic circuits. It comes in a compact SOD-323 surface-mounted package allowing for efficient board space utilization.

This diode supports a maximum forward current of 250 mA and can withstand repetitive peak reverse voltages up to 100 V, making it suitable for various general-purpose and high-speed switching applications in industrial, automotive, and consumer electronics.

The maximum power dissipation is rated at 400 mW, with forward voltage capped at 1.25 V, allowing for efficient energy handling and reduced power losses. It operates effectively over a wide temperature range from -65°C to 150°C, guaranteed to meet the stringent AEC-Q101 automotive quality standard. The peak reverse recovery time of 4 nanoseconds highlights the device's ability to switch quickly, essential for high-frequency circuits.

Its small form factor of 1.8 mm length, 1.35 mm width, and 1.1 mm height allows integration into space-sensitive designs. The diode’s low leakage current and low capacitance enhance circuit efficiency and performance.

High switching speed with trr ≤ 4 ns. Compact SOD-323 surface mount package. Maximum forward current of 250 mA. Repetitive peak reverse voltage up to 100 V. Operating temperature range from -65°C to 150°C. Automotive standard AEC-Q101 compliance.

Power dissipation of 400 mW.

This diode is suitable for use in a variety of applications including industrial electronics, automotive systems, and general electronic switching circuits. Its high-speed characteristics and compact size optimize circuit performance and reliability.

Explore more semiconductor components in the EnvMart Electronics & Electricals category for similar high-quality switching Diodes and electronic components.
